Eliwell ID 985 LX User Manual

ID 985/S/E/CK - ID985/E LX 13/14

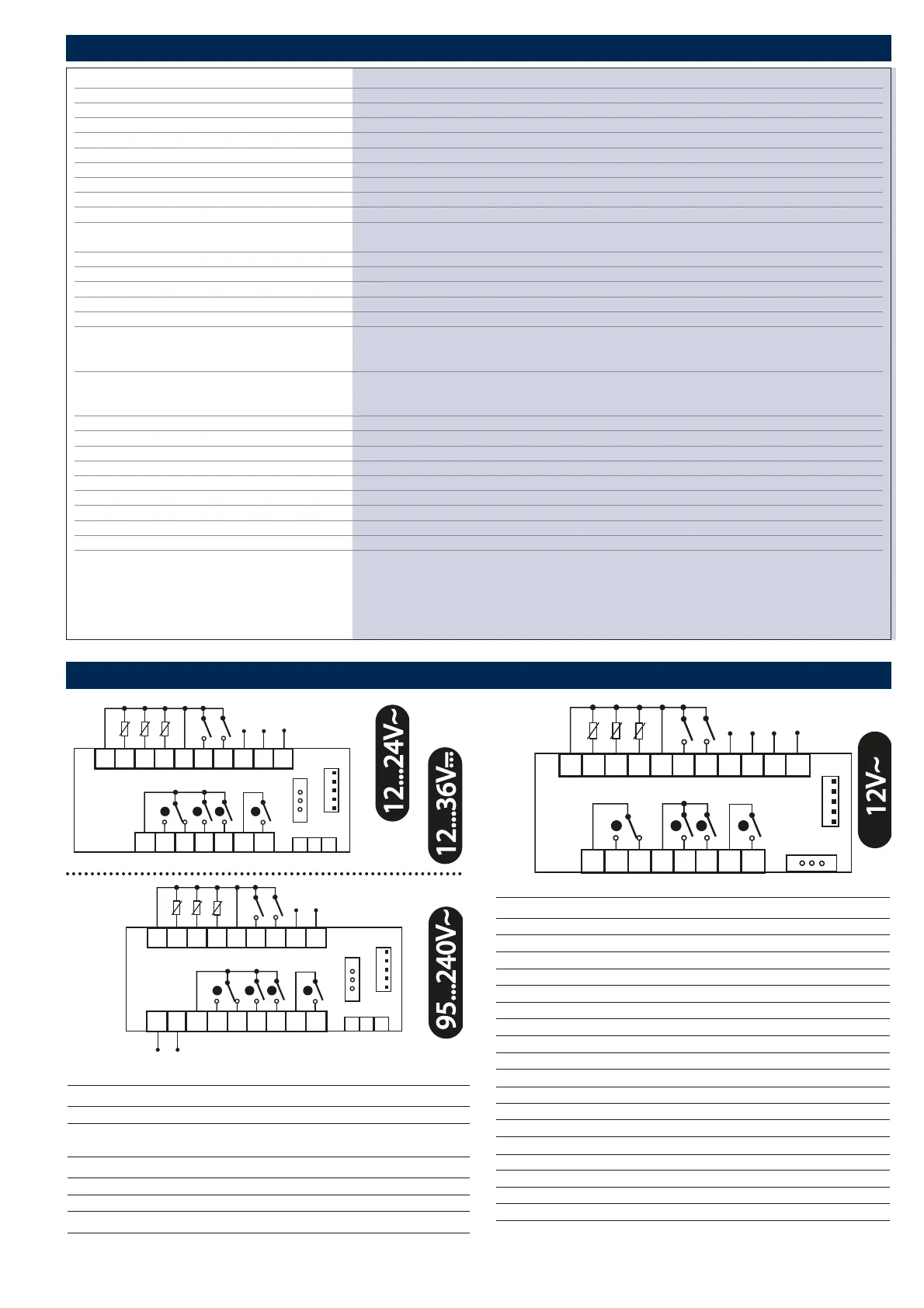

TECHNICAL DATA ID 985/S/E/CK - ID 985/E LX - ECHO
Front protection
Casing
Dimensions ID985/S/E/CK - ID985/E LX
Dimensions ECHO
Mounting ID985/S/E/CK - ID985/E LX
Mounting ECHO
Operating temperature
Storage temperature
Usage ambient humidity
Storage ambient humidity
Display range
Analogue inputs
Digital inputs
Serial ID985/S/E/CK - ID985/E LX
Serial ID985/E LX
Serial ECHO
Digital outputs
ID985/S/E/CK
ID985/E LX
Buzzer
Measurement range
Accuracy
Resolution
Consumption ID985/S/E/CK
ID985/E LX
Power supply ID985/S/E/CK
Power supply ID985/E LX
Power supply ECHO
Echo is supplied with a cable, lenght 2 m.
Can be extended up to 10 m.
Caution: check the power supply specified on the instrument label; for information on relay capacity and power supplies contact the Sales Office.
IP65.
PC+ABS UL94 V-0 resin plastic body, polycarbonate front, thermoplastic resin buttons.
front 74x32 mm, 60 mm depth.
front 48x28.6 mm, 15 mm depth.
on panel, with drilling template 71x29 mm (+0.2/-0.1 mm)
on panel, with drilling template 45.9x26.4 mm
-5…55 °C.
-30…85 °C.
10…90 % RH (non-condensing).
10…90% RH (non-condensing).
-50…110 (NTC); -55…140 (PTC) °C without decimal point (parameter selectable), on display 3 #
digits + sign.
three PTC or NTC inputs (parameter-selectable).
2 voltage-free parameter-configurable digital inputs.
RS485 for Televis connection - TTL for Copy Card connection.
TTL for Televis or Copy Card connection.
3-way connection (GND, DATI, 12V) on quick connection terminal block.
4 outputs on relays
• (A) SPDT 5(2)A 1/4 hp 250Va
• (B) (C) (D) SPST 3A 250Va
• (A) SPDT 8(3)A 1/2 hp 250Va
• (B) (C) SPST 8(3)A 1/2 hp 250Va
• (D) SPST 5(2)A 1/4 hp 250Va
if present
from -55 to 140 °C.
better than 0.5% of bottom scale +1 digit.
1 or 0.1 °C.
2.5W
3VA
12-24Va/12-36Vc ±10% or 95-240Va ±10%
12Va ±10% 50/60 Hz
from instrument it is connected to
1 2 3 4 5 6 7
8 9
10
+
14
15
16
17
18
19
20
A B C D
LINK POWER
SUPPLY
TTL
ECHO
GND
+
-
RS-485
-
LINK
Pb2 Pb1 Pb3
D.I.1
D.I.2
TERMINALS
1 - 2 Probe input 1 (thermostat control)
1 - 3 Probe input 2 (1st evaporator)
1 - 4 Probe input 3 (display or 2nd evaporator see par. H43)
TERMINALS ID 985/S/E/CK
5 - 6 Digital input 1
5 - 7 Digital input 2
TERMINALS ID 985/E LX
5 - 6 Digital input 2
5 - 7 Digital input 1
1 2 3 4 5 6 7
8 9
10
+
13
14
15
16
17
18
19
A B C D
LINK POWER
SUPPLY
TTL
ECHO
12
11
-
Pb2 Pb1 Pb3
D.I.2
D.I.1
ID 985/S/E/CK WIRING DIAGRAMS ID 985/E LX
1 2 3 4 5 6 7
8 9
+
14
15
16
17
18
19
20
A B C D
LINK
POWER SUPPLY
TTL
ECHO
GND
+
-
-
12 13
RS-485
Pb2 Pb1 Pb3
D.I.1
D.I.2
TERMINALS ID 985/S/E/CK
8 - 9 Link (voltage; 8=+, 9=-) *
8 - 1/5 Link (voltage; 8=+, 1=- or 5=-) **
12 - 13 Power supply *
9 - 10 Power supply **
14 - 15 - 16 NO relay output (A) (defrost default, par.H22)
14 - 17 NO relay output (B) (compressor default, par.H21)
14 - 18 NO relay output (C) (fans default, par.H23)
19 - 20 NO relay output (D) (alarm default, par.H24)
TTL TTL input for Copy Card
RS485 Serial for connection to Televis system
*version 95...240Va ** version 12...24Va/12..36Vc
TERMINALS ID 985/E LX
8 - 9 Link (voltage; 8=+, 9=-)
10 - 11 Power supply 12Va
12 - 13 -14 NC relay output (A) (defrost default, par.H22)
15 - 16 NO relay output (B) (compressor default, par.H21)
15 - 17 NO relay output (C) (fans default, par.H23)
18 - 19 NO relay output (D) (alarm default, par.H23)
TTL TTL input for Copy Card and for connection to Televis
system
