98764C (Rev. H - 06/16)
EZWSSM-1A, EZWSSMJO-2A, LZWSSM-1A, LZWSSMJO-2A
Page 2
B CA
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
A B C
Fig. 1

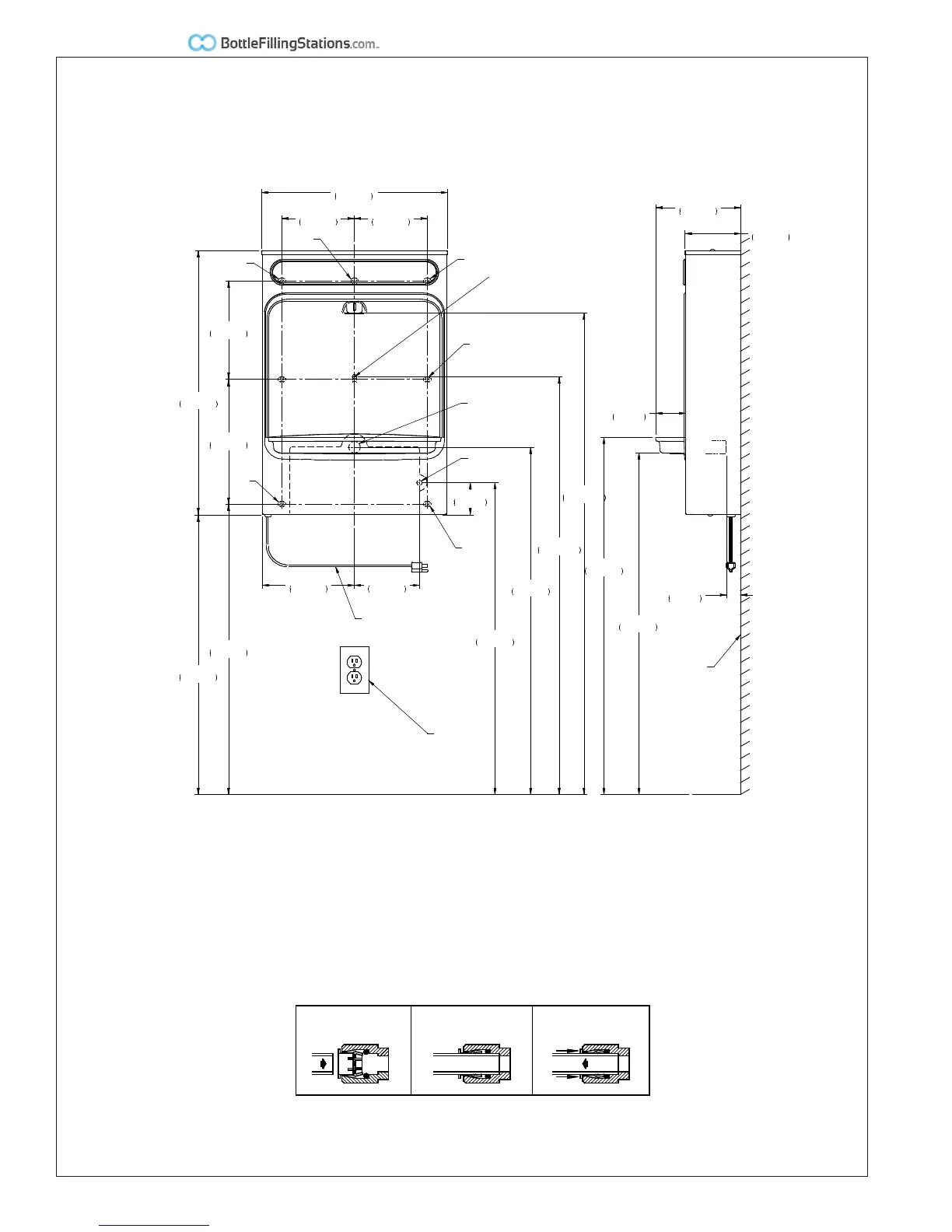

ROUGH-IN
EZWSSM, EZWSSMJO, LZWSSM, LZWSSMJO
LEGEND:
A = RECOMMENDED WATER SUPPLY LOCATION ; 1/2" IPS MAXIMUM PIPE SIZE. SERVICE STOP VALVE NOT FURNISHED.
B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4" O.D. MAXIMUM PIPE SIZE.
C = ELECTRICAL OUTLET, THREE (3) CONDUCTOR GROUNDED. LOCATE WITHIN SAFE REACH OF POWER CORD.
D = 7/16" X 3/4" OBROUND MOUNTING HOLES FOR FASTENING BACKPLATE TO WALL.
Fig. 2
27"
685mm
17 15/16"
455mm
25 7/16"
647mm
32 15/16"
837mm
34 7/16"
875mm
2 7/8"
73mm
5 3/8"
136mm
8 3/16"
208mm
46 7/16"
1179mm
30 1/16"
763mm
33 1/2"
850mm
3 1/16"
78mm
8 7/8"
225mm
6 1/4"
159mm
FINISHED FLOOR
FINISHED
WALL
28"
712mm
12"
305mm
A
B
C
120V POWERCORD
(18" MIN. LENGTH)
D
D
D
D
D
D OPTIONAL
(3 PL)
7"
178mm
7"
178mm
1 3/8"
35mm
9 1/2"
241mm
ACTIVATION
SENSOR
40 1/4"
1022mm
