Elkay ezH2O EZWSMD 1A Series User Manual

Page 3
EZWSMD*1A EZWSM8*1A EZWSM8*2A LZWSMD*1A LZWSM8*1A LZWSM8*2A
2000000485 (Rev. A - 01/22)

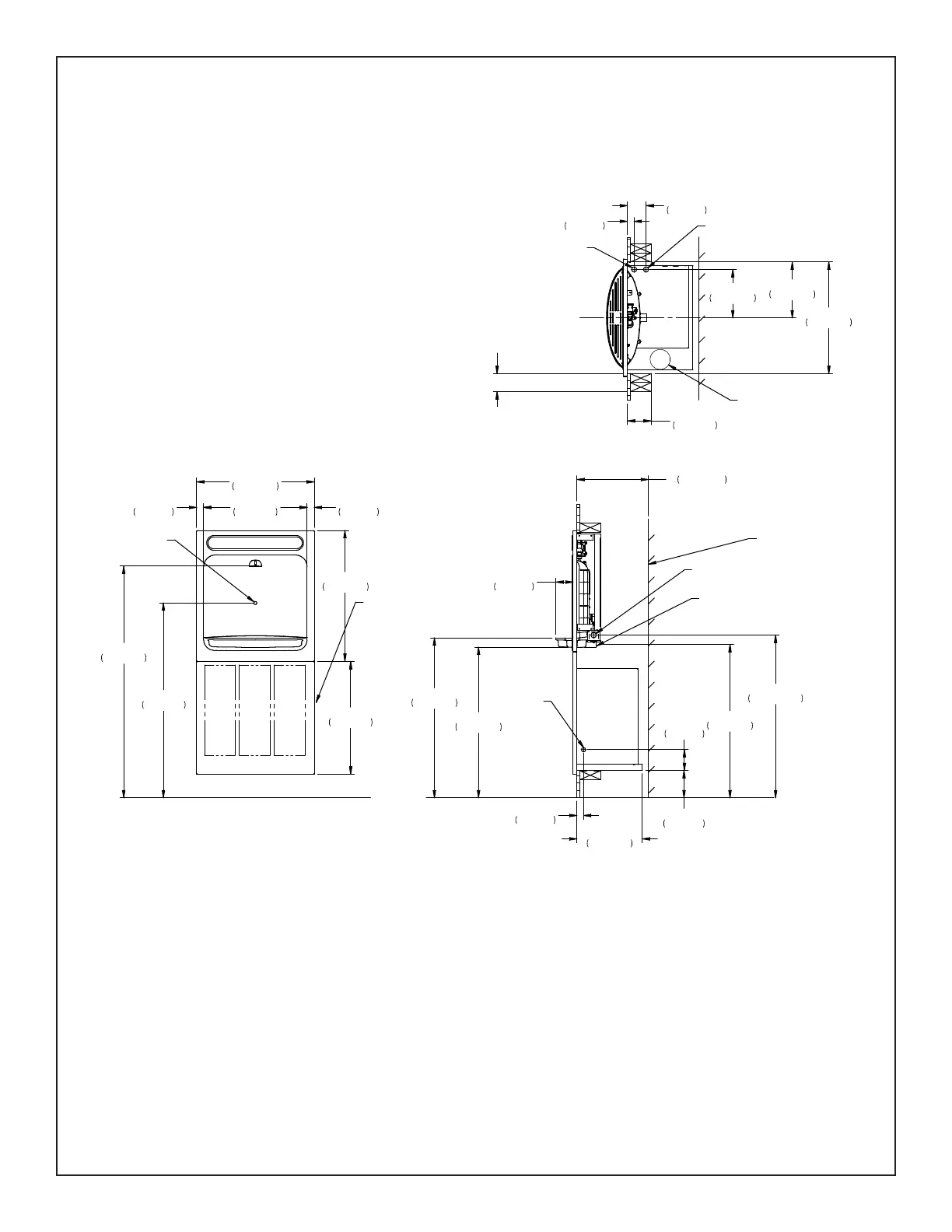

LZWSM8P*, LZWSMDP* EZWSM8P*, EZWSMDP* ROUGH-IN
Fig. 4
8 1/8"
206mm
9 3/8"
238mm
1 1/8"
29mm
3"
79mm
18 3/4"
476mm
4"
102mm
FILTER LOCATION
1/4" O.D. TUBE CONNECT
(CHILLER WATER OUTLET)
3/8" O.D. TUBE CONNECT
(CHILLER WATER INLET)
SHUT OFF VALVE BY OTHERS
BACK WALL LINE
FINISHED FLOOR
25 1/4"
642mm
27"
682mm
2 7/8"
73mm
25 7/8"
657mm
1-1/4" (32MM)
WASTE TUBE
FURNISHED
3 1/2"
89mm
4 1/2"
117mm
1 1/8"
29mm
11"
279mm
ELECTRICAL
INLET
FINISHED FLOOR
17 3/8"
441mm
1 3/16"
30mm
1 3/16"
30mm
19 3/4"
502mm
21 15/16"
557mm
38 7/8"
988mm
18 7/8"
481mm
DOUBLE STUD OR 3" (76mm)
BETWEEN MOUNTING FRAMES
IF PLACED NEXT TO ANOTHER
FOUNTAIN OR WALL.
ACTIVATION
SENSOR
32 11/16
831mm
NOTE: NON-REFRIGERATED
MODELS (WITHOUT CHILLER)
DO NOT INCLUDE LOUVERS
27 3/8"
693.74MM
8 203.2MM MINIMUM
FOR DRAIN CONNECTION
AND ACCESS TO
BOTTLE FILLER
ELECTRICALS
JUNCTION BOX
LOCATION

Elkay ezH2O EZWSMD 1A Series Specifications

General

Material	Stainless Steel
Bottle Filling Unit	Yes
ADA Compliant	Yes
Power	115V
Filtered	Yes
Model	EZWSMD 1A
Hot Water	No
Cold Water	Yes
Room Temperature Water	Yes
Power Source	Electric
Installation Type	Wall Mount
Product Type	Bottle Filling Station
Capacity	Not Applicable
Type	Bottle Filling Station & Water Cooler
Activation	Sensor (Bottle)
