Page 9
EZWSMD*1A EZWSM8*1A EZWSM8*2A LZWSMD*1A LZWSM8*1A LZWSM8*2A
2000000485 (Rev. A - 01/22)
1
Assembly
3/8”
Wa
Inlet

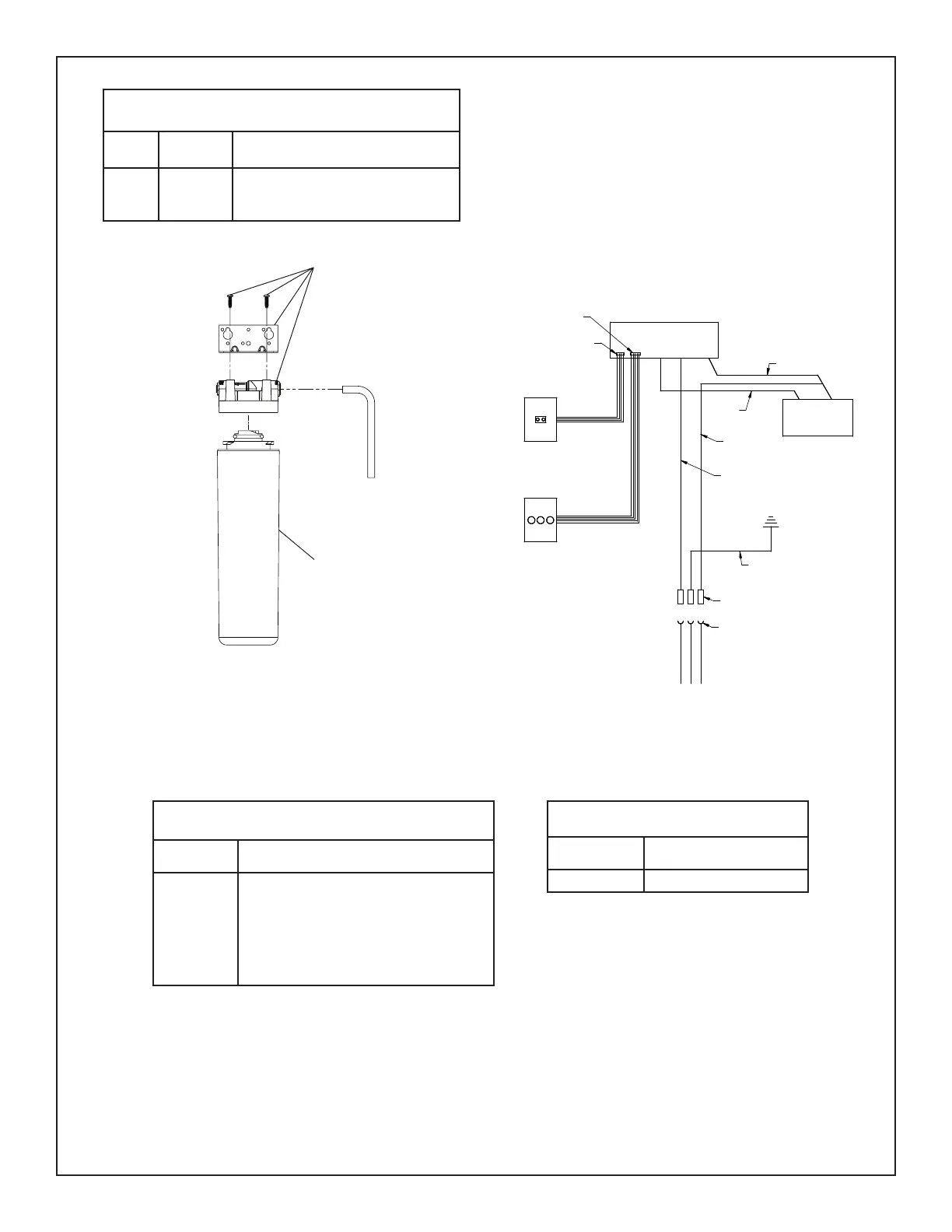

WATER FILTER EXPLODED VIEW
Fig. 7
PRINTED IN U.S.A.
IMPRESO EN LOS E.E.U.U.
IMPRIMÉ AUX É.-U.
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816
PARA PIEZAS, CONTACTE A SU DISTRIBUIDOR LOCAL O LLAME AL 1.800.834.4816
POUR OBTENIR DES PIÈCES, CONTACTEZ VOTRE DISTRIBUTEUR LOCAL OU COMPOSEZ LE 1.800.834.4816
ELKAY MANUFACTURING COMPANY • 1333 BUTTERFIELD ROAD • DOWNERS GROVE, IL 60515 • 630.574.8484 • www.elkay.com
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
NÚMERO GRATIS DE SERVICIO 1.800.260.6640
INFORMATIONS POUR LE SERVICE PAR NUMERO SANS FRAIS 1.800.260.6640
MAIN BOARD
.R. BOARD
ED BOARD
SOLENOID
GROUND
FOUR PIN
CONNECTOR
CONNECTOR
WHITE
WHITE
NEUTRAL
RED
GREEN GROUND
BLACK
LINE VOLTAGE
MALE
PLUG
FEMALE
RECEPTACLE
ELECTRICAL DIAGRAM
Fig. 8
REPLACEMENT PART KITS
PART NO. DESCRIPTION
98543C
98544C
2000000503
98546C
98549C
98631C
2000000502
Kit - Electrical Package
Kit - EE Sensor
Kit - Solenoid Valve Replacement
Kit - Aerator Replacement
Kit - Hardware & Waterway Parts
Kit - Electrical Package 220V
Kit - Solenoid Valve Replacement 220V
FILTER PARTS LIST
(See Fig. 7)
ITEM
NO.
PART NO. DESCRIPTION
1
2
51300C
51469C
Filter Assy-3000 Gal.
Assy-Filter & Brkt includes Fltr Head/
Mtg Brkt/John Guest Fittings/Screws
PARTS LIST
PART NO. DESCRIPTION
1000005855 115V Power Cord
