Elkay EZH2O Series User Manual

PAGE 6
4420DBBFFR_FTN LK4420DBBFFR_FTN
98880C (Rev. C - 12/15)
FIG. 5

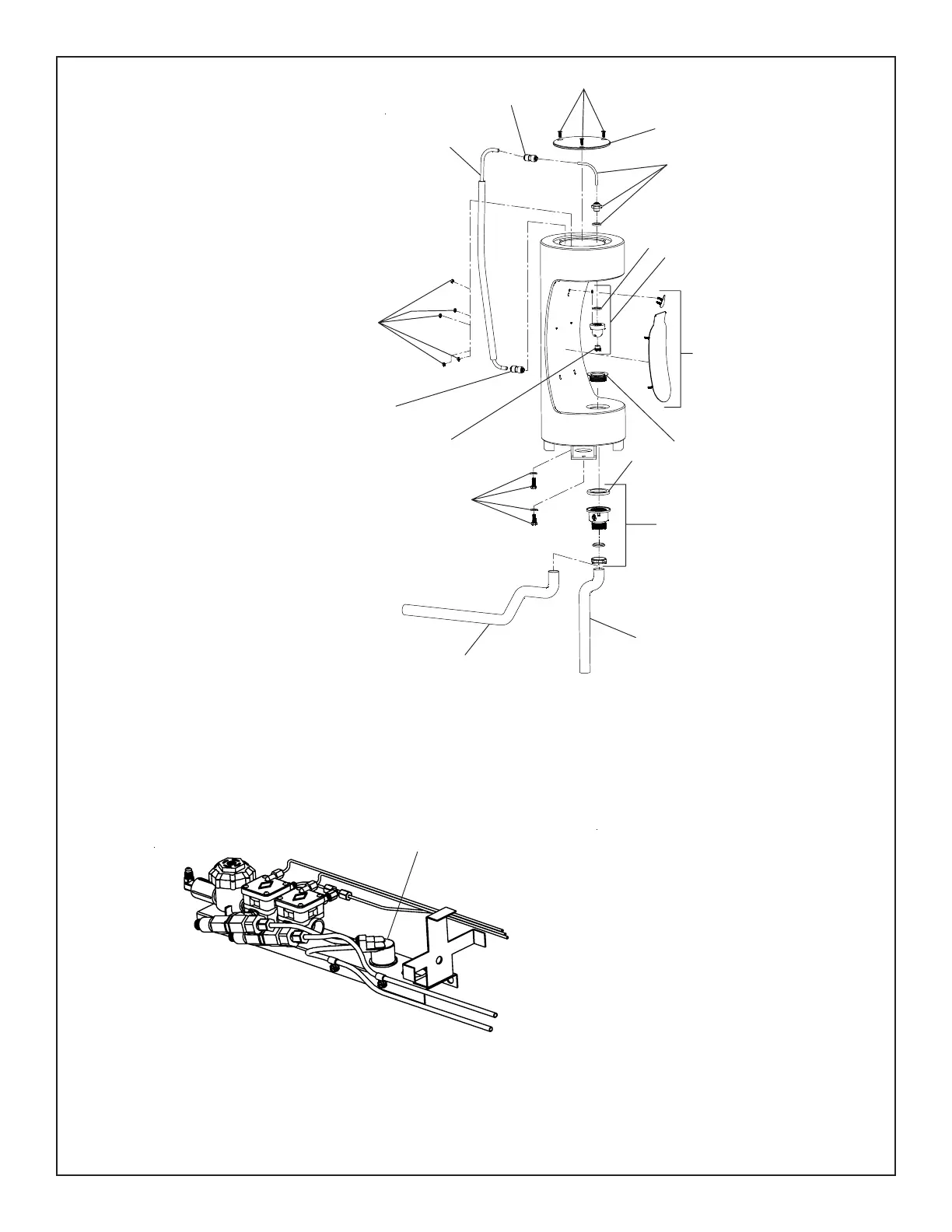

Dual Valve Assy. (Item 28) W/Regulator
P/N 98837C For use on models
4420BF1LDBFR and 4420BF1UDBFR
(Tubing Not Included)
ARM ONLY 11
10
20
22
14 & 22
14 & 23
23
14 & 23
22
2
23
18
16
8
17 & 29
15
FROM BELOW
9
ADJUST BUBBLER HEIGHT
15

Elkay EZH2O Series Specifications

General

ADA Compliant	Yes
Activation Method	Push Button
Rated for Outdoor Use	Yes
Bubbler Material	Stainless Steel
Material	Stainless Steel
Mounting Type	Wall Mount
