Owner’s Manual
For 8-speed hubs where the left-most number in the gear
indicator window is an 8:

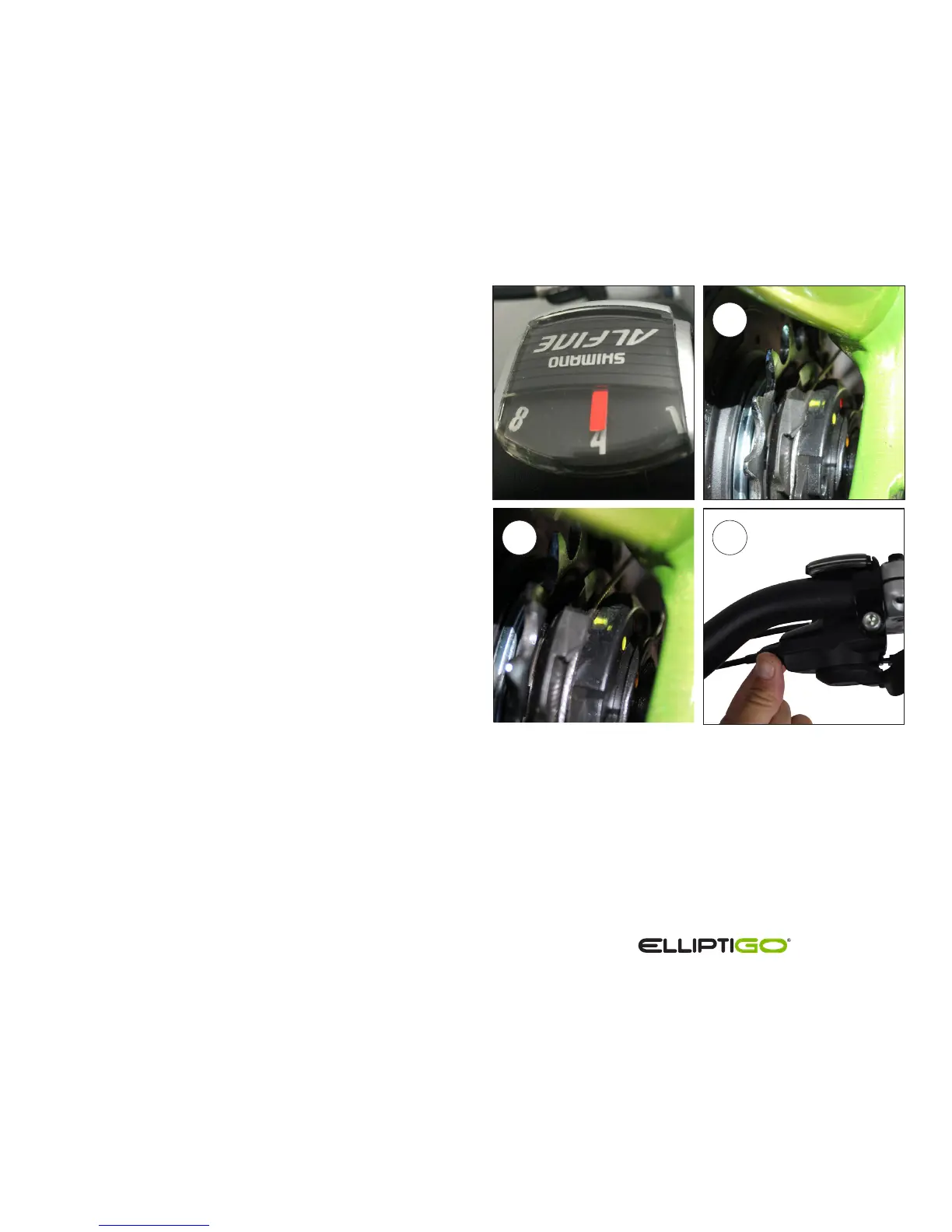

4b. Use the gear shifter to shift up into 8th gear and
then down into 4th gear. Move to rear of the bike
and find the small display window with the two
yellow lines. If the two yellow lines are aligned,
like in photo 4b then no further action is
needed. If they are not aligned, continue
with the alignment procedure set forth below.
5b. If the outside line is below the inside line, rotate the
barrel adjuster clockwise (forward towards the front
wheel) one full turn. Stand on the right side of
the bike facing towards the bike. If the outside
(away from the hub) line is above the inside
line, rotate the barrel adjuster on the handlebar
counterclockwhise (rearward towards the rear wheel)
heel) one full turn.
6b. Use the gear shifter to shift up to 8th gear and then
down into 4th gear.
7b. Check the alignment of the yellow lines. If they are
still not aligned, repeat steps 5-7 until they are
aligned.
4b
5b
5b
