Owner’s Manual

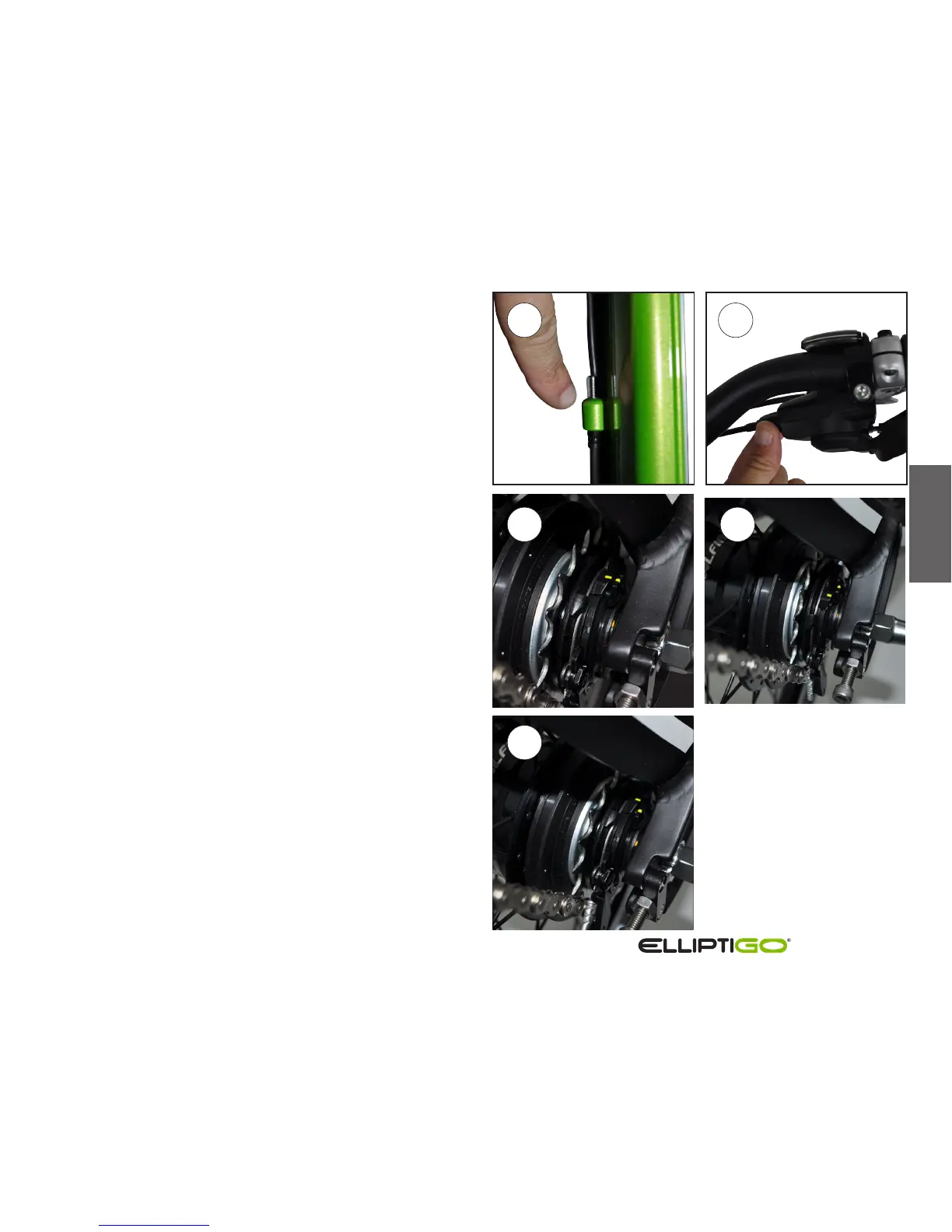

Adjusting the Internally-Geared Hub on the 11R Model
1. Place your bike on the kickstand.
2. Do a visual inspection of your shifter cable. Make
sure it is fully seated in the gear shift housing. Then
follow it through the frame to ensure it is not pinched
in the mudguard and is seated properly in the frame
bosses. Finally check to make sure it is seated correctly
in the hub cable arm that attaches to the hub.
3. Shift up to 11th gear then down to 6th gear.
4. Move to rear of your bike and check the alignment of
the two yellow lines by the hub. If they two lines are
aligned, like in photo 4, then no further action is needed.
5. Stand on the right side of the bike facing towards the
bike. If the outside (away from the hub) line is above
the inside line, rotate the barrel adjuster on the handlebar
counterclockwise (back towards the rear wheel) one full
turn. If the outside line is below the inside line, rotate
the barrel adjuster clockwise (forward towards the
front wheel) one full turn.
6. Use the gear shifter located to shift up to 11th gear and
then down into 6th gear.
7. Check the alignment of the yellow lines. If they are still
not aligned, repeat steps 5-7 until they are aligned.
2
4
II
2a
5b
5a
