Owner’s Manual
Adjusting the Stride Height on the Arc Model
The foot platform assembly on the Arc model has two adjustments. The
platform can be adjusted relative to the pivot axle and the pivot axle can
be adjusted relative to the drive arm. Not all combinations of foot platform
and pivot axle positions are compatible. For a list of what combinations will
work, see the Platform Positioning Chart below
WARNING! After making any adjustment to the foot platform or pivot
axle, always ensure that the new settings fall in an “OK” position on the
Foot Platform Positioning Chart below. If the new combination falls in a
red area, then DO NOT RIDE. Reset your positions such to place them in
an OK area on the chart. Riding with positions falling in a red area will
likely result in the foot platform striking the swing arm or frame during
riding, which could cause the rider to lose control and suer a fall.
The stride height for the Arc model is determined by the location of the
pivot axle on the drive arm. Moving the pivot axle rearward on the drive
arm increases the height component of the elliptical stride. Conversely,
moving the pivot axle forward on the drive arm decreases the height
component of the elliptical stride. Typically, taller riders will prefer more
stride height and shorter riders will prefer less.

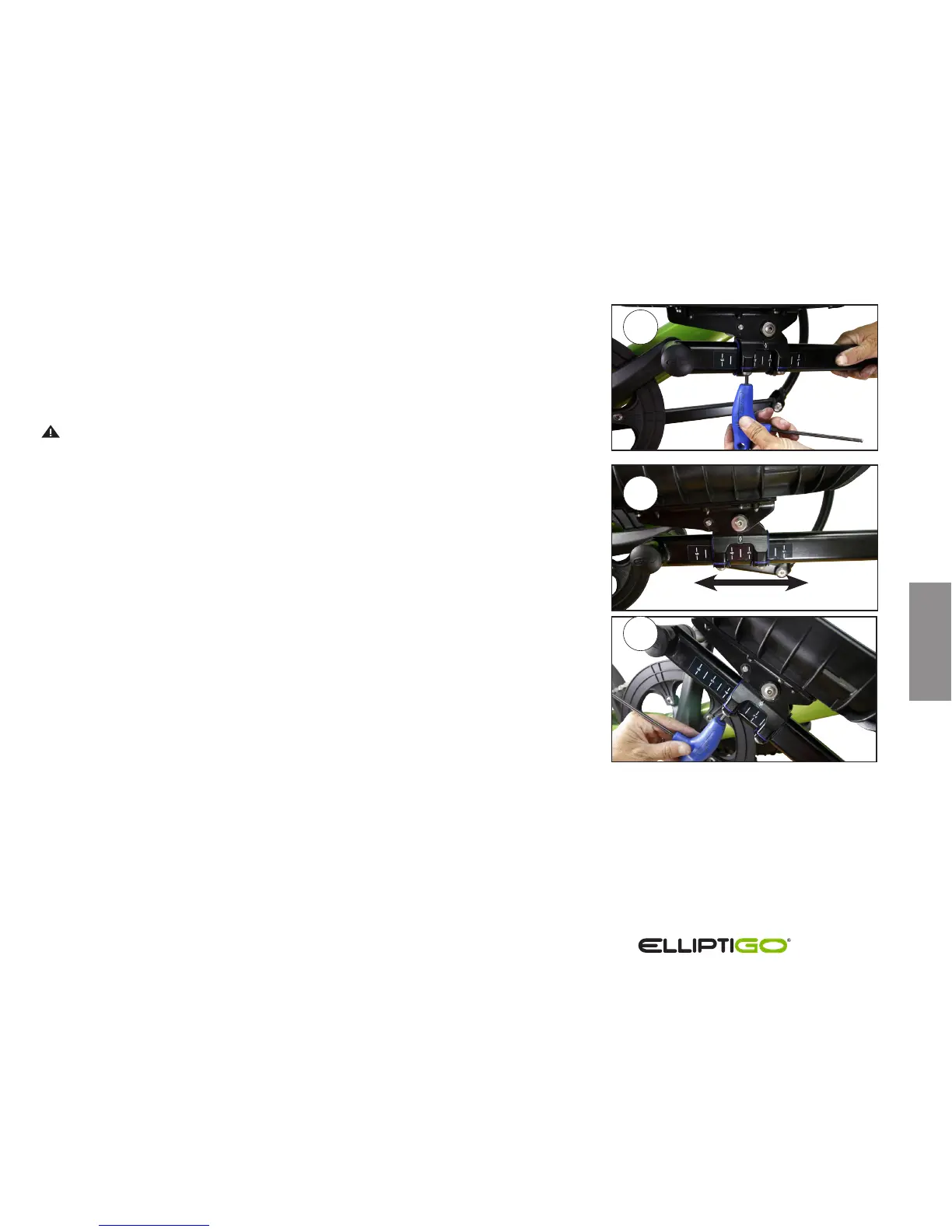

To adjust the pivot axle location, follow these steps:
1. Using a 4mm Allen wrench, loosen the four platform base bolts.
2. Slide the pivot bracket along the drive arm until you reach the desired
location.
3. Tighten the platform base bolts a little at a time until the bracket is
seated evenly against the drive arm, then tighten each bolt to 6-8 Nm.
Again, once you have set the new pivot axle location, check the Foot
Platform Positioning Chart on the next page to ensure that your bike is
safe to ride.
III
3
2
1
