ELNA 604E - Table of Contents

Dear Customer,
You have chosen an overlook sewing machine of the highest quality, which will
make your hours of sewing become hours of pleasure and relaxation.
We congratulate you on your choice and hope that it will give you lasting
satisfaction. Before you start to use your machine, please take a few minutes
to study this instruction manual. You will find that it will assist you in your
complete understanding of the functions and capabilities of your overlook
machine.
If you wish to obtain more information, please do not hesitate to contact your
dealer who is fully qualified to answer your questions. Furthermore, your
dealer should also be contacted for all technical interventions which are under
warranty. Thank you for choosing a 600 series overlooker.
Kindest regards,
The manufacturer
Household Overlook Sewing Machines
Models 624DSE, 614DE & 604E

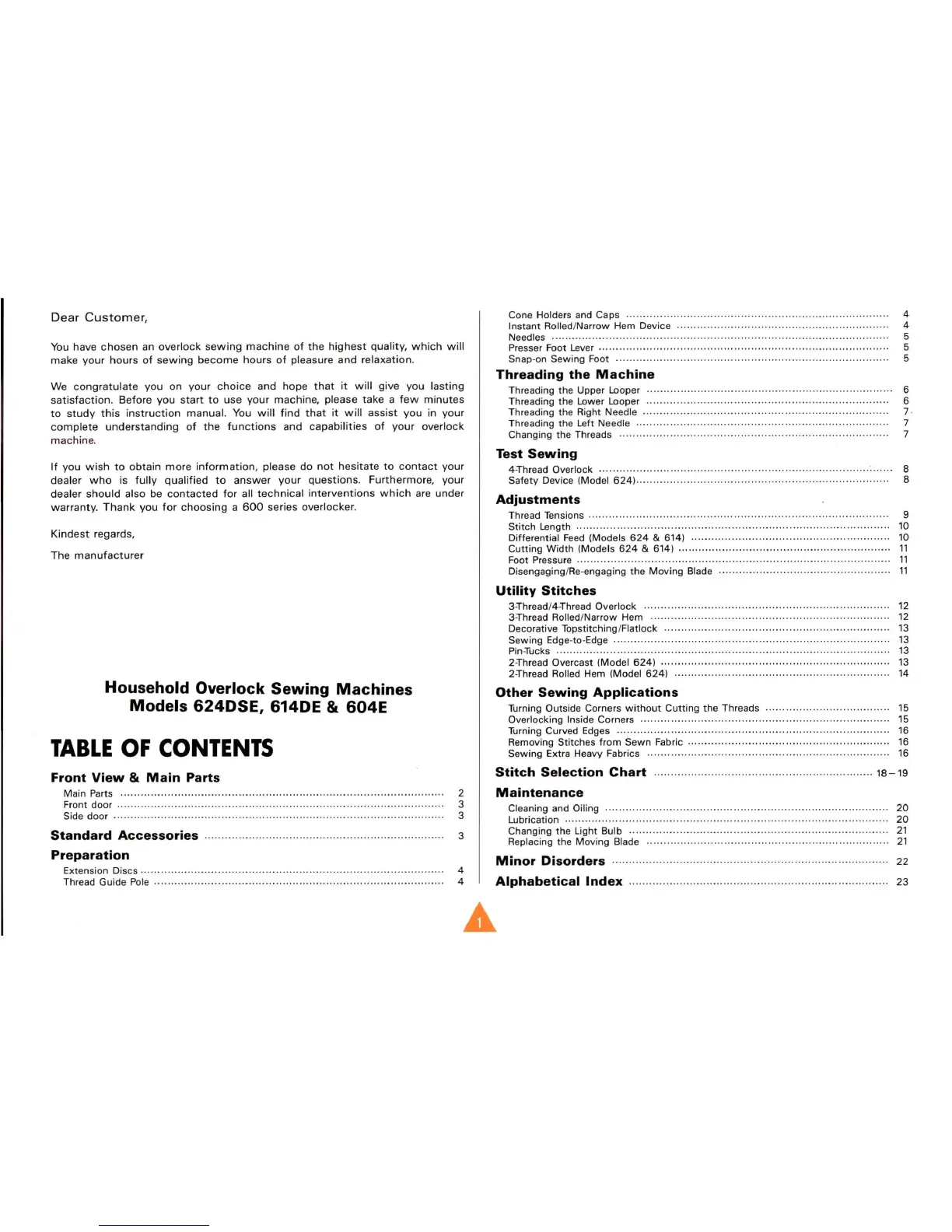

TABLE OF CONTENTS
Front View & Main Parts
Main Parts 2
Front door 3
Side door 3
Standard Accessories 3
Preparation
Extension Discs 4
Thread Guide Pole 4
Cone Holders and Caps 4
Instant Rolled/Narrow Hem Device 4
Needles 5
Presser Foot Lever 5
Snap-on Sewing Foot 5
Threading the Machine
Threading the Upper Looper 6
Threading the Lower Looper 6
Threading the Right Needle 7-
Threading the Left Needle 7
Changing the Threads 7
Test Sewing
4-Thread Overlook 8
Safety Device (Model 624) 8
Adjustments
Thread Tensions 9
Stitch Length 10
Differential Feed (Models 624 & 614) 10
Cutting Width (Models 624 & 614) 11
Foot Pressure 11
Disengaging/Re-engaging the Moving Blade 11
Utility Stitches
3-Thread/4-Thread Overlook 12
3-Thread Rolled/Narrow Hem 12
Decorative Topstitching/Flatlock 13
Sewing Edge-to-Edge 13
Pin-Tucks 13
2-Thread Overcast (Model 624) 13
2-Thread Rolled Hem (Model 624) 14
Other Sewing Applications
Turning Outside Corners without Cutting the Threads 15
Overlooking Inside Corners 15
Turning Curved Edges 16
Removing Stitches from Sewn Fabric 16
Sewing Extra Heavy Fabrics 16
Stitch Selection Chart 18-19
Maintenance
Cleaning and Oiling 20
Lubrication 20
Changing the Light Bulb 21
Replacing the Moving Blade 21
Minor Disorders 22
Alphabetical Index 23
