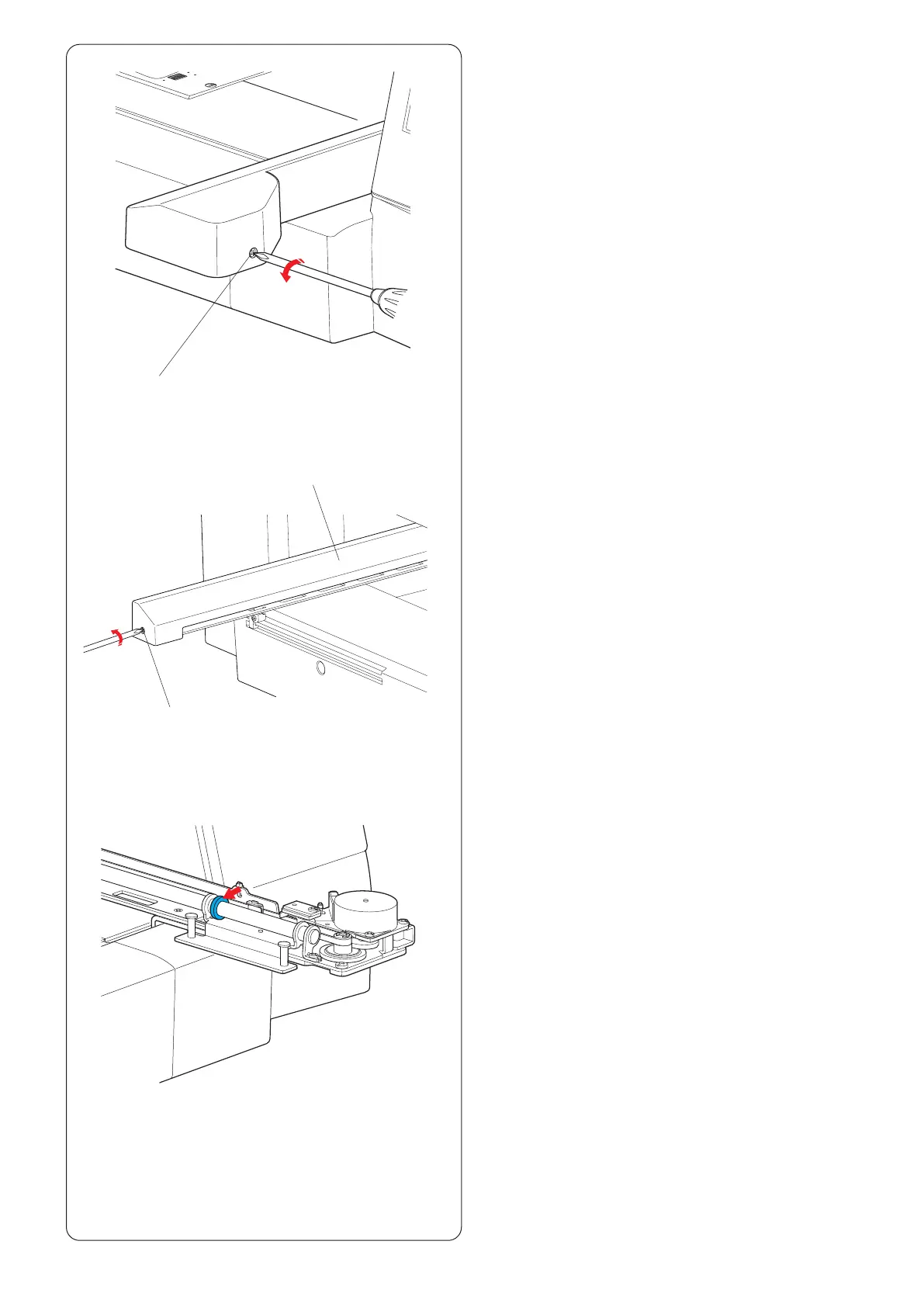

Oil the Y-carriage
z Remove the setscrew q.
q Setscrew
q
w
e
x Remove the setscrew w.
Remove the carriage cover e.
w Setscrew
e Carriage cover
c Oil the arrow point (felt) as indicated in the illustration.
To attach the carriage cover, follow the procedure z
to x in reverse.
