Elstat EMS-55-R User Manual

4

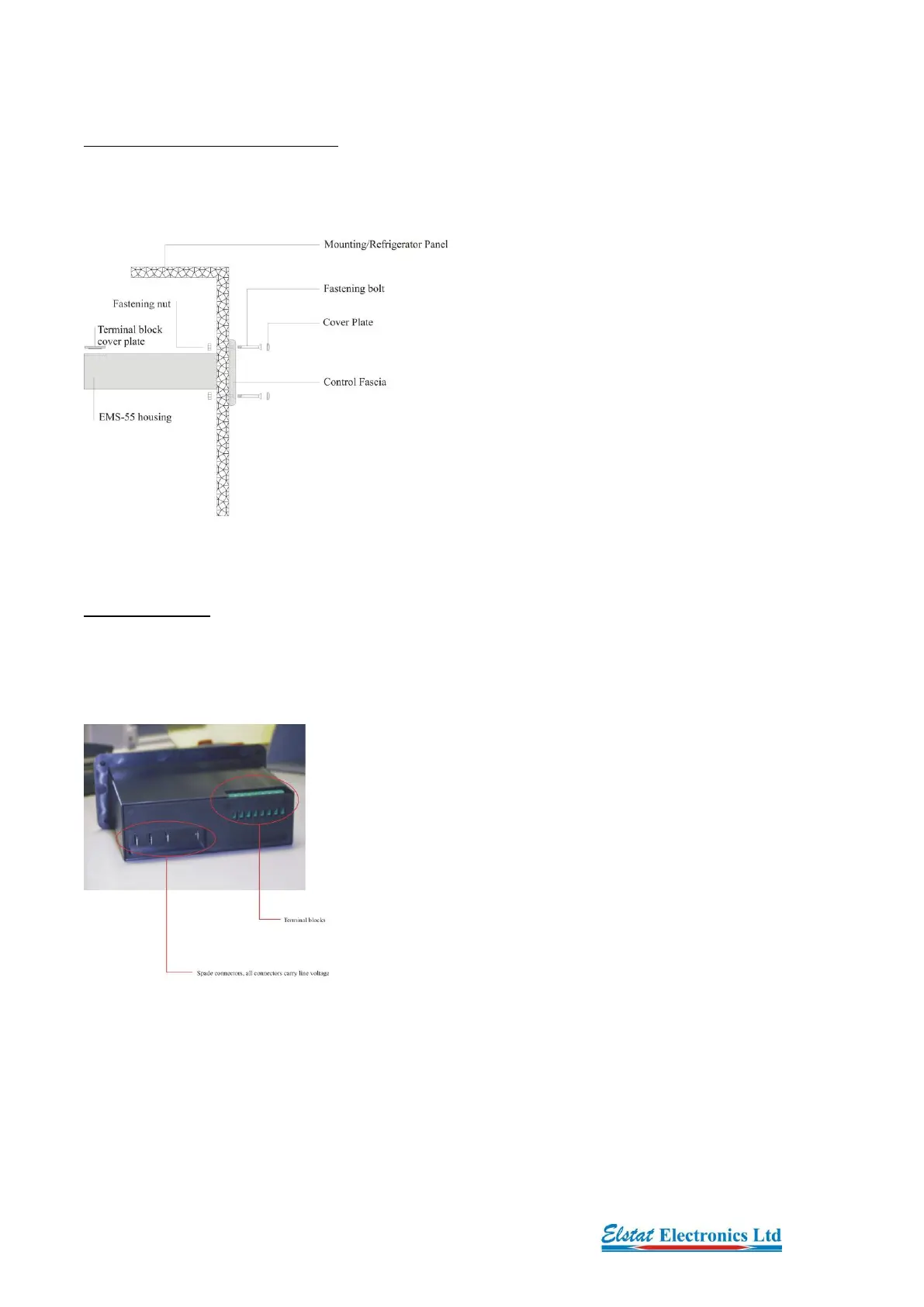

INSTALLATION INSTRUCTIONS
The EMS can be mounted either horizontally or vertically however, it is necessary when installing the
EMS or RMD55 to ensure that the motion detection window has a clear and unrestricted view into the
area in front of the cabinet.
CONNECTIONS
All line voltage connections are made via 6.5 mm spade terminals and all low voltage connections are
made via screw terminal blocks. When installing the EMS it is recommended to use insulated
connectors for all line voltage connections.

Elstat EMS-55-R Specifications

General

Brand	Elstat
Model	EMS-55-R
Category	Control Systems
Language	English
