Elster T-Probe User Manual

3

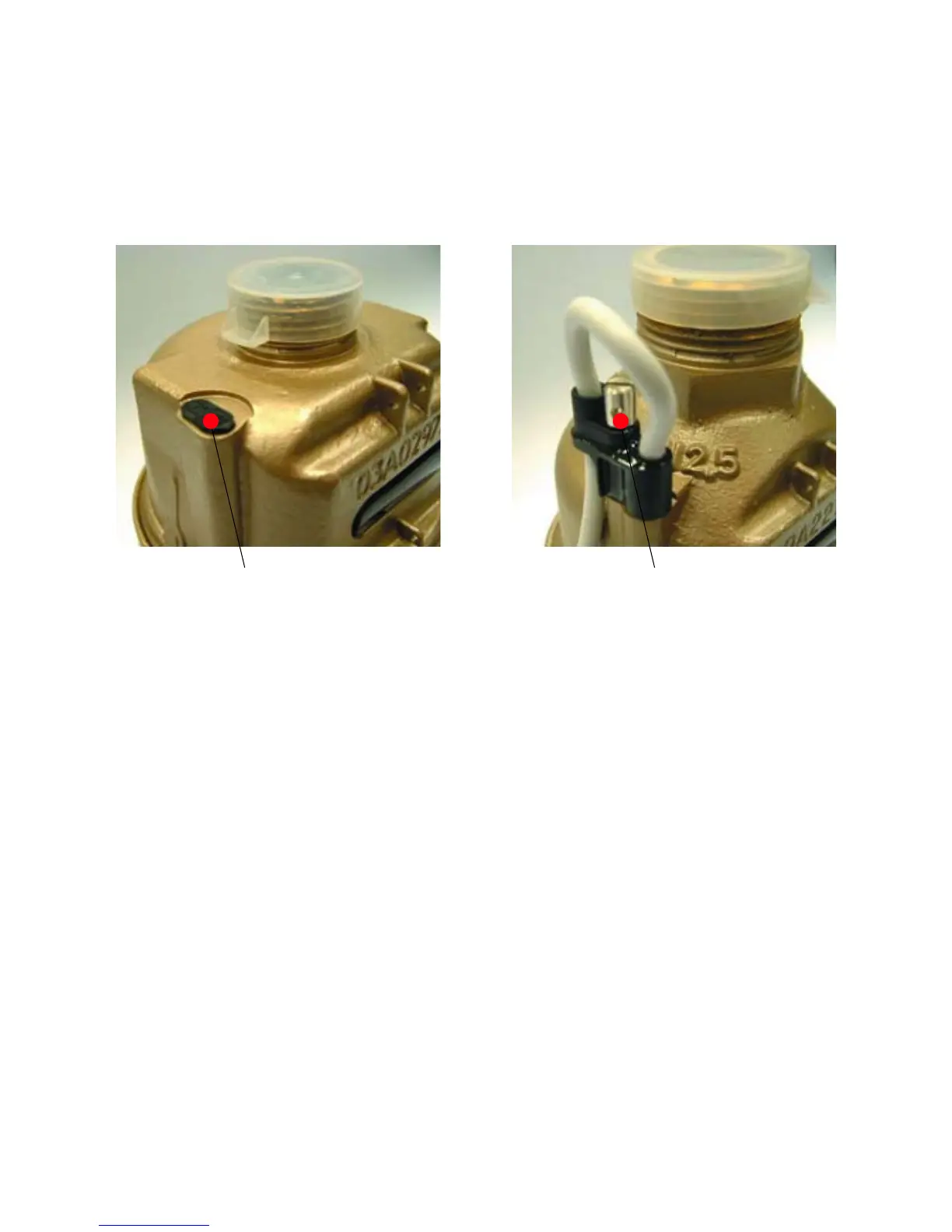

‘A’ Probe location position under
protective plug.
‘B’ Probe fitted and screwed in
place with security screw.
Cable Identification and Wiring Details:
The factory fitted cable used for the T-Probe is defined as 4 x 7 / 0.2mm
with Red, Blue, Black and Yellow as the core colours, contained within
a white outer sheath.
There are 2 wiring variants available, identified as follows:
Common Loop-Back: ‘TL1’ Product Code: RR1LRBX005X
Separate Loop-Back: ‘TL2’ Product Code: RR1LRTX005X
(Standard Version)
For ‘TL1’ variant, the BLACK and YELLOW cores are the volt free pair.
The loop-back is across RED and YELLOW cores. The Blue core can
be cut back and discarded, as it is not connected.
