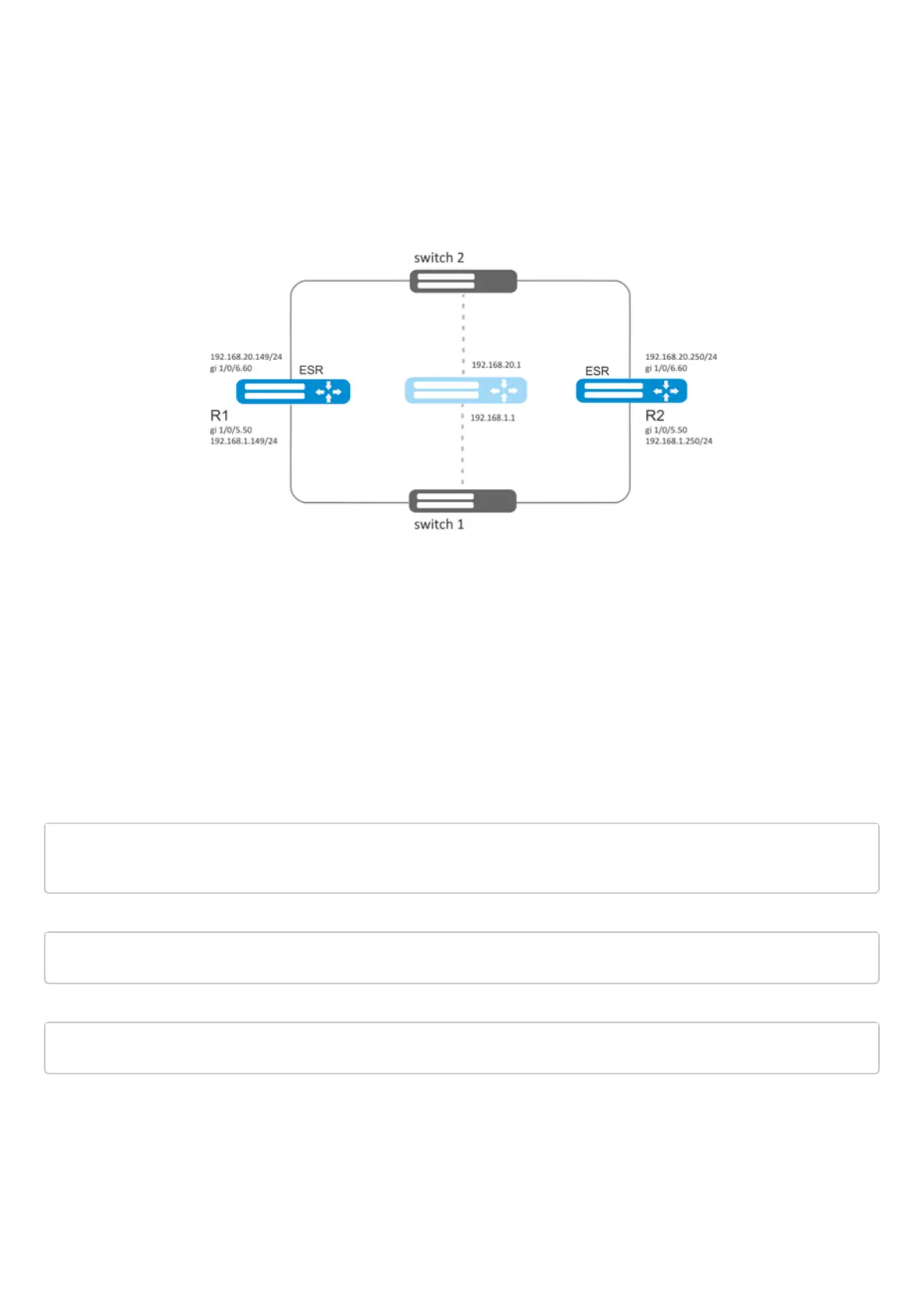

14.1.3 Configuration example 2
Objective:
Establish virtual gateways for 192.168.20.0/24 subnet in VLAN 50 and 192.168.1.0/24 in VLAN 60 using VRRP
with Master sync feature. To do this, group VRRP processes. IP addresses 192.168.1.1 and 192.168.20.1 are
used as virtual gateways.
Solution:
First, do the following:
create correspond sub interfaces;
configure a zone for the sub-interfaces;
specify IP addresses for the sub-interfaces.
Main configuration step:
Configure R1 router.
Configure VRRP for 192.168.1.0/24 subnet in the created sub-interface.
Specify unique VRRP identifier:
R1(config-sub)#interface gi 1/0/5.50
R1(config-subif)# vrrp id 10
Specify virtual gateway IP address 192.168.1.1:
R1(config-subif)# vrrp ip 192.168.1.1
Specify VRRP group identifier:
R1(config-subif)# vrrp group 5
