NTU-2V, NTU-RG Optical Network Terminals 11
2.5 Design
2.5.1 NTU-2V
NTU-2V devices are designed as a 122×96×32 mm desktop device in a plastic housing.

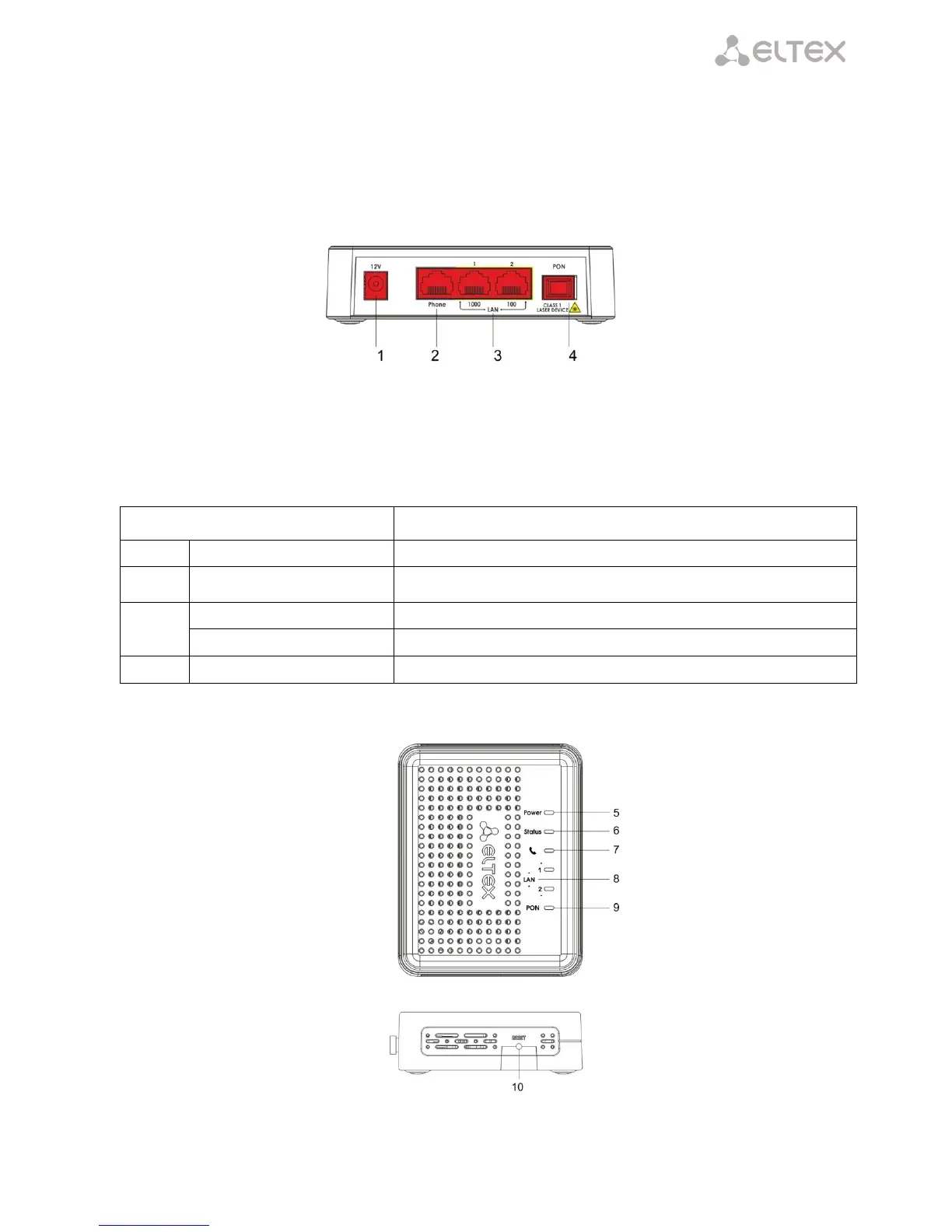

Fig. 2 shows NTU-2V rear panel.
Fig. 2 – NTU-2V Rear Panel
Connectors and controls located on the rear panel of NTU-2V are listed in Table 3.
Table 3 – Description of LEDs and Controls Located on the Rear Panel
Rear Panel Element
Description
1
12V
Power adapter connector
2
Phone
RJ-11 port for connection of an analog phone
3
LAN 1000
RJ-45 10/100/1000Base-T port for connection of network devices
LAN 100
RJ-45 100Base-TX port for connection of network devices
4
PON
SC port (socket) for connection to PON with GPON interface
Fig. 3 shows NTU-2V side and top panels.
Fig. 3 – NTU-2V Side and Top Panel
