7” Due Fili Plus porter switchboard

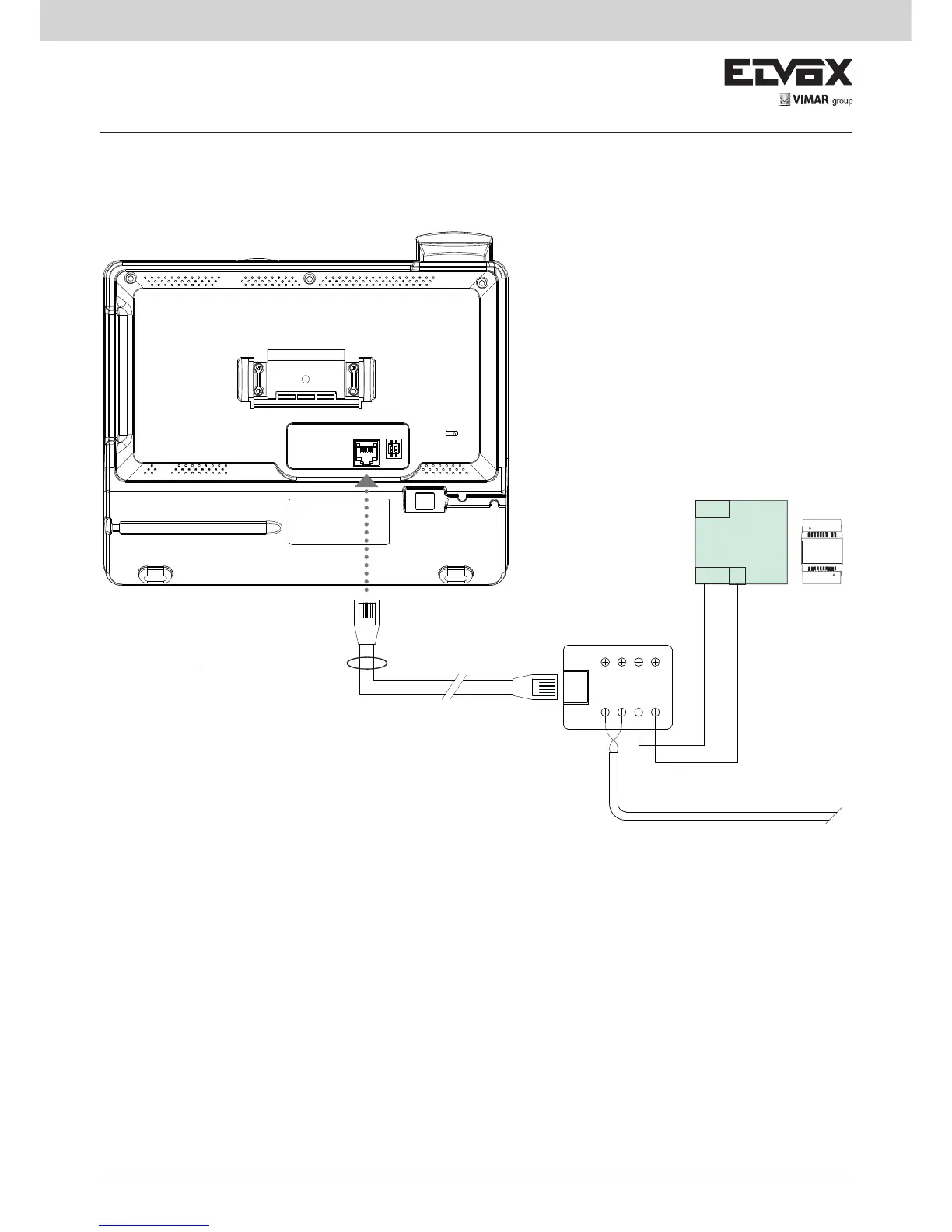

External connections
Switchboard 40510 is connected via the “Interconnecting stud” and the corresponding RJ45 Cat. 5E connection cable
supplied.
+U +I
PRI
-
6923
BU OG BK RD
WHBNYEGN
**
Important: Strictly observe the connections on the con-
necting stud. Inverted wiring connections may lead to the
switchboard being damaged.
**
Due Fili Bus
Important: The maximum connection dis-
tance between power supply unit 6923
and the interconnecting stud is 10 m.
Interconnecting
stud
Length: 3 m
Mains
Power
Supply unit
