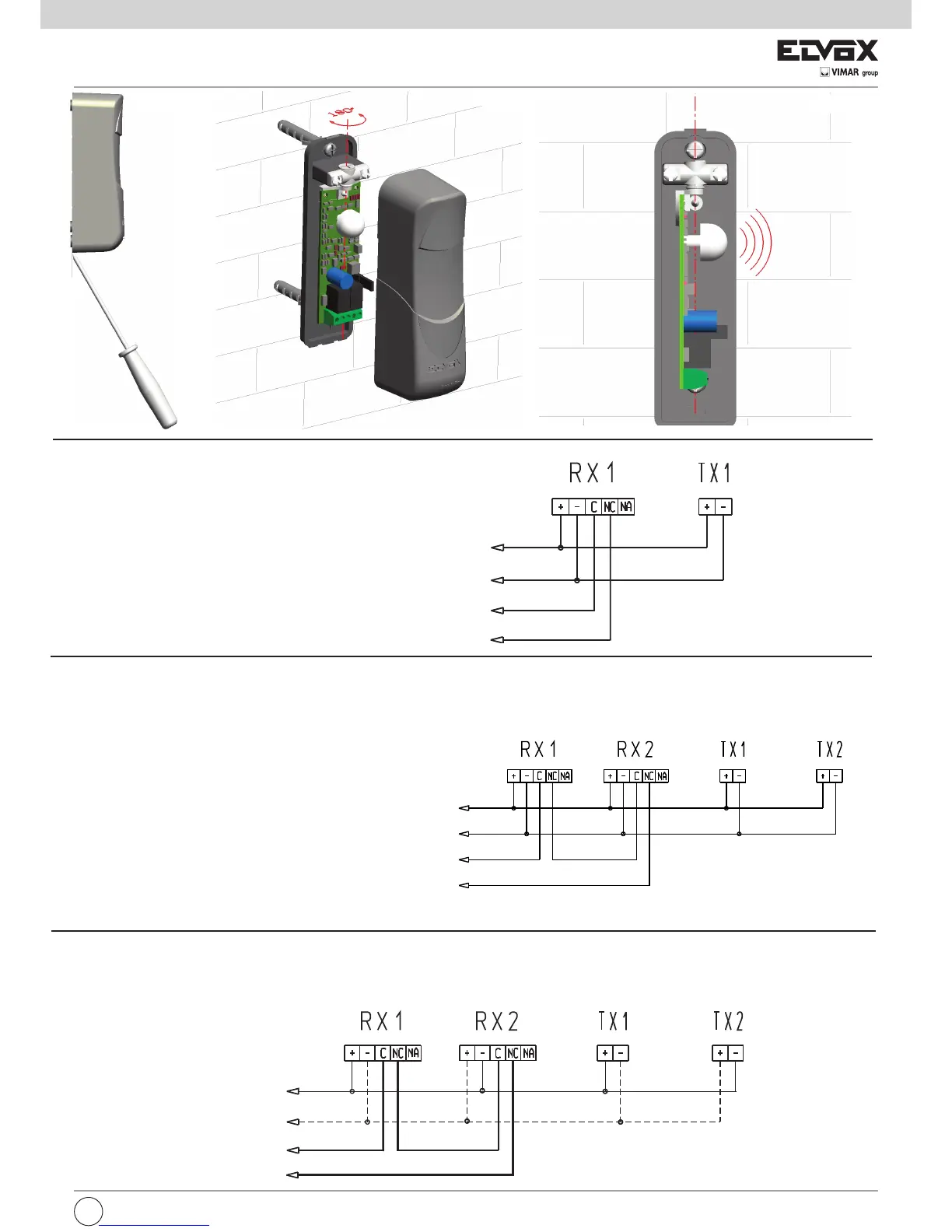

CONNECTION OF A 2-PAIR OF PHOTOELECTRIC CELLS
CONNECTION OF TWO PHOTOCELL PAIRS WITH SYNCHRONISM FUNCTION
CONNECTION OF A 1-PAIR OF PHOTOELECTRIC CELLS
COMMON
N.C. CONTACT
Supply voltage: 12/24VD.C./A.C.
~
~
COM
Supply voltage 12/24VD.C./A.C.
Supply voltage 12/24V A.C.
-
+
FOT
COM
-
+
FOT
COM
Fig. 8
Fig. 9
Fig. 10
FOT
