Elvox ESK4 - GENERAL FEATURES AND SPECIFICATIONS; TECHNICAL CHARACTERISTICS

16
GB
GENERAL FEATURES
Automation series ES, for residential, groups of flats and sliding gates for intensive operation. The irreversible electromechanical actuator is equipped with
a 12V low tension motor and a mechanical lock release which allows you to open and close the gate manually. The motor activates a reducer group, lubri-
cated with permanent grease, enclosed in a thick aluminium enclosure, but with reduced dimensions. The command electronic card is built-in in the actua-
tor body. All actuators are preset to lodge the back-up battery type ZBA1 (optional).
308
270
188
37

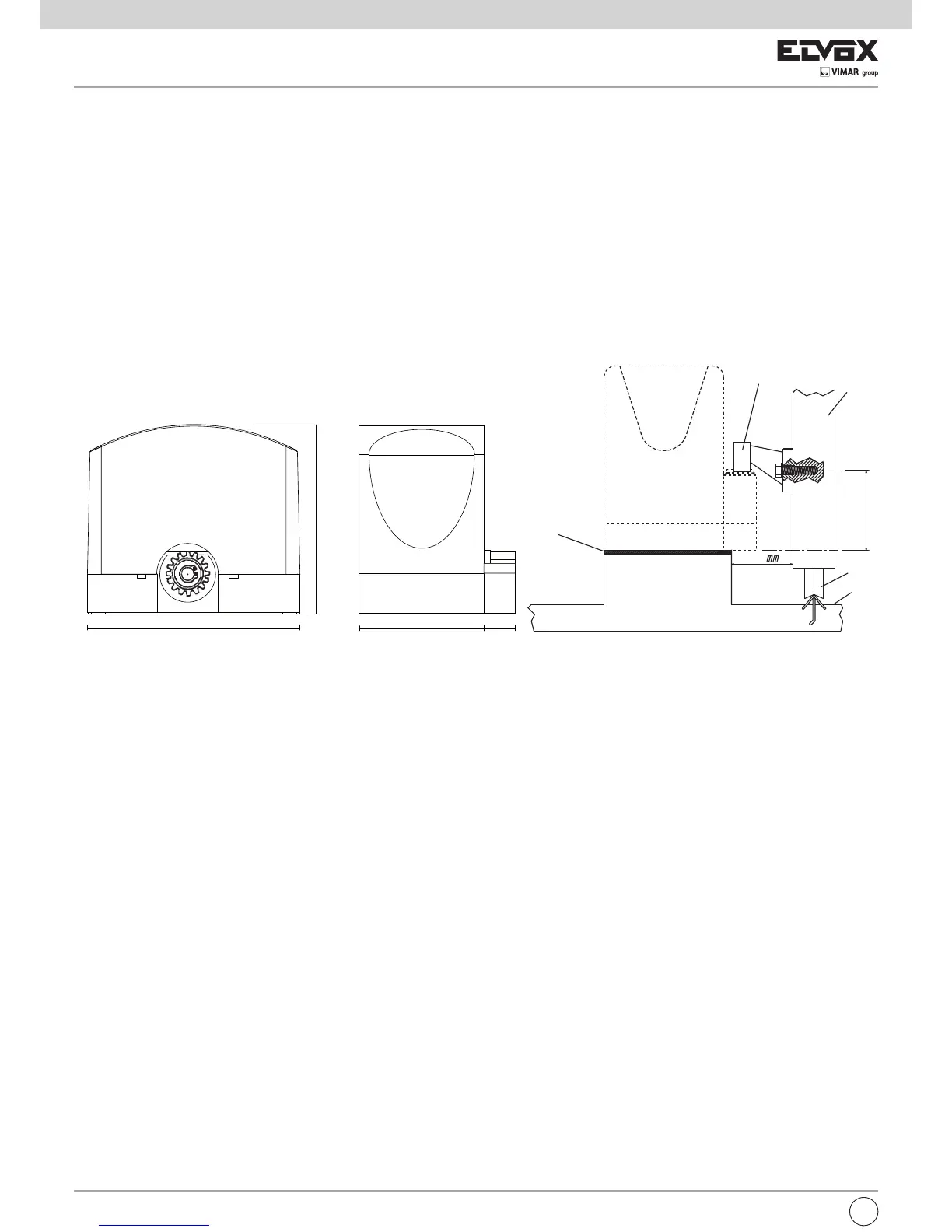

OVERALL DIMENSIONS
CONTENT OF THE PACKAGE:
N. 1 Actuator with card or receiver
N. 1 Flashing light
N. 1 2-channel 433 MHz radio control
N. 1 Key selector
N. 1 Pair of surface wall-mounted photocells
N. 1 Sign: “Wait”
N. 1
Bouchon for gate limit stop
N. 1 Shim brackets for rack mounting
A
B
C
D
E
40
TYPE OF INSTALLATION
A =
support (optional 330x208 mm)
B = rack art. ZE03 - ZE07 - ZE08
C = sliding gate
D = Wheel
E = Ground level
Automatic gate system
series ES...
Power Source
Frequency
Motor Source
Work intermittence
Max. Motor Power
Max. Motor Speed
Rack pinion
Operating Temperature
Protection degree
Max. gate mass
Dimensions (LxHxP)
TECHNICAL CHARACTERISTICS DESCRIBED ON THE SPECIFICATION PLATE
ES06 ES06/117 ES06/240
230 Vac (+6%, -10%) 117 Vac (+6%, -10%) 240 Vac (+6%, -10%)
50-60 Hz
12 Vc.c.
Intensive service
25 Watt
1300 RPM
Module 4
-20°C ÷ 55°C
IP45
400 Kg
308x270x225 mm.
ACTUATOR
62mm (ZE03-ZE08)
98mm (ZE07)
*
*
