10

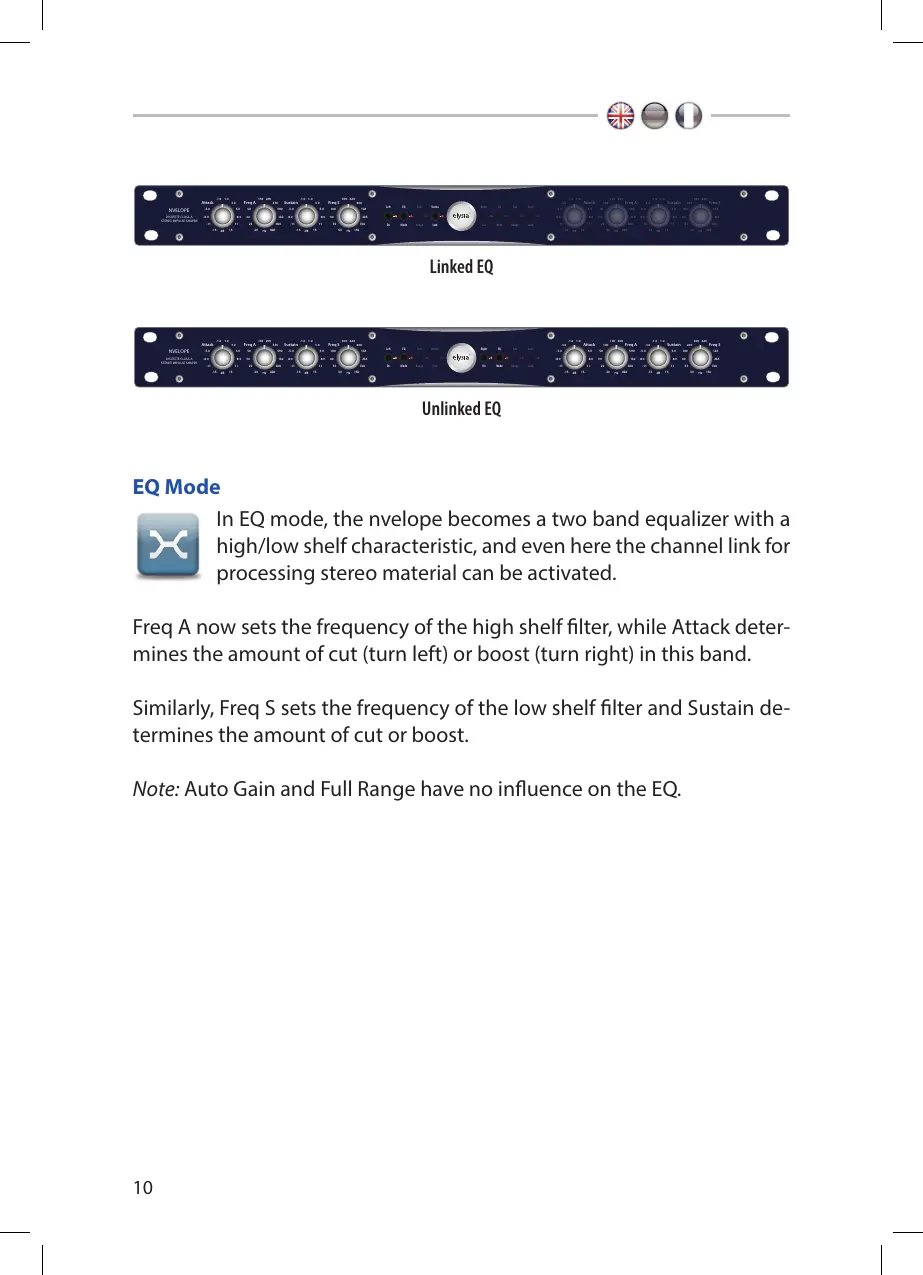

EQ Mode
In EQ mode, the nvelope becomes a two band equalizer with a
high/low shelf characteristic, and even here the channel link for
processing stereo material can be activated.
Freq A now sets the frequency of the high shelf lter, while Attack deter-
mines the amount of cut (turn left) or boost (turn right) in this band.
Similarly, Freq S sets the frequency of the low shelf lter and Sustain de-
termines the amount of cut or boost.
Note: Auto Gain and Full Range have no inuence on the EQ.
Linked EQ
Unlinked EQ
