EM TEST VDS 200 Series

Manual for Operation V 5.19 13 / 57

2.4.

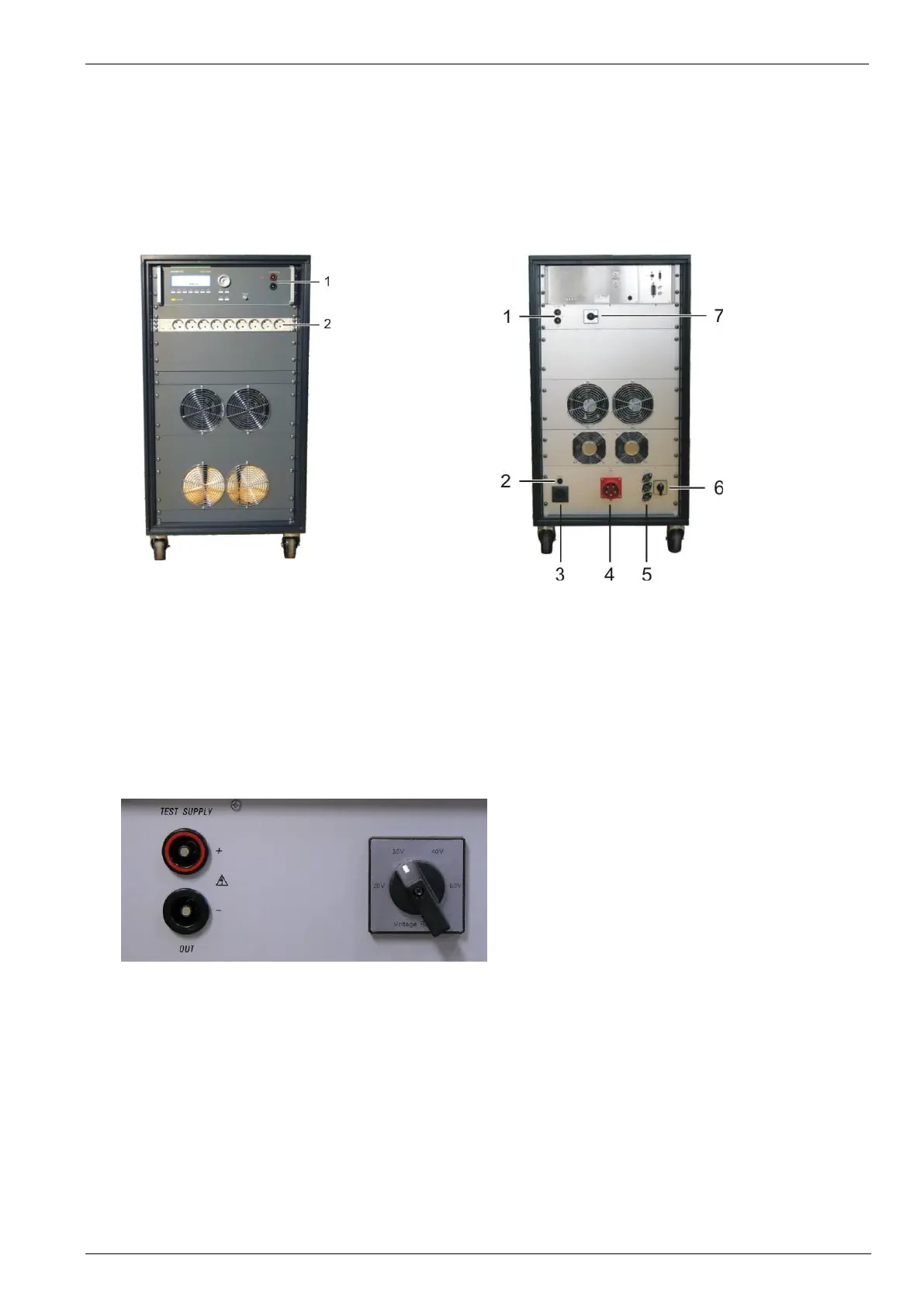

VDS 200N100.4 operating elements

The VDS 200N100.4 includes an internal overvoltage protection selectable by a switch at the rear side. The

protection levels are 20V, 30V, 40V and 60V. The overvoltage protection works as a crowbar, switches in a

few µs and discharges the storage capacitor bank and switches off the charging rectifier.

Front side

Rear side

1 Power output frontside

2 Mains plug 230V fused on F4 total 16A

1 Power output rear side

2 Fuse F4 for all mains output 16AT (6x32mm)

3 Mains 230V fused total 16A

4 Mains input 3 x 400 V ac

5 Fuse F1…F3 32A gG (10.3 x 38mm)

6 Main Switch

7 Overvoltage protection selector switch

2.4.1.

Overvoltage protection VDS200N100.4

The overvoltage protection switch selects the

following protection levels:

20.0V, 30.0V, 40.0V, 60.0V

The protection will switch off the output voltage

and discharge the internal dc-capacitor bank. The

protection is a hardware solution and independent

of the controller.
