5.10.2.
Voltage attenuation at sine ripple frequencies
Using an individual amplitude control with sine ripple, the user must compensate the attenuation of the amplifier
frequency bandwidth. The table below shows the attenuator factor for frequencies range 1kHz to 100kHz.
The ripple voltage must respect the voltage limitation (see chapter 4.7)
Correction table for sine ripple 1kHz to100kHz
Frequency
[kHz]
Attenuation
Frequency
[kHz]
Attenuation
Frequency
[kHz]
Attenuation
Frequency
[kHz]
Attenuation
1
1.0044
26
0.3379
51
0.1099
76
0.0461
2
0.9924
27
0.3208
52
0.1059
77
0.0447
3
0.9759
28
0.3049
53
0.1017
78
0.0436
4
0.9554
29
0.2897
54
0.098
79
0.0422
5
0.9308
30
0.2756
55
0.0944
80
0.0409
6
0.9033
31
0.2624
56
0.091
81
0.0397
7
0.8737
32
0.2499
57
0.0876
82
0.0387
8
0.8420
33
0.2380
58
0.0846
83
0.0376
9
0.8087
34
0.2271
59
0.0816
84
0.0365
10
0.7748
35
0.2166
60
0.0785
85
0.0356
11
0.7409
36
0.2067
61
0.0757
86
0.0347
12
0.7067
37
0.1974
62
0.073
87
0.0337
13
0.6727
38
0.1888
63
0.0707
88
0.0328
14
0.6398
39
0.1806
64
0.0684
89
0.032
15
0.6076
40
0.1728
65
0.066
90
0.0313
16
0.5766
41
0.1654
66
0.0636
91
0.0304
17
0.5466
42
0.1583
67
0.0615
92
0.0295
18
0.5181
43
0.1519
68
0.0595
93
0.0289
19
0.4911
44
0.1456
69
0.0576
94
0.0282
20
0.4652
45
0.1397
70
0.0558
95
0.0275
21
0.4409
46
0.1340
71
0.054
96
0.027
22
0.4177
47
0.1287
72
0.0522
97
0.0264
23
0.3959
48
0.1237
73
0.0505
98
0.0259
24
0.3754
49
0.1189
74
0.0491
99
0.0255
25
0.3562
50
0.1142
75
0.0474
100
0.0249

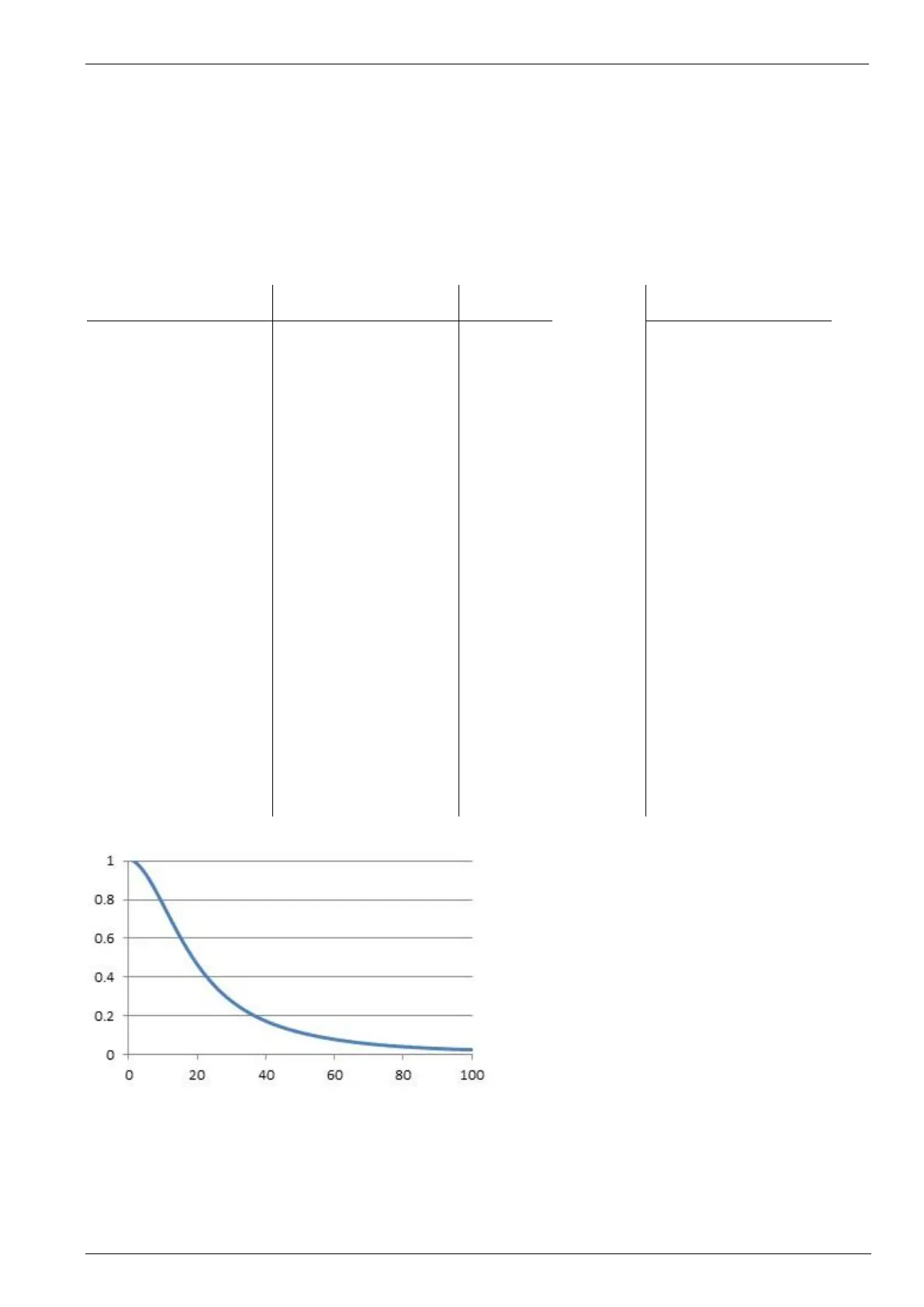

Attenuation curve according the correction table
The amplitude at sine ripple is compensated in manual operation by the VDS 200N firmware.
