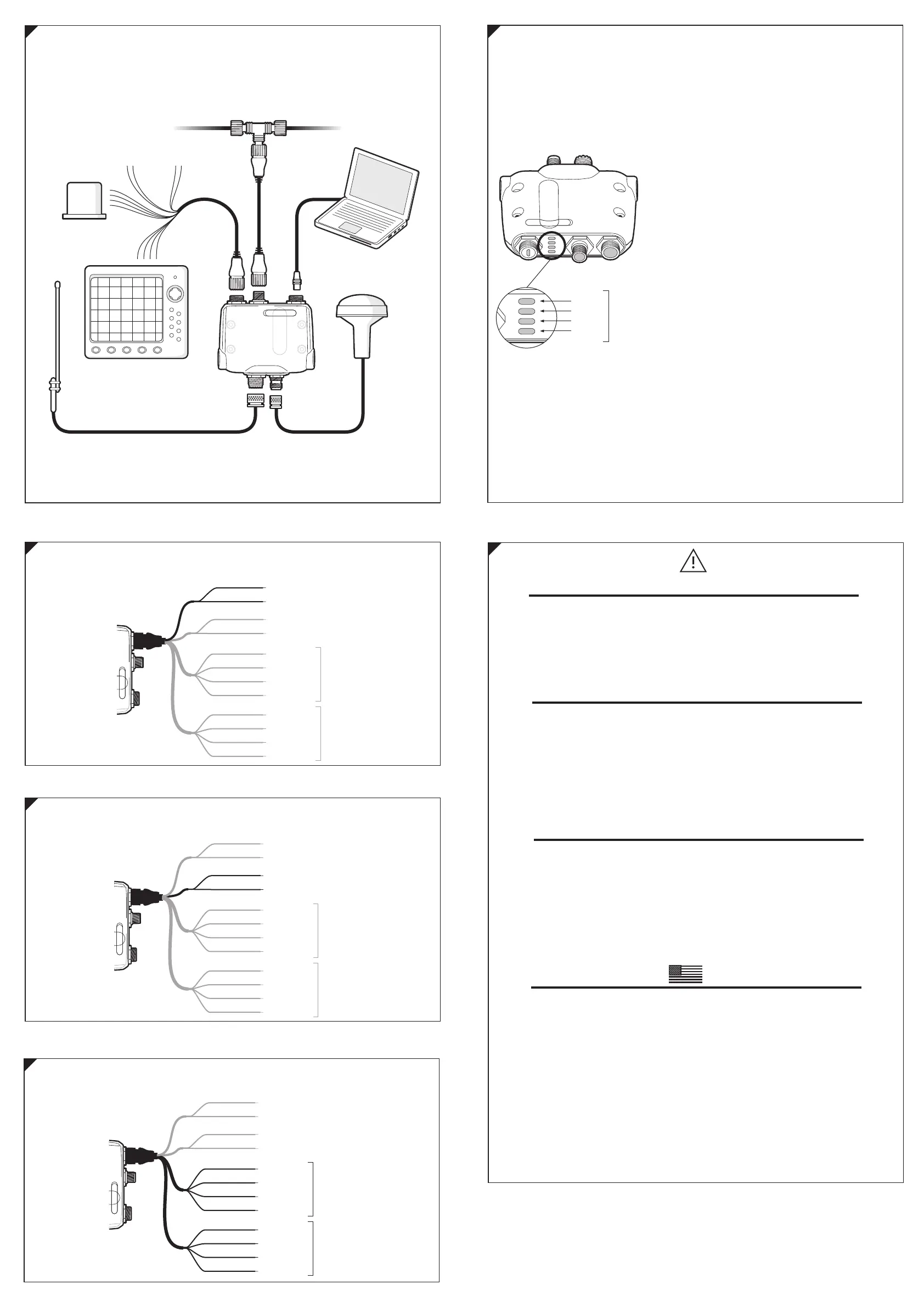

Em-Trak B100 Quick Start Guide

Indicator functions
Typical installation conguration
GPS Antenna
VHF Antenna
Chartplotter
NMEA0183 device
Switch Power in
NMEA 2000
Optional PC
Class B AIS
transceiver
Transmit +
Transmit –
Power in +
Power in –
Switch input +
Switch input –
Receive +
Receive –
Brown
Blue
Light green
Orange
Red
Black
White
Green
Purple
Pink
Grey
Yellow
Transmit +
Transmit –
Receive +
Receive –
NMEA0183
Port 1
NMEA0183
Port 2
Transmit +
Transmit –
Power in +
Power in –
Switch input +
Switch input –
Receive +
Receive –
Brown
Blue
Light green
Orange
Red
Black
White
Green
Purple
Pink
Grey
Yellow
Transmit +
Transmit –
Receive +
Receive –
NMEA0183
Port 1
38,400baud
(chart plotter)
NMEA0183
Port 2
4,800baud
(other NMEA0183 device)
Transmit +
Transmit –
Power in +
Power in –
Switch input +
Switch input –
Receive +
Receive –
Brown
Blue
Light green
Orange
Red
Black
White
Green
Purple
Pink
Grey
Yellow
Transmit +
Transmit –
Receive +
Receive –
NMEA0183
Port 1
NMEA0183
Port 2
Connecting the power supply
Connecting an external switch
Connecting to the NMEA0183 data port
Head Oce:
em-trak Marine Electronics Ltd
Wireless House, Westeld Industrial Estate,
Midsomer Norton, Bath, BA3 4BS, UK
E: enquiries@em-trak.com
T: +44 (0) 1761 409 559, F: +44 (0) 1761 410 093
Regional Oce:
em-trak Marine Electronics Ltd
470 Atlantic Avenue, 4th Floor,
Boston, MA 02210, USA
E: enquiries@em-trak.com
T: +1 617 273 8395, F: +1 617 273 8001
Using an AIS antenna splitter
The em-trak B100 can be used with an AIS antenna splitter in order to share a single VHF antenna
with a VHF radio.
To ensure best performance and reliability em-trak strongly recommends that only the em-trak
S100 antenna splitter is used with the B100.
Third party antenna splitters can adversely aect the radio performance of the system and may
result in permanent damage to connected equipment.
Please ask your retailer or installer for further details on the em-trak S100 antenna splitter.
The USB port built into this product is not isolated from the vessel power supply, VHF antenna
ground or GPS ground. Please observe the following procedures when connecting the USB port to
avoid grounding problems.
If the computer is permanently installed on the vessel and / or electrically
connected to any other vessel equipment, including power supplies, it is recommended that
connection is made using the NMEA0183 or NMEA 2000 interfaces. These benet from being
specically designed for use in the marine environment and provide isolated and robust
communication between your devices.
If a battery powered laptop is being used then it is recommended that you always switch o the
computer before connecting the USB cable.
La connection USB de ce produit n’est pas isolée du réseau électrique de votre vaisseau, ni de la
masse de l’antenne VHF, ni de la masse de l’antenne GPS.
Veuillez suivre les procedures suivantes, si vous connectez le port USB pour éviter les problèmes
associes avec la mise à terre.
Si votre PC/MAC est installé en permanence sur votre vaisseau et/ou il est connecté aux autres
équipements installés à bord (sources de courant inclus), il est recommandé que la connexion soit
établie par les interfaces NMEA0183 ou NMEA2000.
Ces connexions sont spéciquement désignées pour une l’utilisation dans un environment marin
et ells assurent une communication isolé et robuste entre vos appareils.
Si vous utilisez un PC portable alimenté à sa propre pile, il est important d’assurer votre PC soit
éteint qu’avant de connecter / déconnecter le cable USB.
In accordance with the rules of the US Federal Communications Commission your B100 Class B
transceiver must be correctly programmed before it will fully
operate.
Until programmed your B100 will NOT transmit and will only receive AIS messages.
To program your B100 please complete the following instructions:
1. Go to www.em-trak.com
2. Select the ‘USA Owners Registration’ button located on the home page.
3. Complete the online ‘SD Card Programming Form’.
4. Click ‘Submit’.
5. Within 10 working days you will receive in the mail an SD card which will contain all the
programming information you provided in the online SD card programming form.
6. Ensure your B100 is powered o and rmly insert the SD card into the slot on the top of the B100.
7. Power on your B100.
8. The LED lights will ash green to indicate that your B100 has been programmed and is noW fully
operational.
9. The programming information will be automatically deleted from your SD card, and the SD card
can be removed from the B100.
USB usage guidance
ATTENTION ! US customers only
Green indicator only
The AIS transceiver is powered up, has a position x
and has transmitted at least one vessel information
report. If the green indicator ashes this indicates
the memory card is full and data logging has stopped.
Red indicator only
The AIS transceiver has detected a system error.
Amber and blue indicators
The AIS transceiver is in ‘silent’ mode.
Amber indicator only
The AIS transceiver is in 'transmit timeout' mode.
Red and amber indicators
No MMSI number programmed and/or no DC power
detected.
Flashing amber indicator only
The unit is waiting for a GPS x.
Red indicator only
VSWR error.
For further details please see the Installation and
Operation Manual.
Green
Amber
Red
Blue
Indicator
lights
Important Notes
Utilisation de la connection USB
