Installation
Page 21
● The transceiver should be mounted at least 1m away from sources of
interference like VHF radios, transmitting antennas, radar, etc.

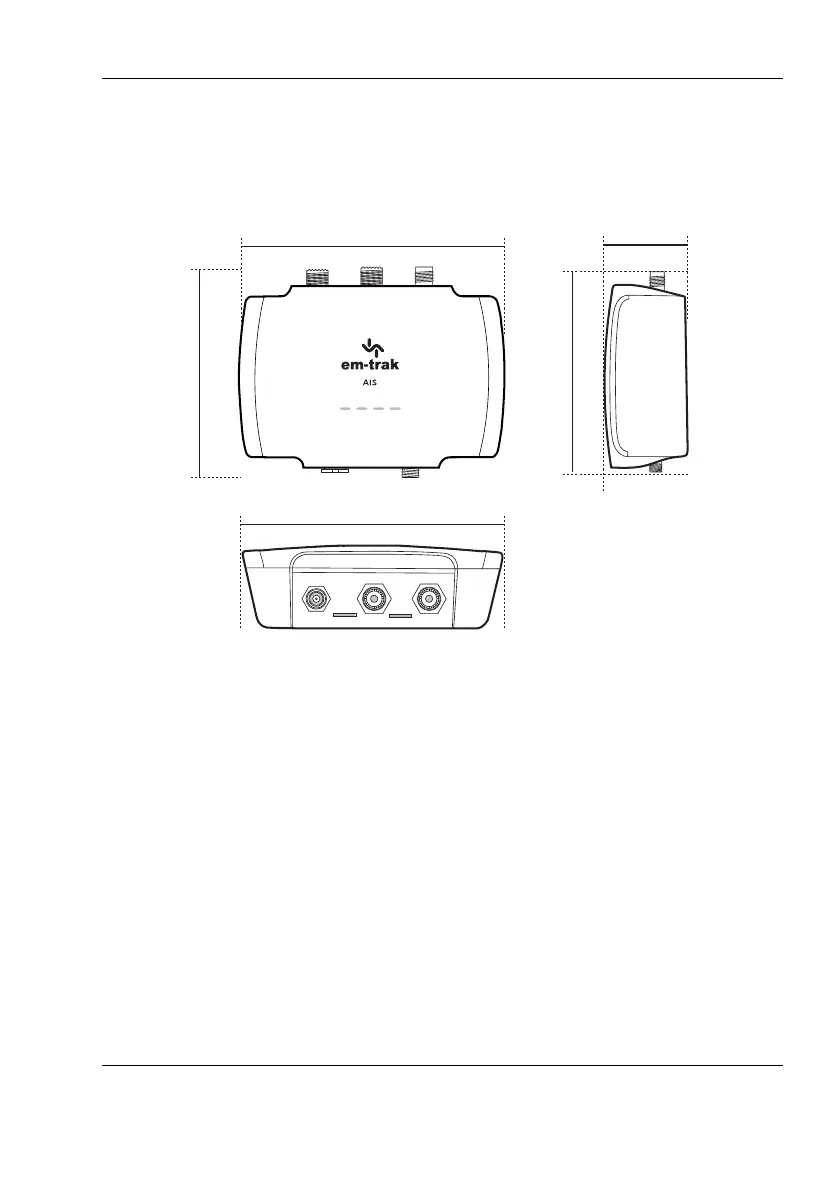

Figure 6 AIS transceiver dimensions
1. Mount the bracket to the suitable surface using the four self-tapping
screws provided. A mounting template is provided to assist with drilling the
correct hole positions.
2. Connect all the RF and power and data cables.
3. Clip the AIS transceiver onto the security bracket by lining up the two tabs
with the corresponding slots and sliding the unit down. The tab on the unit
should then engage with the slot in the mounting bracket.
4. Screw the captive security screw in the bracket into the AIS transceiver to
lock it in place. See
Figure 7
150 mm
150 mm
43 mm
115 mm
115 mm
