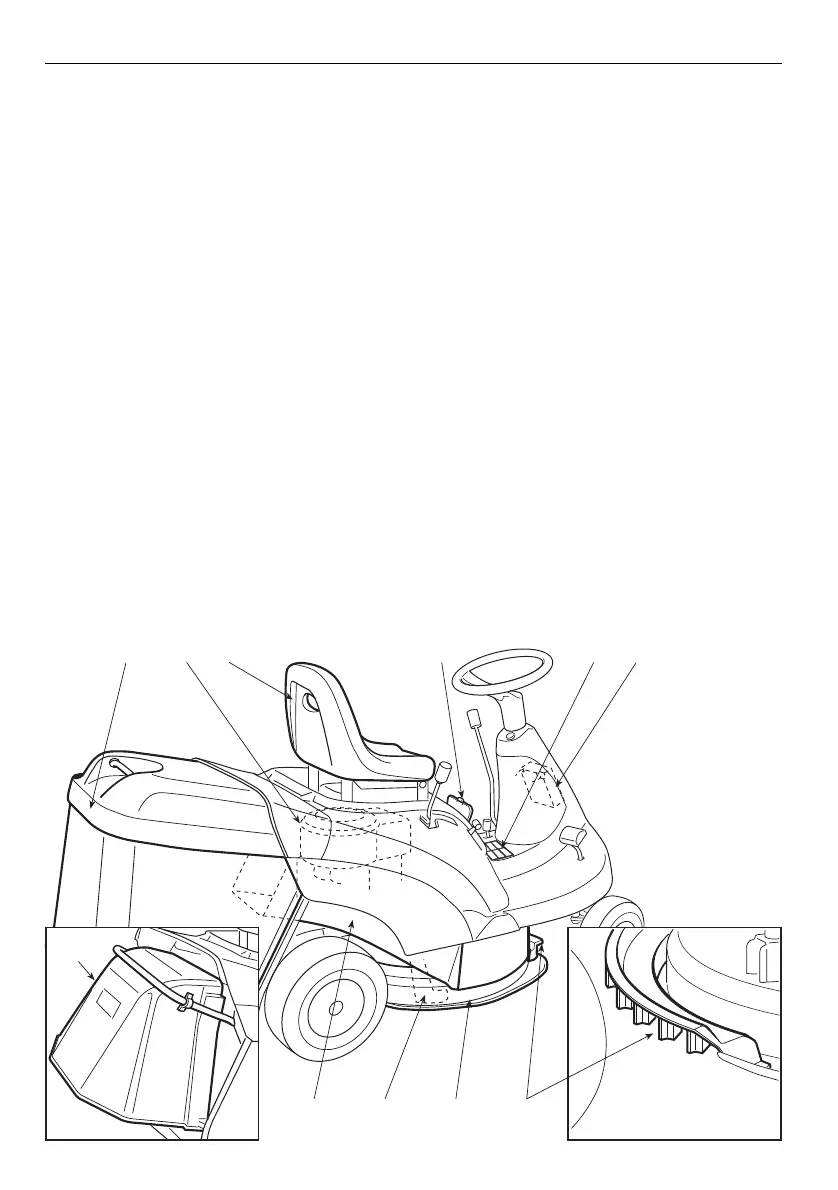

13. Collector channel: this is the part connecting the cutting deck to the grass-
catcher.
14. Grass-catcher: as well as collecting the grass cuttings, this is also a safety
element in that it stops any objects drawn up by the blade from being thrown
outside of the machine.
15. Stone-guard or deflector: this can be fitted in place of the grass-catcher
and prevents objects drawn up by the blade from being thrown outside of the
machine.
16. Engine: this moves the blade and drives the wheels. It is fully described in a
specific booklet.
17. Battery: provides the energy for starting the engine. It is fully described in a
specific booklet.
18. Driver seat: this is where the machine operator sits. It has a sensor for
detecting the presence of the operator which is a safety device.
19. Decals for regulations and safety: give reminders on the main provisions
for working safely, each of which is explained in chapter 1.
20. Access hatch: gives easy access to the spark plug, the fuel cock, and the
fixing nut for the engine cover.
21. Air intake grill: helps air to flow inside the cutting deck and prevents objects
from being thrown out at the front.
ENG 8 IDENTIFICATION OF THE MACHINE AND PARTS
