3. UNPACKING AND ASSEMBLY
For storage and transport reasons, some components of the machine are not
directly installed in the factory, but have to be assembled after their removal from
the packing. Final assembly is carried out by following these simple instructions.
For transport reasons the machine is supplied without engine
oil or fuel. Before starting up the engine, fill with oil and fuel following the
instructions given in the engine booklet.
UNPACKING
When unpacking the machine, take care to gather all individual parts and fittings,
and do not damage the cutting deck when taking the machine off the base pallet.
The standard packing contents:
– the machine;
– steering wheel;
– seat;
– grass-catcher components;
– an envelope containing the instruction manual, documents and the nuts and
bolts with two starter keys, a pin for blocking the steering wheel and a spare
6.3 Ampere fuse.

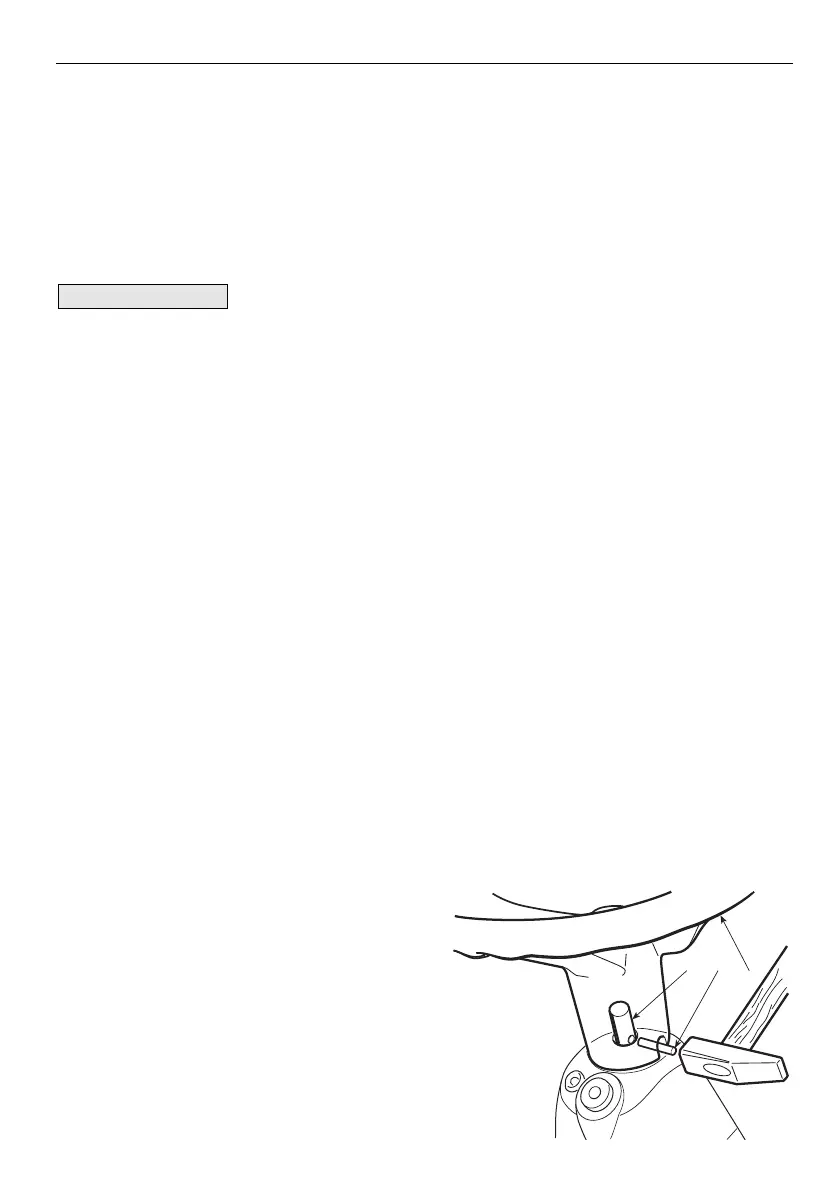

FITTING THE STEERING WHEEL
Put the machine on a flat surface and
straighten up the front wheels.
Fit the steering wheel (1) onto the protru-
ding shaft (2) with the spokes directed
towards the seat.
Line up the hole in the steering wheel hub
with the hole in the shaft and insert the
pin supplied (3).
IMPORTANT
ENG 9UNPACKING AND ASSEMBLY
