EMAK EF72C/12,5M - Page 55

Push the pin in using a hammer, ensuring that it comes completely through to the
opposite side.
To avoid damaging the steering wheel with the hammer, use
an awl or a screw-driver of the same size as the pin to push it in the last part.
FITTING THE SEAT

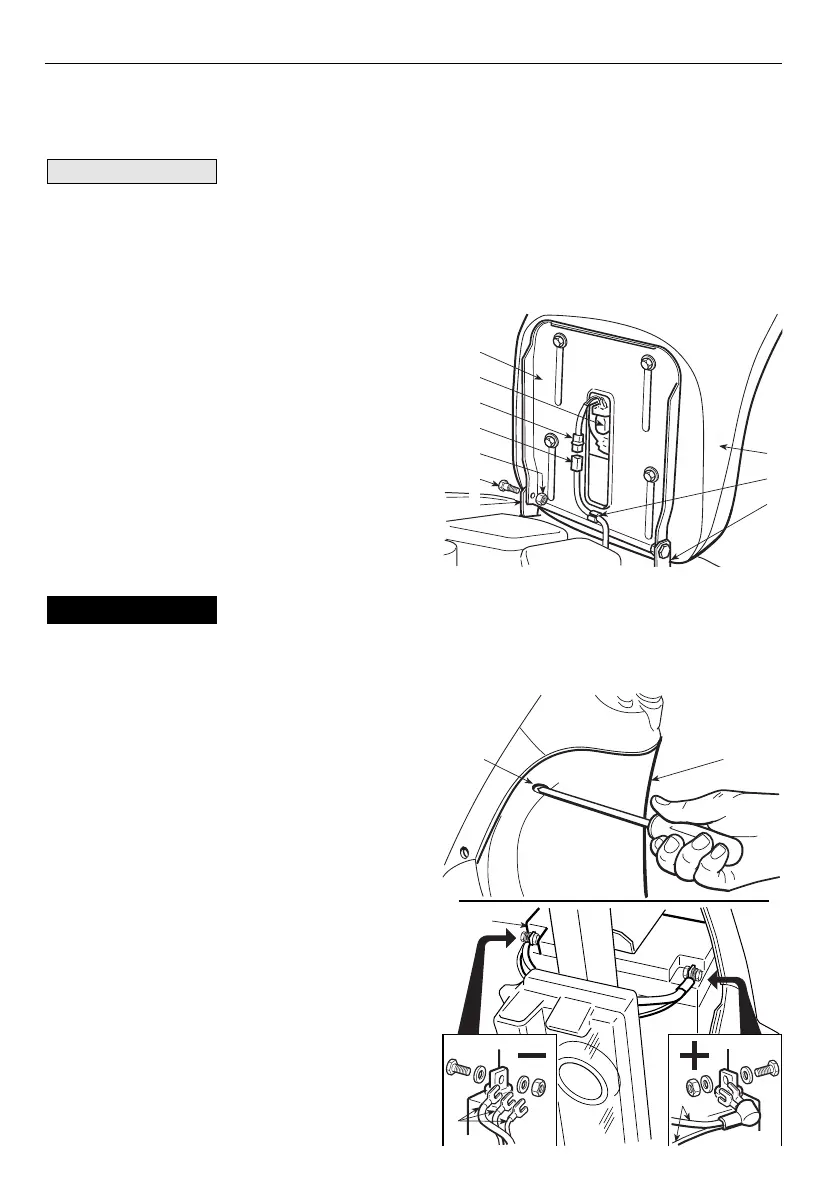

The seat (1) is supplied attached to a
support bracket (2) on which has been fit-
ted a micro-switch (3). Fit the bracket to
the supports (4) using the screw pins (5)
supplied, fully tightening the relative nuts
(6).
Connect the micro-switch socket (7) to the one coming
from the general wiring (8) to ensure that the safety device works, and
then fasten the wire with the wire-holder (9).
CONNECTING THE BATTERY
The battery (1) is situated in a compart-
ment under the steering wheel and is rea-
ched by removing the plastic cover (2)
held on by two screws (3).
Connect the two red cables (4) to the
positive terminal (+) and the three black
cables (5) to the negative terminal (–)
using the supplied screws and following
the illustrated sequence.
Recharge the battery according to the
manufacturer's instructions.

!
WARNING!
NOTE
ENG 10 UNPACKING AND ASSEMBLY
