EMAK EF72C/12,5M - Page 57

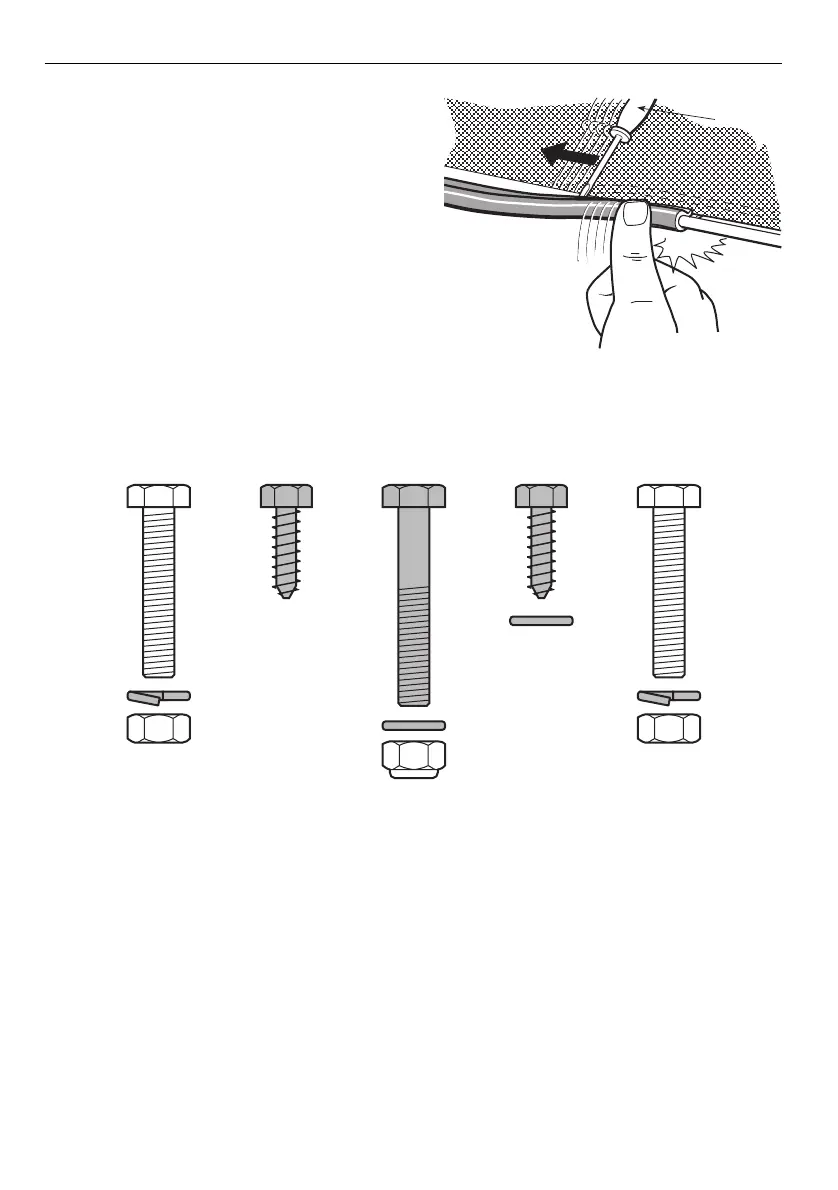

Hook all the plastic profiles to the frame
tubes with the help of a screwdriver (7).
Insert the handle (8) into the holes of the
canvas (9). Attach this to the frame using
the screws (10), following the indicated
sequence, and complete the assembly
screwing the four front and rear self-
threading screws (11).
Lastly, fit the stiffening bar (12) on the out-
side of the frame base, keeping the flat part towards the canvas and using the
nuts and screws supplied (13) in the sequence indicated.
ENG 12 UNPACKING AND ASSEMBLY
C
L
A
K
7
3 (x 2) 6 (x 4) 10 (x 2) 11 (x 4) 13 (x 2)
