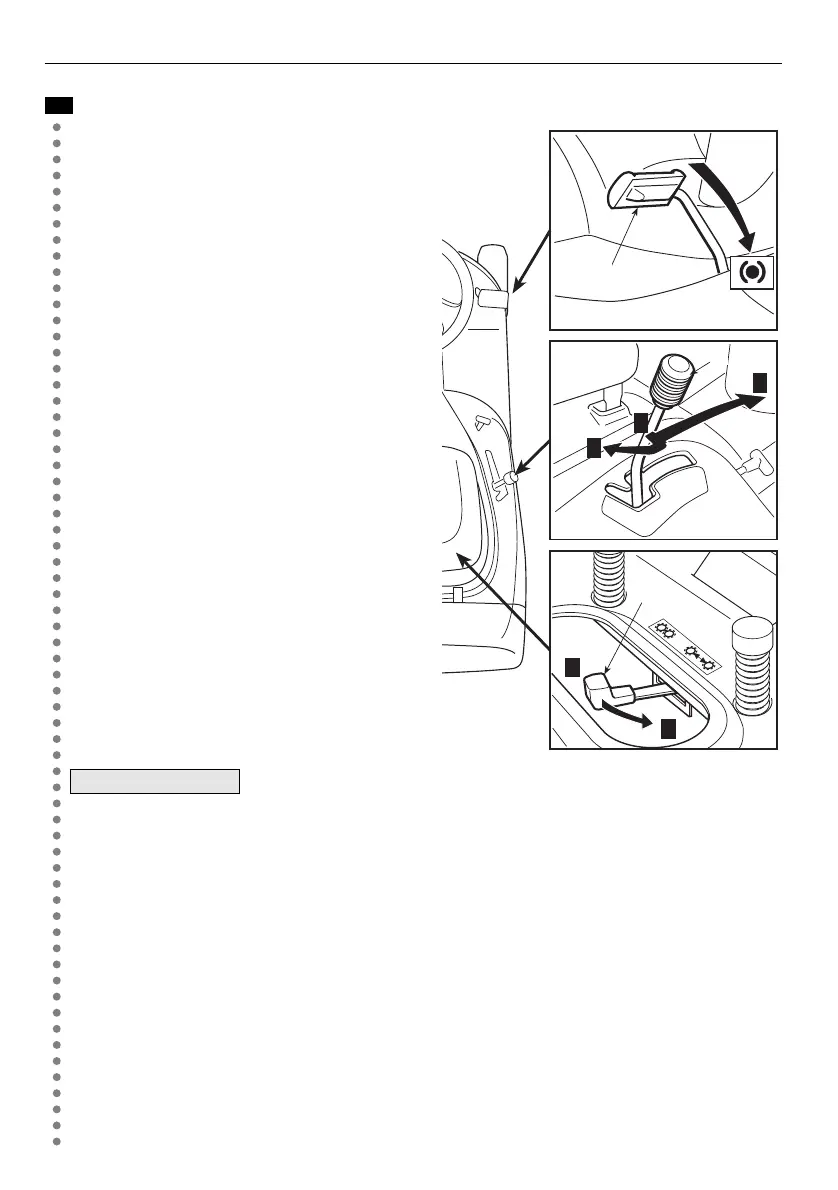

For hydrostatic drive models:
21. B
RAKE PEDAL
In hydrostatically driven models this
pedal is solely for braking and works on
the rear wheels.
22. S
PEED CHANGE LEVER
This lever engages drive to the wheels
and changes the machine’s forward
and reverse speed.
The machine’s forward speed gradually
increases by moving the lever towards
«F». Reverse is engaged by moving
the lever to «R».
When the brake pedal (21) is pressed
the lever automatically returns to the
«N» (neutral) position. It can also be
moved there manually even without
pressing the brake.
When the parking brake (3) is engaged the speed change
lever is locked in the «N» position and cannot be moved until the parking
brake and the pedal have been released.
23. L
EVER TO RELEASE THE HYDROSTATIC DRIVE
This lever has two positions shown on the plate:
Position «A» = Drive engaged: for all operating conditions, when moving and
during cutting;
Position «B» = Drive released: considerably reduces the effort required for
moving the machine manually, when the engine is not run-
ning.
IMPORTANT
➤
ENG 16 COMMANDS AND CONTROL INSTRUMENTS
