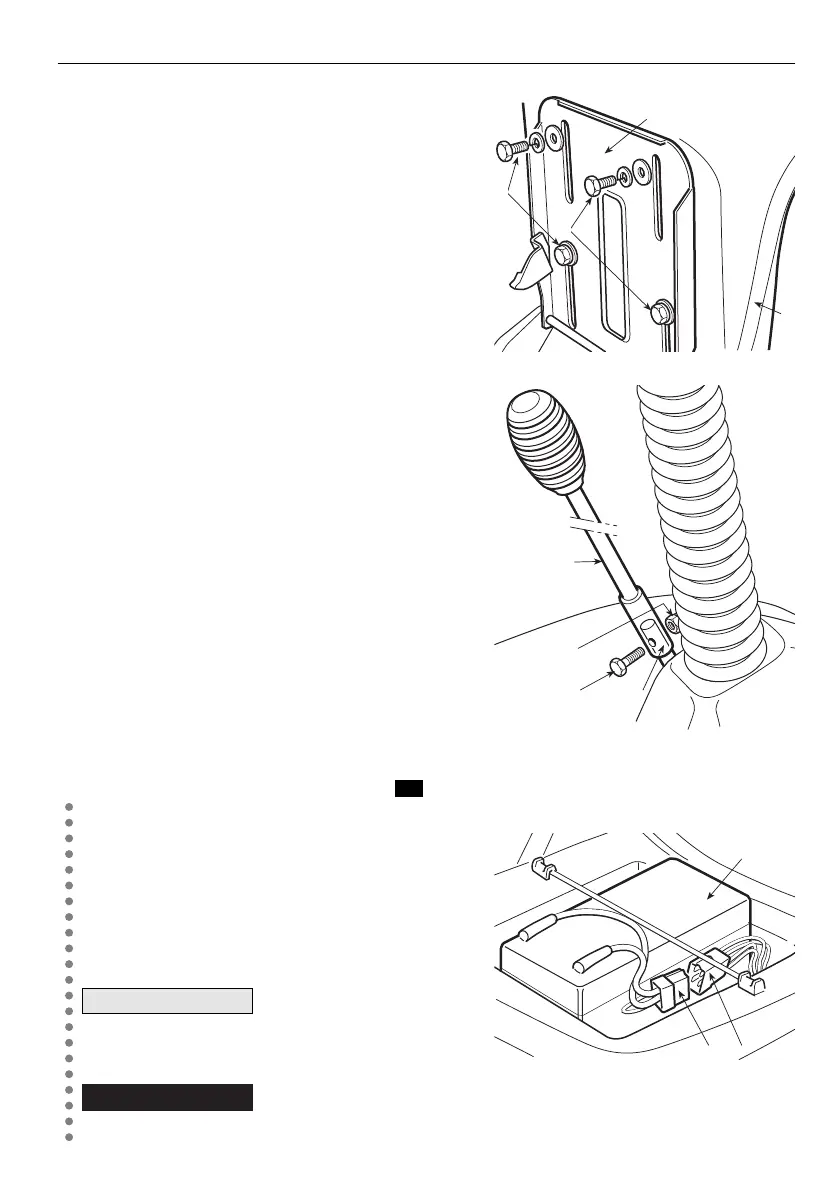

3.3 FITTING THE SEAT
1. Fit the seat (1) onto the plate (2) using the
screws (3).
3.4 FITTING THE BLADE ENGAGEMENT
LEVER
1. Fit the end of the lever (1) on the projecting
part of the pin (2) and fix it all by tightening
the screw (3) and nut (4).
3.5 CONNECTING THE BATTERY ( sonly in the electric start models):
The battery (1) is situated under the seat.
1. Connect the battery connector (2) to the
machine connector (3);
2. recharge the battery by following the
instructions in the manual (☛ 6.2.5).
Never start the engine
until the battery is fully charged!
Follow the battery manufacturer's instructions regard-
ing safe handling and disposal.
!
WARNING!
IMPORTANT
➤
EN 9UNPACKING AND ASSEMBLY
