3.6 FITTING THE GRASS-CATCHER

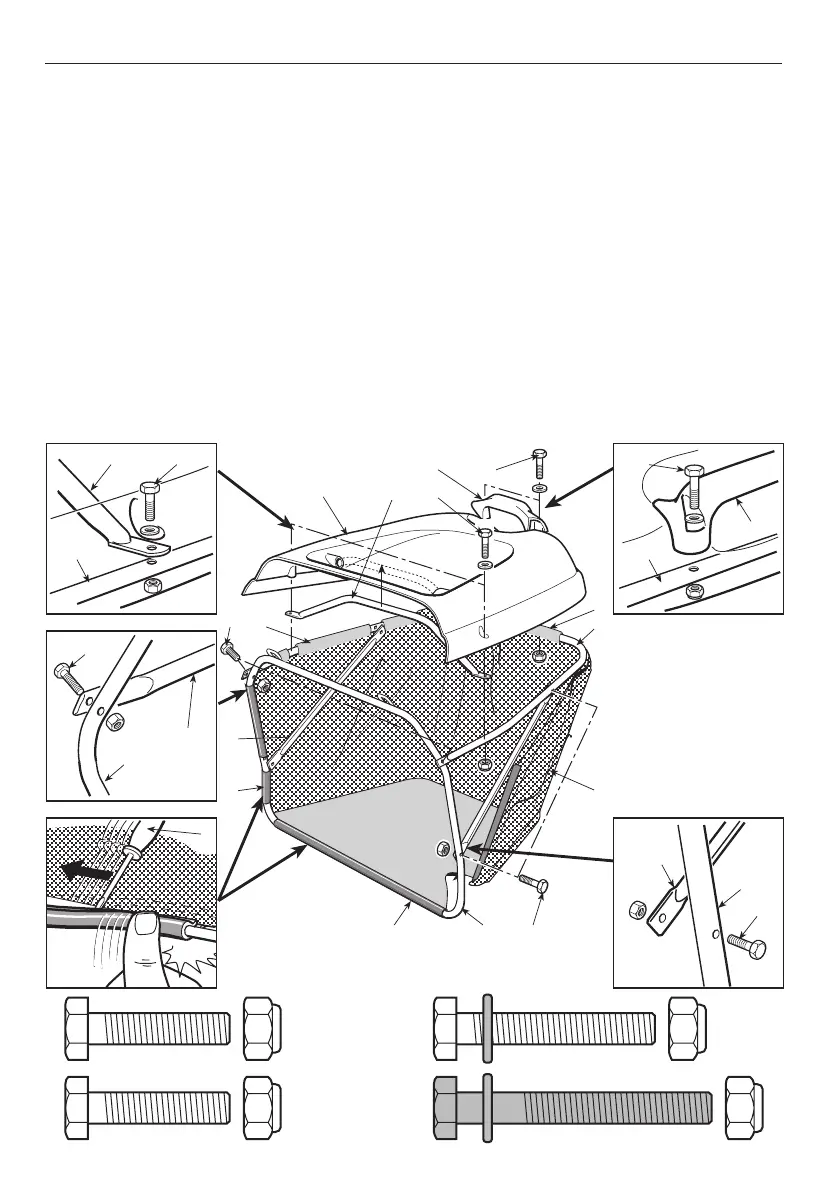

Identify the screws to be used by following the drawing that shows them in their
actual size.
1. Fit the upper frame (1) in the upper slots (2) of the canvas cover (3);
2. join the two pieces of the frame (1) and (4) using the screws (5). Fit the two tie
rods (6) and fasten them by using the screws (7);
3. hook the plastic profiles (8) onto the front frame tubes (4) with the aid of a
screwdriver (9).
4. insert the handle (10) into the holes of the cover (11) and attach this to the
frame using the screws (12);
5. fit the rear handle (13) and fasten it with the screws (14).
EN 10 UNPACKING AND ASSEMBLY
7
5
1210
1
1
4
5
1
14
13
6
4
7
11
13 14
12
10
4
2
2
1
6
8
8
3
C
L
A
K
9
5 (x 2)
7 (x 4)
12 (x 2)
14 (x 2)
