Tinyhawk II
7
emax-usa.com
stick right to enter “SET” and choose “YES” and turn ROLL stick right to save setting
parameters, as shown in Figure 5.
5. In the menu of VTX SA, moving cursor to "CONFIG" to enter menu; While moving
cursor to "PIT FMODE" and pulling ROLL stick right can turn off the VTX power, as
shown in Figure 6.
NOTE: Because the VTX module offers power setting of 25mW / 100mW / 200mW
by default the Betaflight OSD displays 25mW, 200mW and 800mW as power options
If you wish to have the VTX at 100mW setting select > 200mW
If you wish to have the VTX at 200mW setting select > 800mW

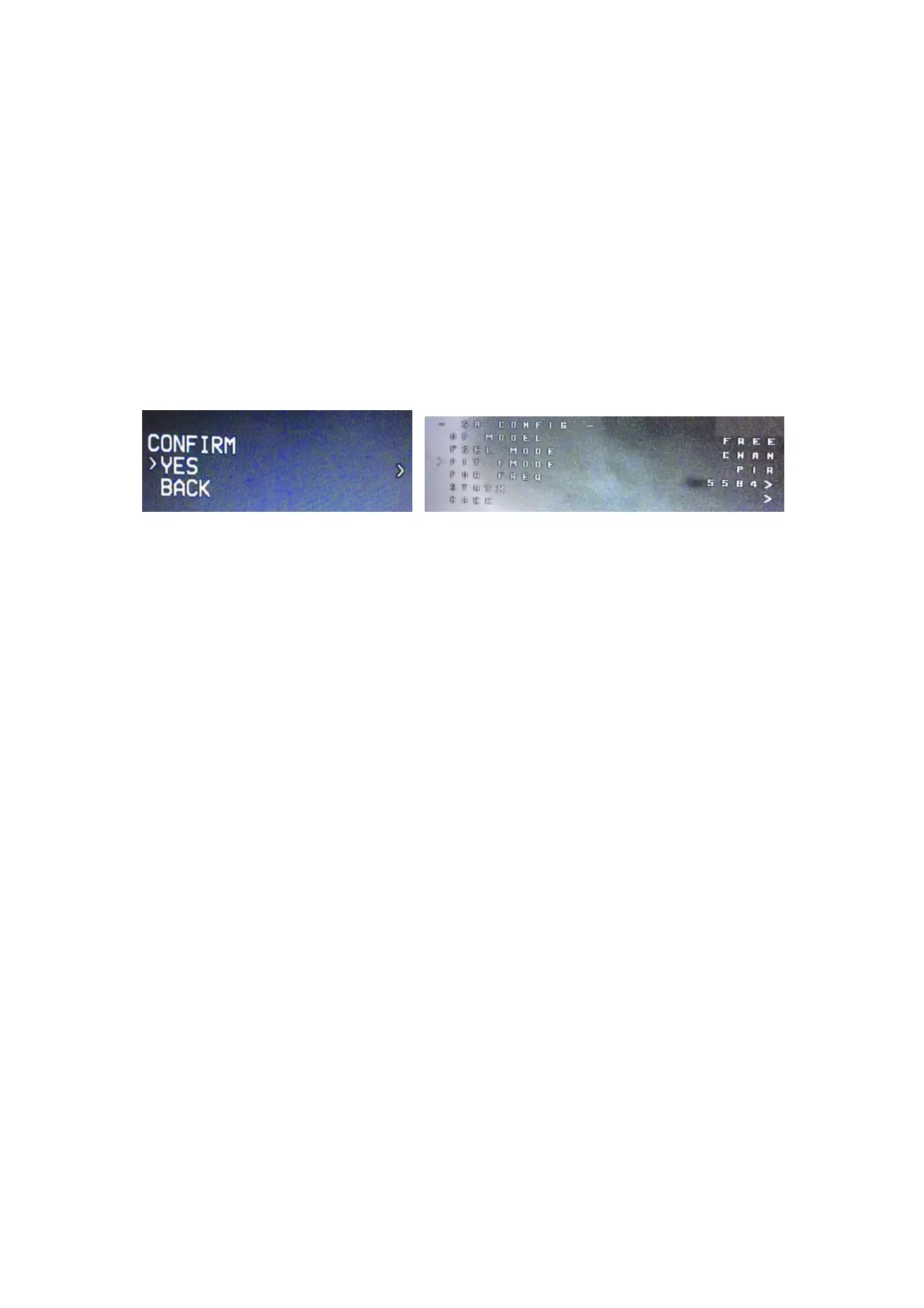

Figure 5 Figure 6
