Tinyhawk III Plus Freestyle
1.3.6 Trainer Port & Simulator
Insert one end of a 3.5mm male-to-male cable into the trainer port (3.5mm
audio interface) and the other end into a simulator (sold separately) to output
corresponding channel values. Insert a Type-C data cable into the transmitter to
output corresponding channel values.
1.3.7 Battery & Charging
The E8 Transmitter (ELRS-2.4G) is compatible with a single 18650 battery
with an operating voltage range of 4.2V-3.7V. When reinstalling the battery,

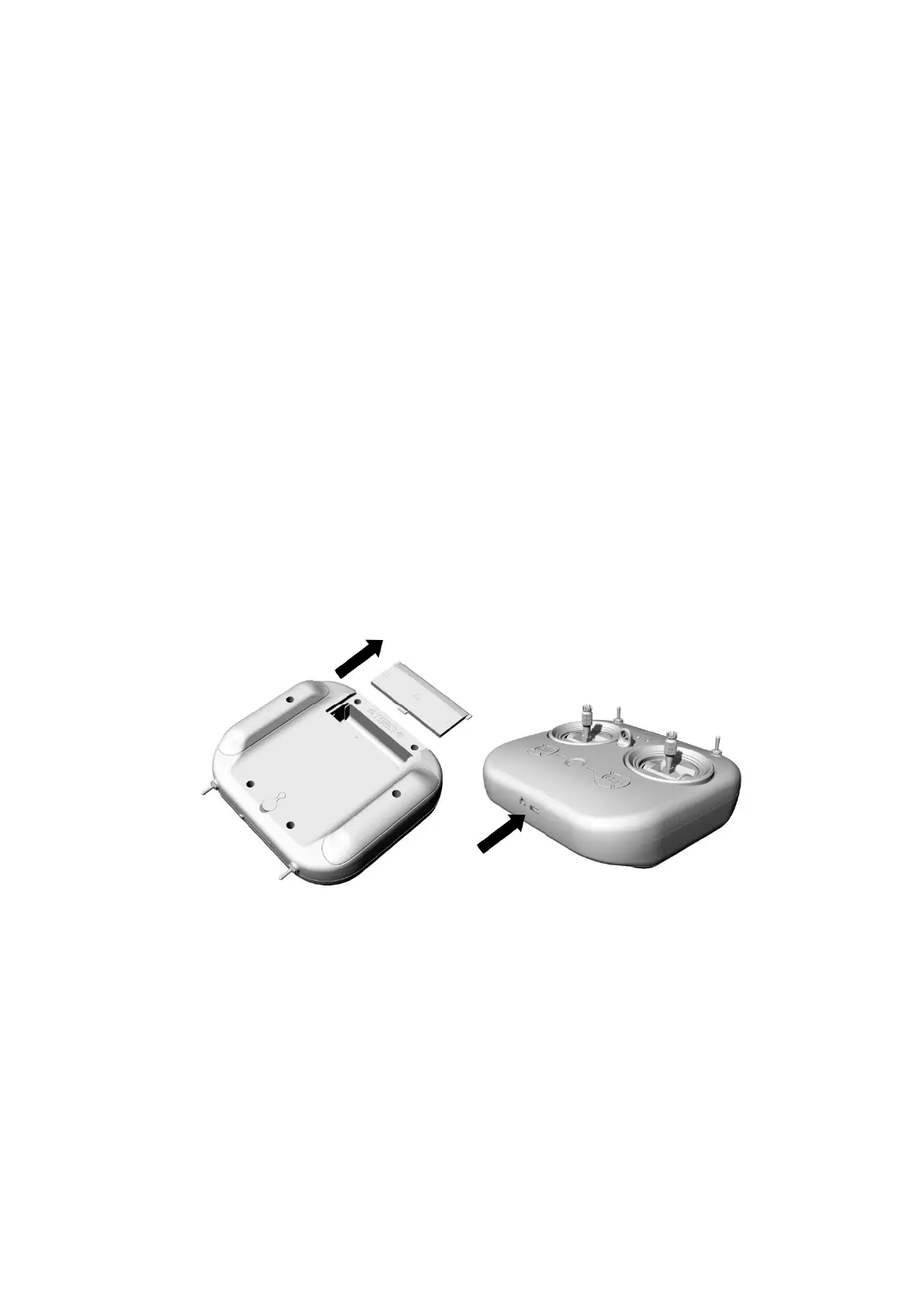

slide the battery compartment cover backwards. Install the battery with the
correct polarity (negative end on the side with the spring in the battery
compartment). Ensure the battery compartment cover aligns perfectly and push
it forward until it locks. If the battery is installed incorrectly, charging and
powering on might not work properly. Charge the transmitter using the bottom
Type-C port. The power charging indicator light states are as follows:
Solid red light: Charging in progress
Solid green light: Charging complete Note: Use a 5V-1A adapter and a
Type-C cable for charging. An alarm might sound when the voltage is low (3.7V);
ensure timely charging.
