LED Quantity State Meaning
Solid green Indicates ac power and normal acitvityPower supply on/off 1 per power supply
Off No ac power
Solid amber Indicates a cooling faultCooling fault 1 per power
supply/system cooling
module
Off Indicates blower is operating normally

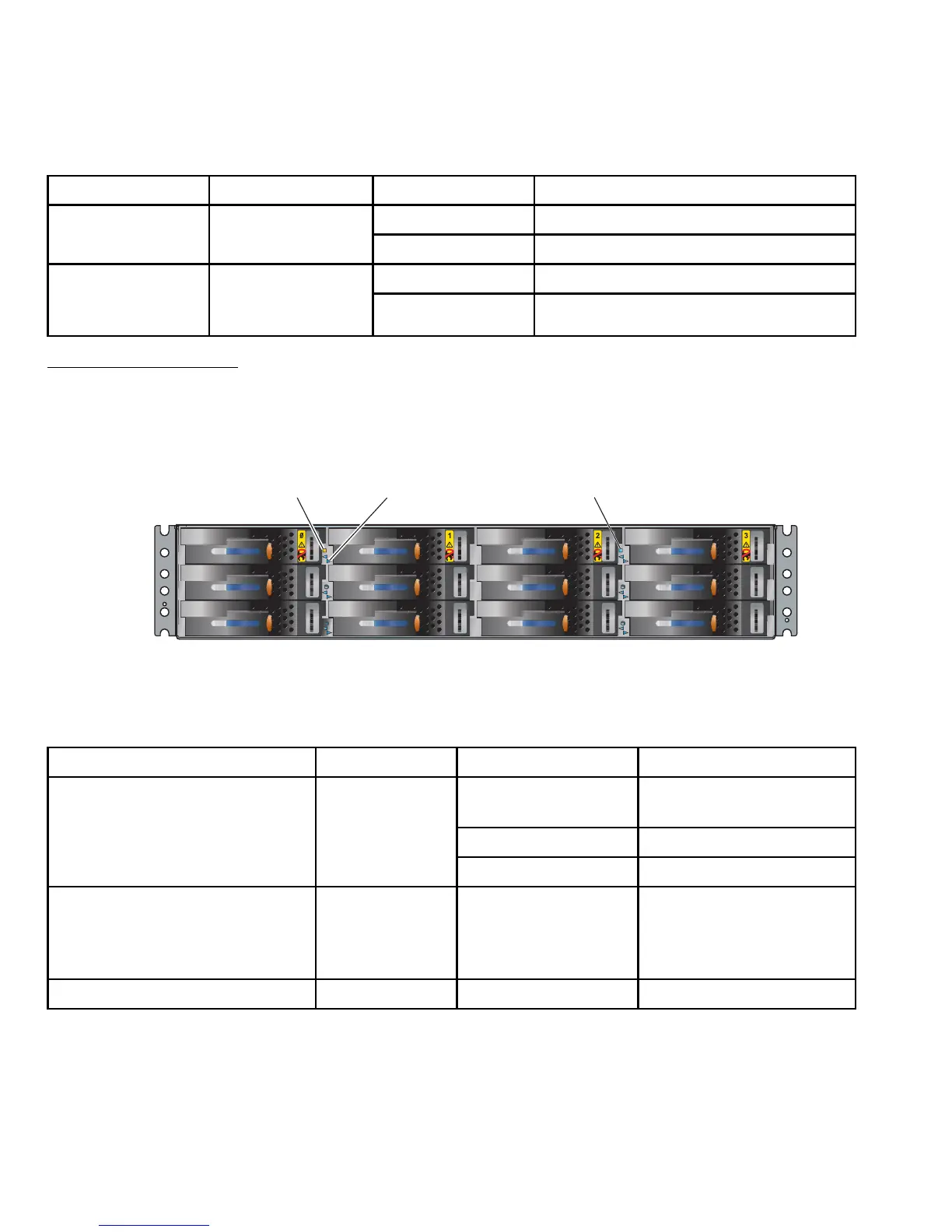

DAE-AX status lights and indicators
Figure 15 and Table 3 display the meaning of the status lights on the
front of a DAE-AX:
SN:1234ABCD1234ABC
123 BPS
PN:123456789 REV123
SATA
Disk drive
activity
System
fault
System
power
CL3917
Figure 15
Status lights visible from the front of a DAE-AX
Table 3 DAE-AX status lights visible from the front
LED Quantity State Meaning
Blue The drive is online with Flare
(flickers with activity)
Alternating blue/amber Indicates drive is faulted
Disk drive activity 1 per disk drive
Solid amber Drive is faulted
System fault 1 per DAE-AX Amber Enclosure has a faulted
component. Check disk and
rear status lights; check software
event monitor
System power 1 per DAE-AX Blue AC power, normal activity
Figure 16
and Table 4 display the status lights visible from the rear of
aDAE-AX:
Hardware and Operational Overview
17
