Removing an LCC
!
CAUTION
A DAE must have at least one LCC installed while it is powered up.
Do not remove both LCCs while the disk enclosure is powered up.
1. Remove each copper cable connected to the LCC by gently pressing
the connector latches to release the cable (Figure 1).
Note where the cables connect to the LCC; you will need to reconnect them
to the replacement LCC.
!!
!!
!
E
X
P
P
R
I
E
XP
PR
I
#
!
E
X
P
P
R
I
EX
P
PR
I
#
A
B
EMC3212
PRI
Connector
PRI
PRI

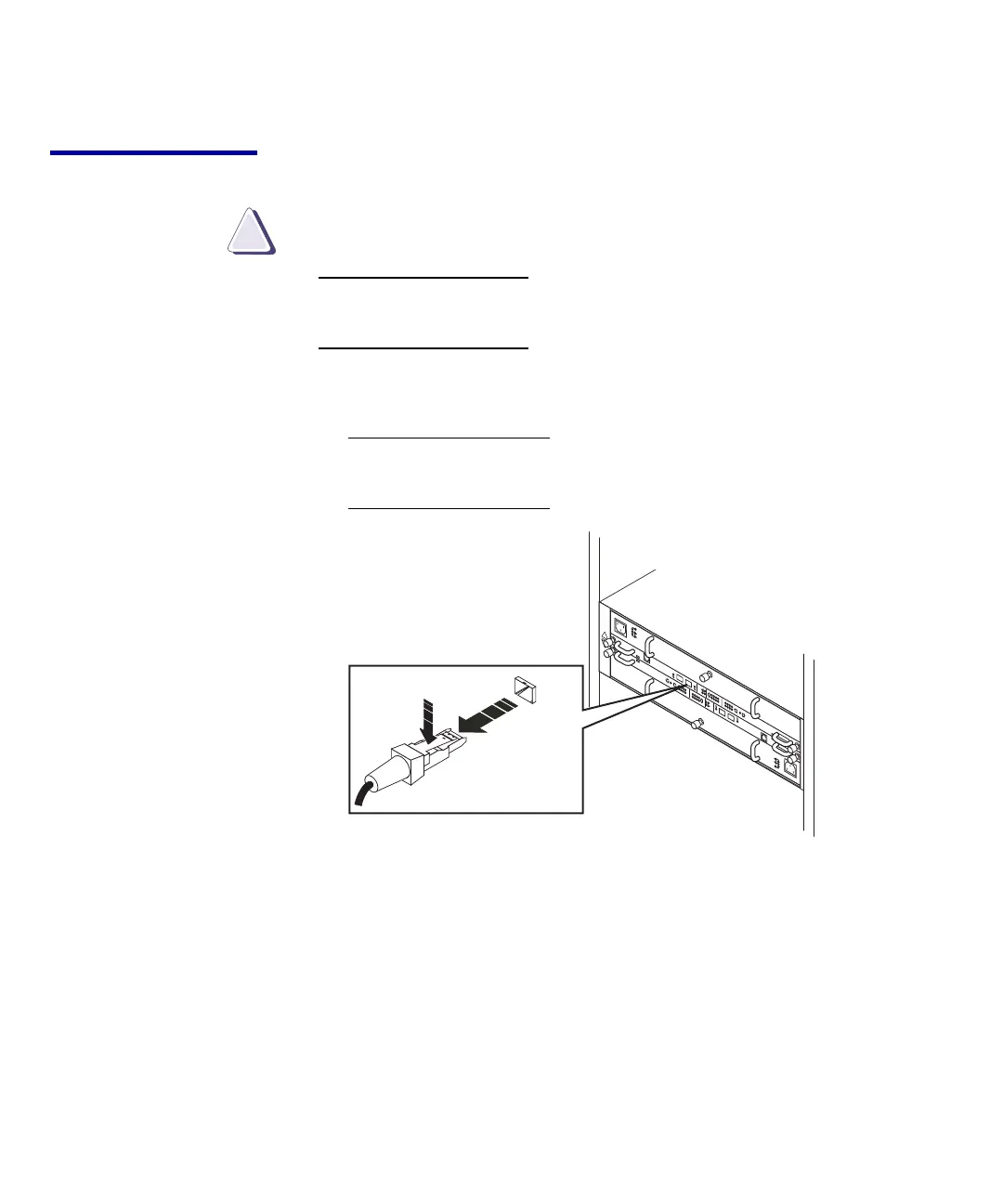

Figure 1
Removing a copper cable from an LCC (PRI cable shown)
2. Turn the captive screws counterclockwise to release the module,
andthenremovetheLCCfromitsslot(Figure2).
4
Replacing a DAE2P/DAE3P LCC Module
