EMC® VNX5300™ Hardware Information Guide
4
EMC® VNX5300™ Hardware Information Guide
VNX5300 Block and File front and rear views
This section shows an example of the front and rear views of a Block and File
VNX5300 platform.
Note: A fully configured Unified VNX5300 platform includes up to seven 3U DAEs (a
maximum of 120 3.5-inch disk drives) or up to four 2U DAEs (a maximum of 125 2.5-inch disk
drives).
Front view
Figure 2 shows an example of the front view of a Block and File VNX5300 platform
having a dual SPS; a 3U, 15 (3.5-inch) disk drive DPE; two Control Stations (one
optional); and one Data Mover Enclosure with two Data Movers
2
. Each Data Mover
includes two power supply/cooling (fan) modules and one CPU module.

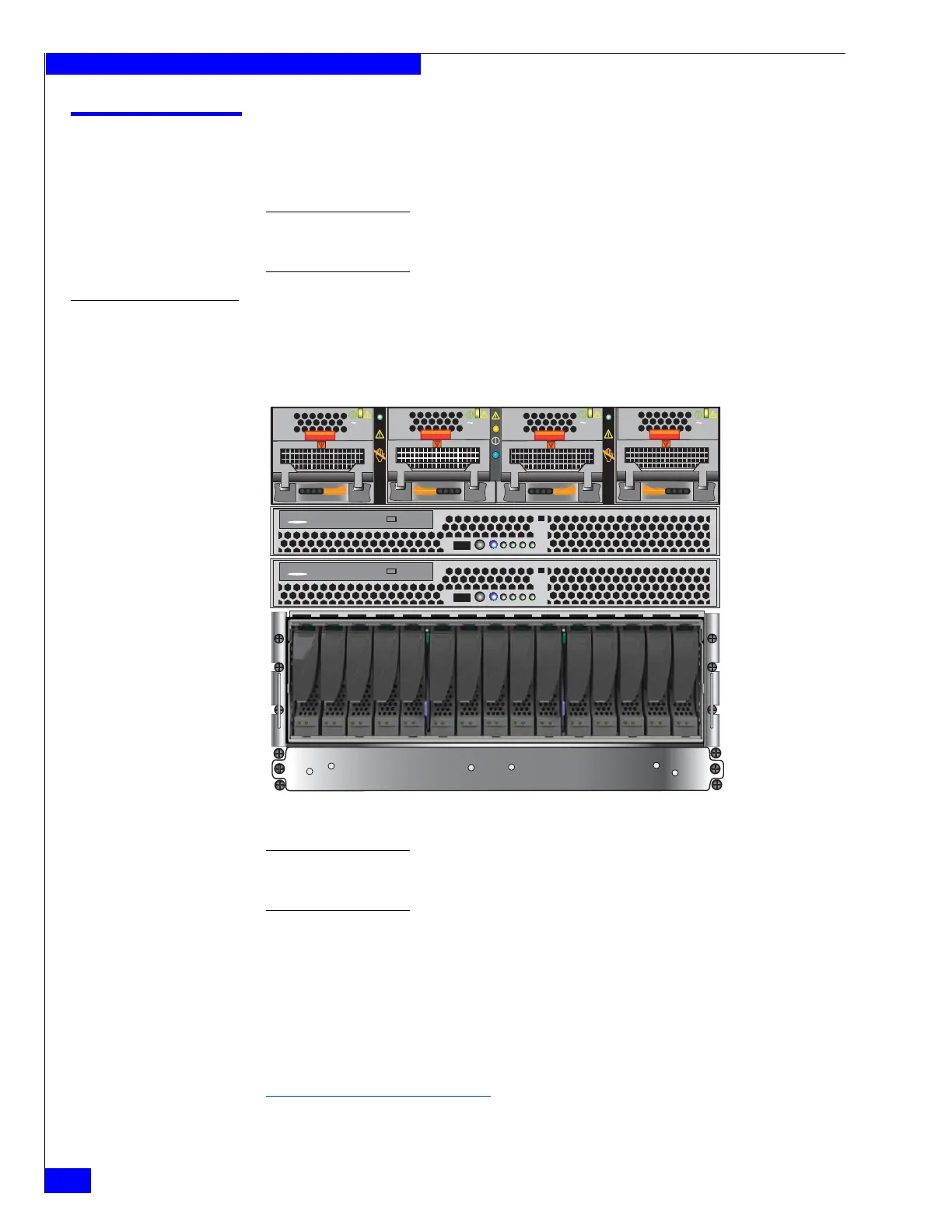

Figure 2 Example of a Block and File VNX5300 platform with a 3U, 15 DPE (front view)
Note: Figure 2 and Figure 3 on page 5 are examples of a Block and File VNX5300 platform
(front and rear views). These figures are example of what a Block and File VNX5300 platform
looks like and are for illustrative purposes only.
2. The term Data Mover is used throughout this guide. The term Data Mover is also referred to
as a blade. These terms are interchangeable and basically mean the same.
DVD
3U, 15 (3.5-inch)
disk processor
enclosure (DPE)
SPS
VNX-000562
DVD
Control Station 0
Control Station 1
(optional)
AC
AC
AC
AC
Data Mover
Enclosure 0
