Emec Centurio PRO - Page 37

37

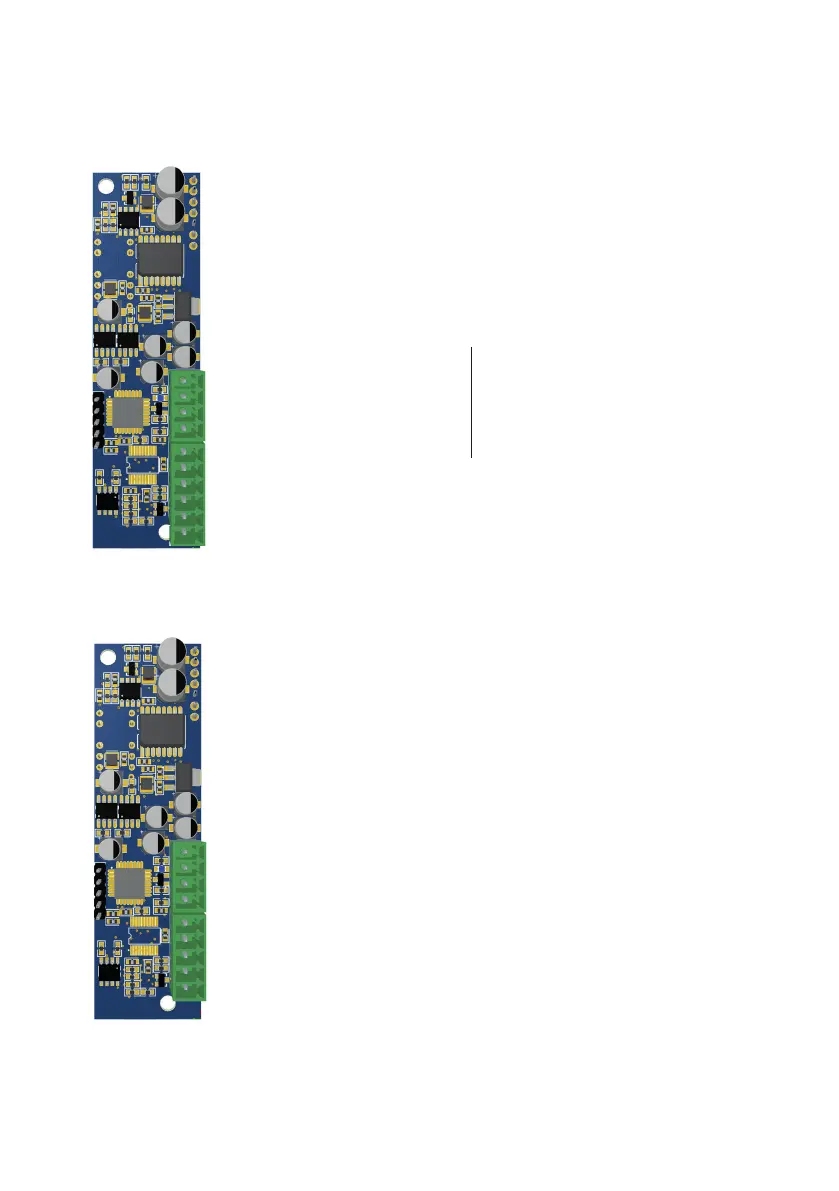

Appendix - Probes Modules
POTENTIOSTATIC
This module is suitable for POTENTIOSTATIC probe:
1) PT100: Yellow wire
2) PT100: White wire
3) PT100: Brown wire
4) PT100: Green wire
5) n/a
6) n/a
7) Probe Type 1: Blue + Yellow n/a
8) Probe Type 1: Brown Probe Type 2: Grey Transparent
9) Probe Type 1: White Probe Type 2: Shield
10) Probe Type 1: Green Probe Type 2: Black
1
2
3
4
5
6
7
8
9
10
TURBIDITY
This module is suitable for TURBIDITY probe:
1) PT100: Yellow wire
2) PT100: White wire
3) PT100: Brown wire
4) PT100: Green wire
5) Torb Probe: Red wire
6) Torb Probe: Black + Blue wires
7) n/a
8) Torb Probe: White wire
9) Torb Probe: Yellow wire
1
2
3
4
5
6
7
8
9
