Emec Centurio PRO - Page 36

36
Appendix - Probes Modules
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9

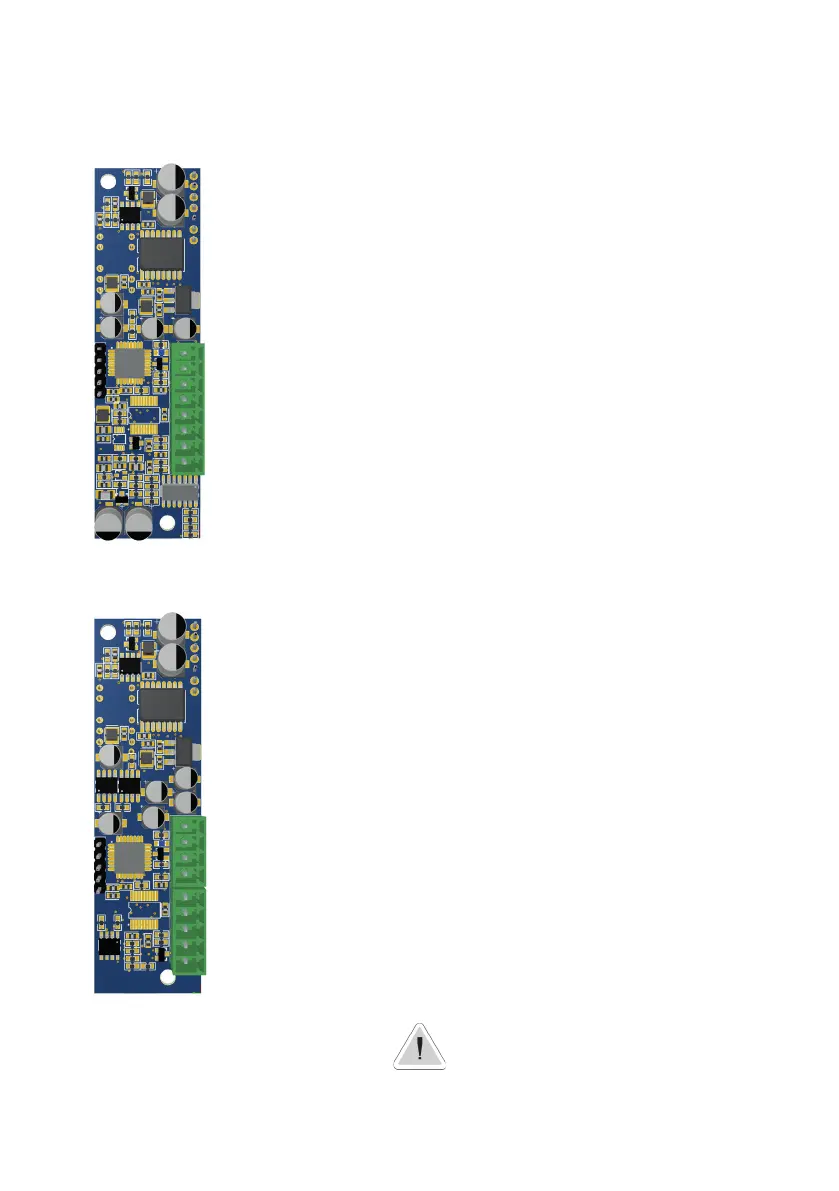

This module is suitable for SVCL PROBE (suitable also for OPEN CELLS ECL6):
1) -12VDC white wire SVCL probe
2) +12VDC brown wire SVCL probe
3) PT100 yellow wire
4) PT100 white wire
5) PT100 brown wire
6) PT100 green wire
7) +mV SVCL probe green wire (or ECL6 red wire)
8) -mV SVCL probe yellow wire (or ECL6 black wire)
This module is suitable for following probes:
SCL
1) PT100 yellow wire
2) PT100 white wire
3) PT100 brown wire
4) PT100 green wire
5) n/a
6) GND SCL black wire
7) +5VDC SCL red wire
8) -RS485 SCL green wire
9) +RS485 SCL white wire
*without extra plug cable
DISSOLVED OXYGEN*
1) PT100 yellow wire
2) PT100 white wire
3) PT100 brown wire
4) PT100 green wire
5) DO probe yellow wire
6) DO probe grey wire
7) DO probe brown wire
8) DO probe white wire
9) DO probe rose wire
Warning: Connections must be perfomed by qualified and trained personnel only
CL
CLDO
