Emec Centurio PRO - Page 35

35

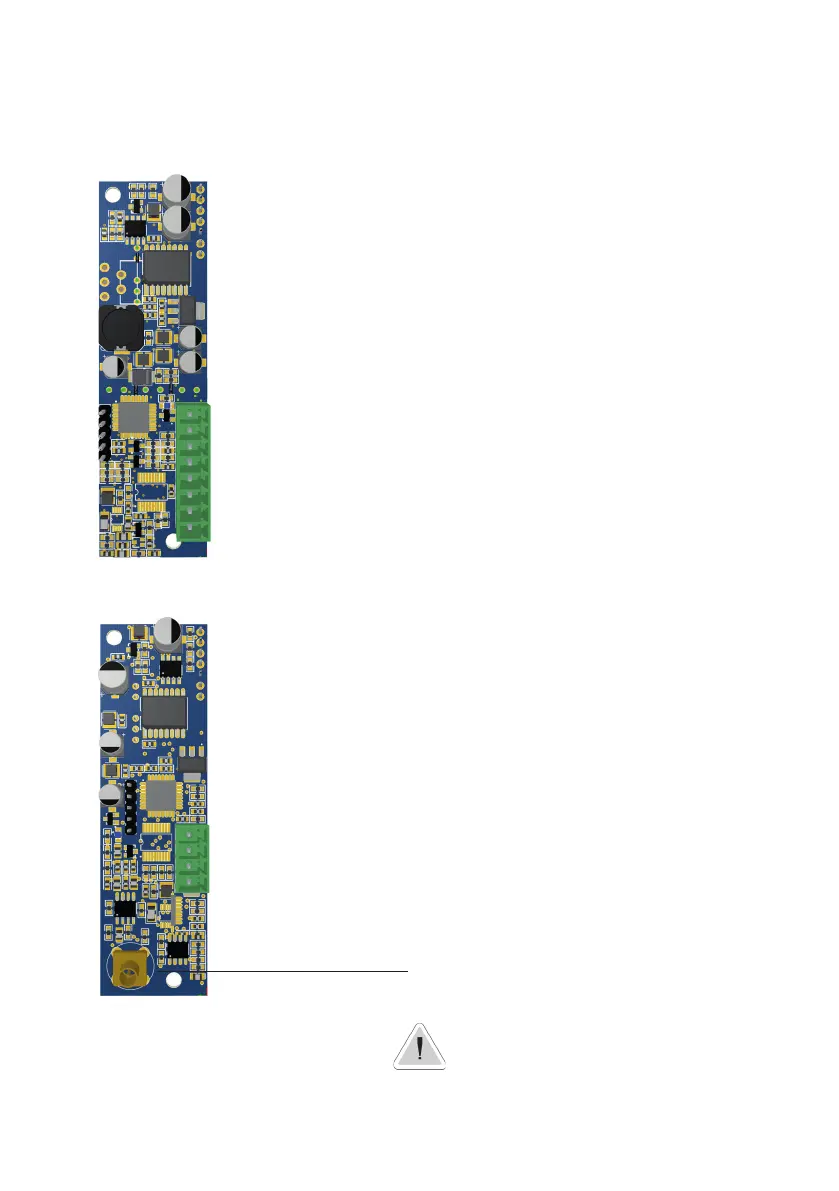

Appendix - Probes Modules
1
2
3
4
5
6
7
8
1
2
3
4
Connection for CD INDUCTIVITY PROBE
1) n/a
2) PT100 green wire
3) PT100 orange or pink wire
4) PT100 white wire
5) PT100 yellow wire
6) PROBE power supply red wire
7) PROBE signal grey wire
8) PROBE gnd blue and black wire
Connection for CD INDUCTIVITY PROBE mod. “S”
1) n/a
2) PT100 white wire
3) PT100 white wire
4) PT100 black wire
5) PT100 black wire
6) PROBE power supply red wire
7) PROBE signal green wire
8) PROBE gnd blue wire
This module is suitable for pH / ORP / Fl probes
1) PT100 yellow wire
2) PT100 white wire
3) PT100 brown wire
4) PT100 green wire
Probe Input
Warning: Connections must be perfomed by qualified and trained personnel only
CDIND / CDINDS
pH
