Emerson 2120 - Page 6

December 2016
6
Quick Start Guide

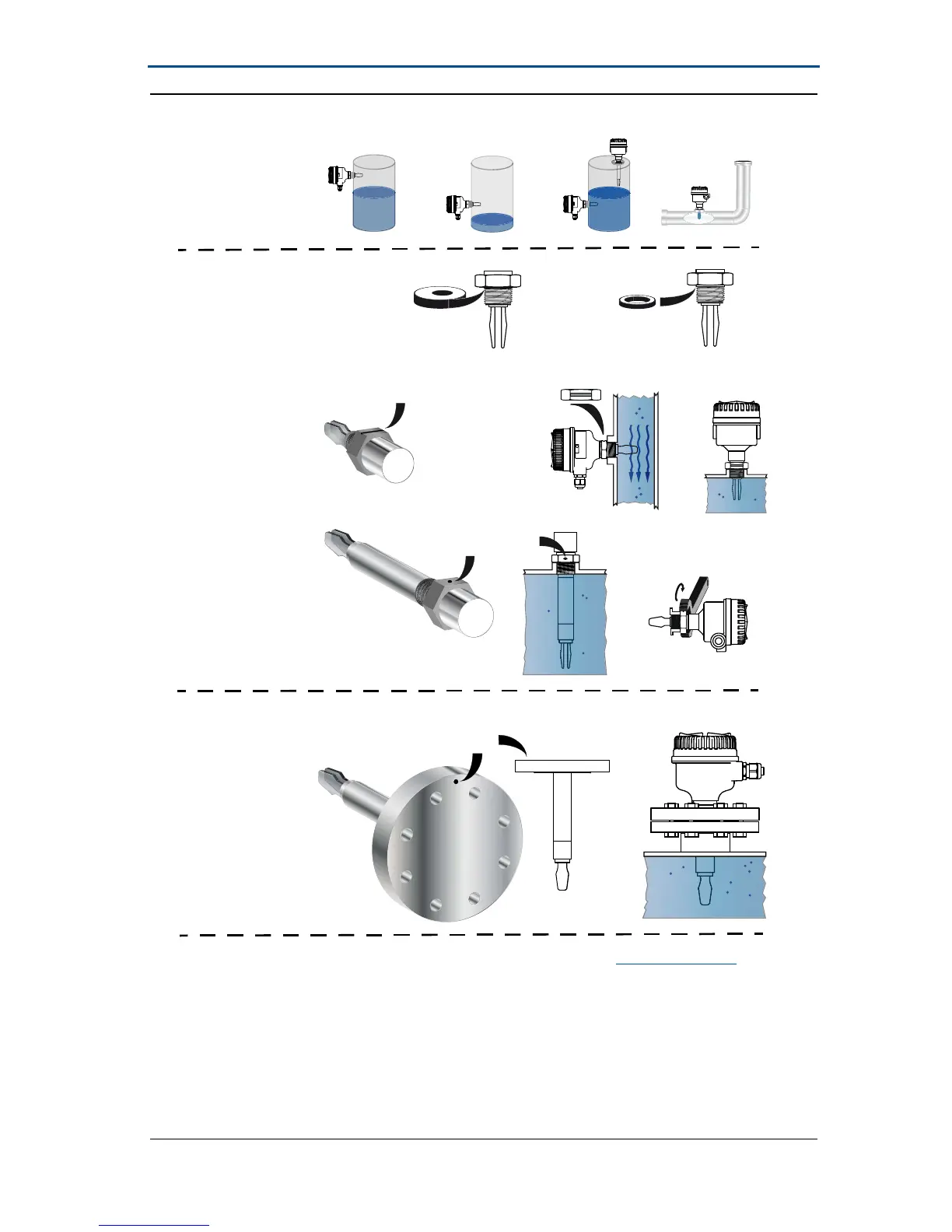

Figure 5. Example Installations
A. PTFE for NPT and BSPT (R) thread D. Fork alignment notch
B. Gasket for BSPP (G) thread E. Fork alignment notch
C. Fork alignment groove
A
E
C
B
D
Threaded
installation
Flanged
installation
D
Tri Clamp
installation
See the Rosemount 2120 Quick Release Kit Quick Start Guide
for
general Tri Clamp installation instructions.
See also “Instructions for hygienic installations” on page 26 for
hygienic installation requirements.
