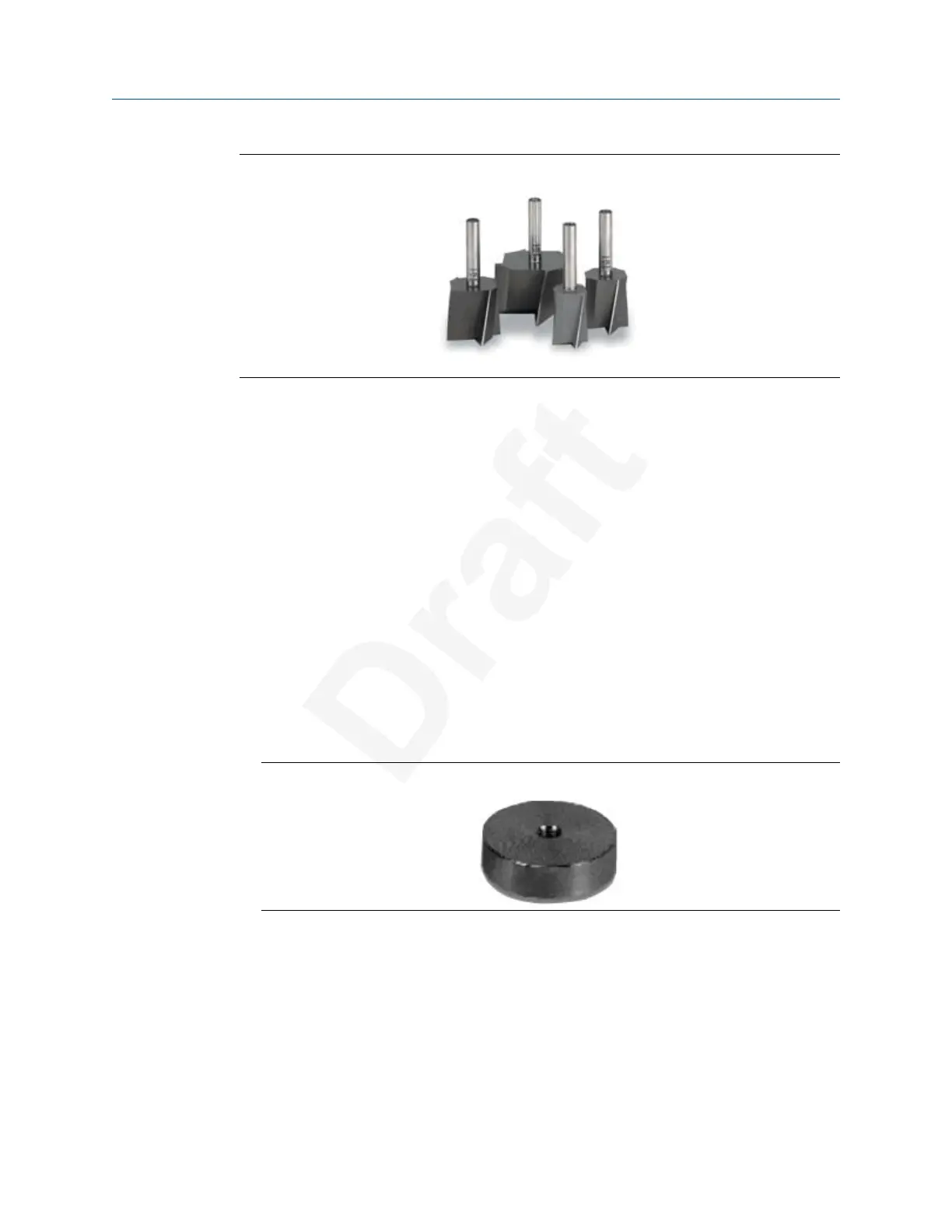

Figure 3-1: Spot face or end mill tool
Attachment tools and supplies
• 40-200 inch-lb torque wrench with 1/8 in. hex bit
Suggested vendor: Grainger (P/N 4YA74)
Description: 3/8" drive inch-lb torque wrench. You can substitute with any torque
wrench with a range of 40 to 70 inch-lb and less than 5 inch-lb increments.
• 1/4-28" taps and tap handle
• 9/16" open-end wrench
• 1/8" hex Allen key
• Wire brush
• Plant-approved cleaner/degreaser
• Plant-approved semi-permanent thread locker (e.g. Loctite)
For epoxy mount, you also need the following:
• 2-part epoxy
• A212 Mounting Pads
Figure 3-2: A212 mounting pad
• (Optional) Grinder – to create a sufficiently flat mounting surface
For motor fin mount, you also need the following:
• Motor Fin Mount Probe
• Epoxy
3.3
Mounting mechanisms
The device may be mounted using any of these mounting mechanisms:
