21
C onne c t i on s and C ab li ng

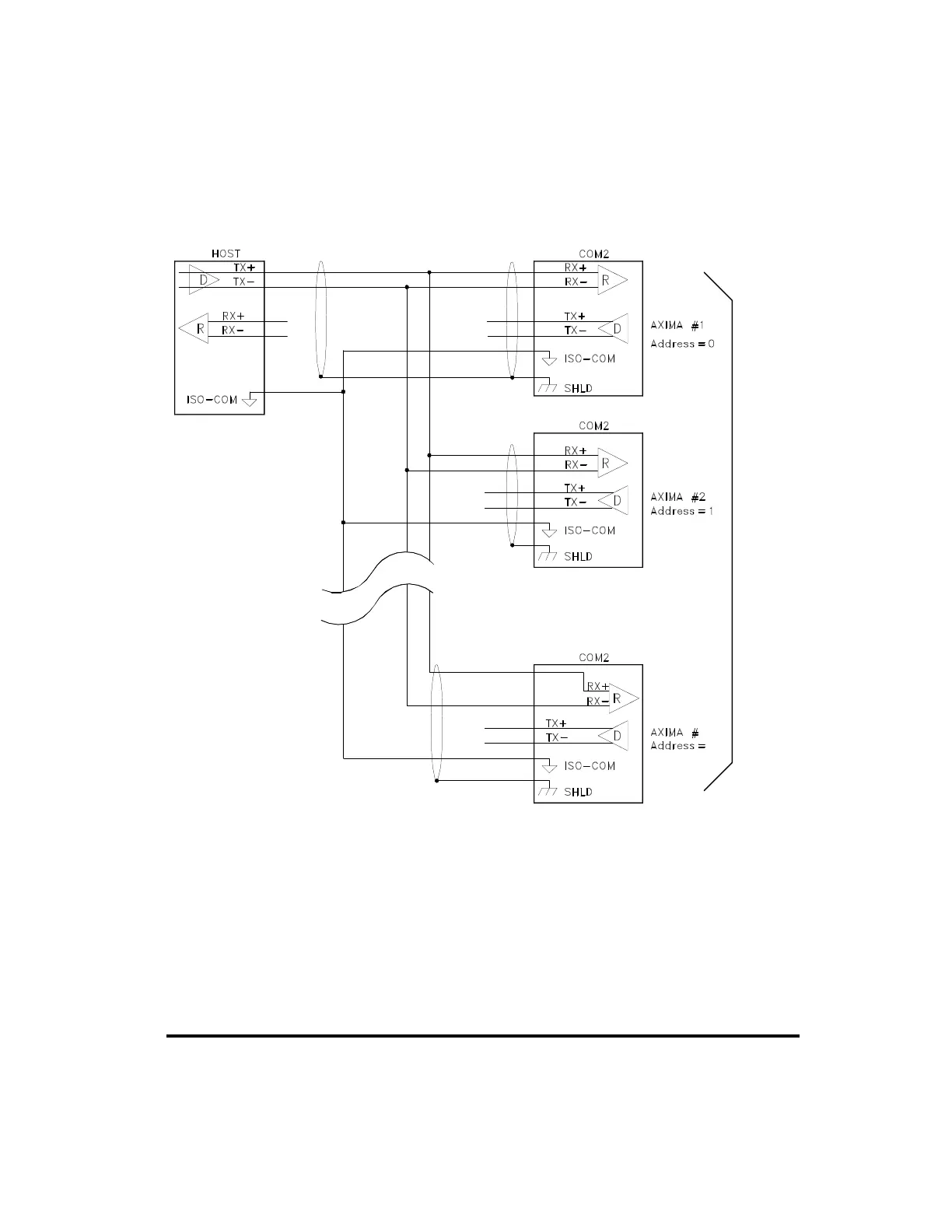

T h e f i g u r e b el o w s h o w s a w i r i n g d i a g r a m f o r s e r i a l c o mm un i c a t i o n s
o f a R S 422 c o n f i g u r a t i o n .
F i g u r e 13 R S 422 W i r i n g D i a g r a m
N O T E : A s t a nd ar d R S - 422 ho s t t ra n smi tt er ca n d rive up to 10
slaves. Ho wever, th e A X I MA t ra n smi tt er ca n d rive up to 32
slaves i n R S - 422 m od e.
15
F
NC
NC
T YPI C ALLY
U P T O 10
SLAVES
SEE N O T E
BELO W
NC
NC
