14
U.L. Model No.: 52-ANT

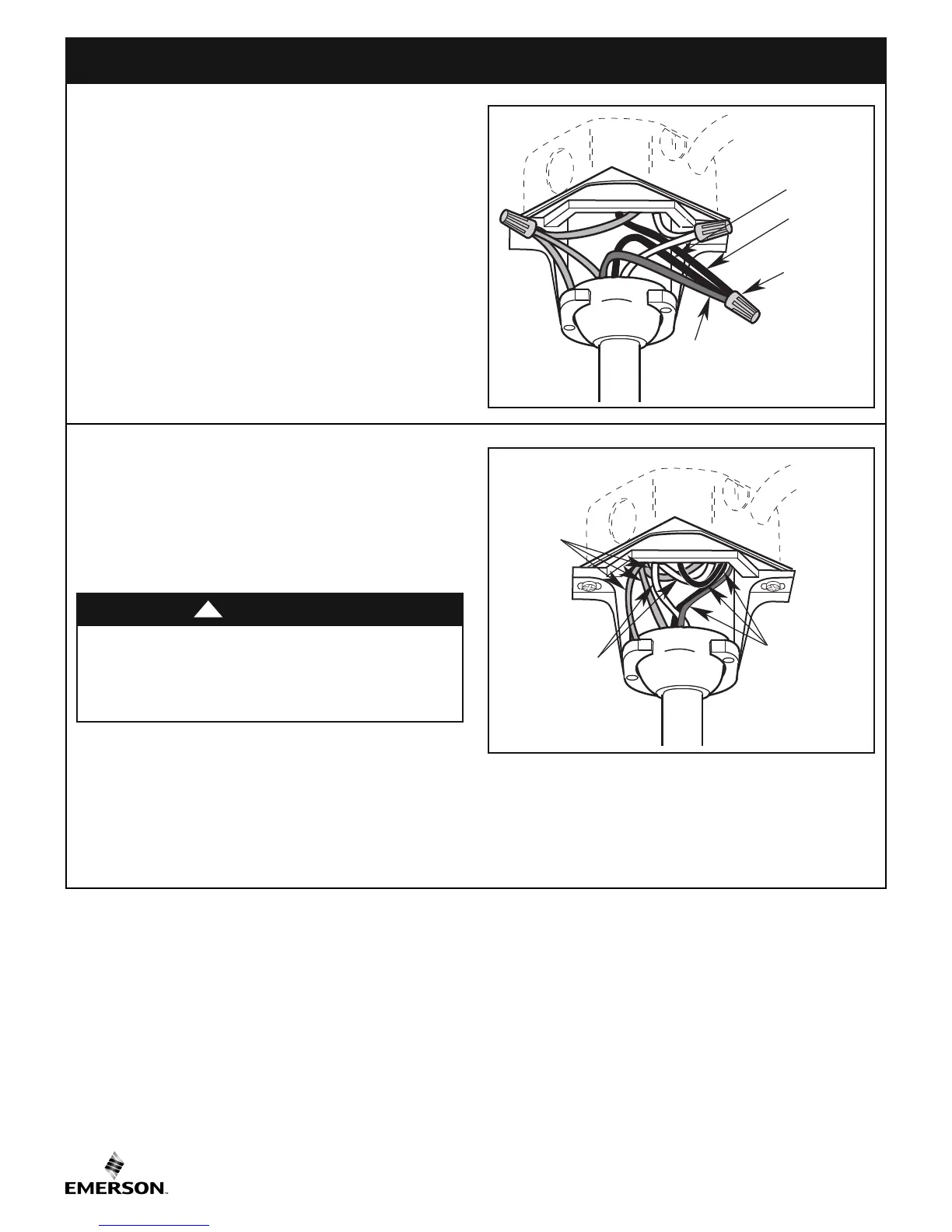

5. How to Wire Your Ceiling Fan (Continued)
F
AN MOTOR
BLACK WIRE
SUPPLY
BLACK
(HOT)
FAN MOTOR
BLUE WIRE
LISTED WIRE
CONNECTOR
Figure 18
5.3
Securely connect the fan motor black wire and blue
wires to the supply black (hot) wire using wire
connector (supplied) (Figure 18).
BLACK &
BLUE WIRES
WHITE WIRES
GREEN
WIRES
Figure 19
5.4
After connections have been made, turn leads upward
and carefully push leads into the outlet box, with the
white and green leads on one side of the outlet box and
position the black and blue leads on the other side of
the outlet box (Figure 19).
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
To Next Page
