4. Installing the Hanger Ball/Downrod Assembly
(For Standard Mounting)
4.2
Separate, untwist and unkink the three motor leads.

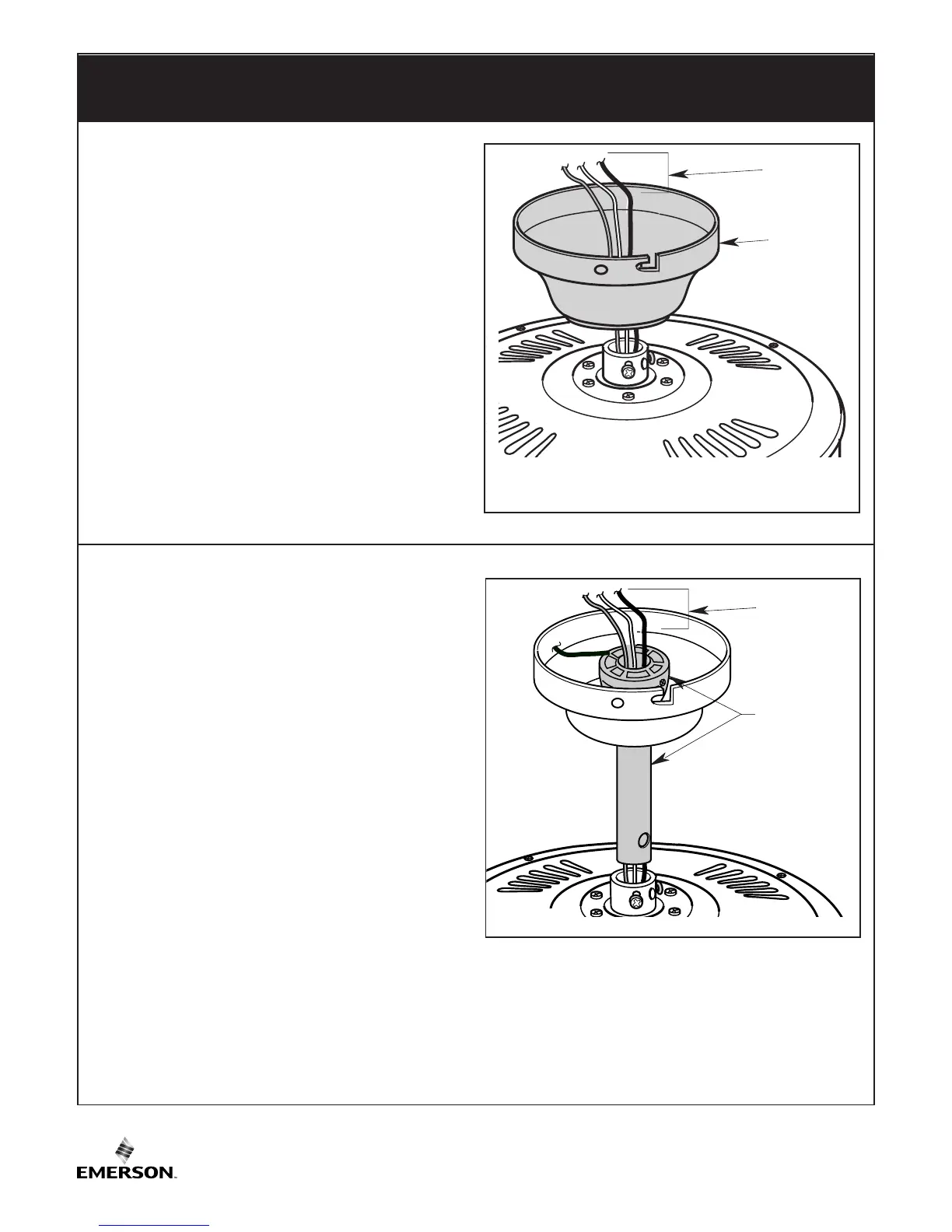

Route the motor leads through the hanger ball/downrod
assembly (Figure 3).
HANGER
BALL/4.5"
DOWNROD
ASSEMBLY
THREE 42"
MOTOR LEADS
Figure 3
THREE 42"
MOTOR LEADS
CEILING
COVER
4.1
Pass the 42" motor leads through the opening in the
c
eiling cover.
Be sure the cover is oriented correctly (Figure 2).
Figure 2
