Wall Control Installation (continued)
6. Screw wall control into wall box using the supplied
screws. Leave wall control in “OFF” mode until fan
installation is completed.
7. The wall control is supplied with a white, ivory, and
almond color switch covers. Choose the finish that
best suits your needs and snap the cover onto the
wall control (Figure 18).
8. Next, install the other wall control into the wall box
containing the load wire. Connect the black wire of
the wall control to the traveler wire(s) already
connected to the black wire (in the other wall box).
Secure with wire connectors supplied.
9. Connect one black wire of the wall control to the
“load” (black) wire and secure with wire connector
supplied.
14
ETL Model No.: CF788
Check to see that all connections are tight and that
no bare wires are visible at the wire connectors.
WARNING
!

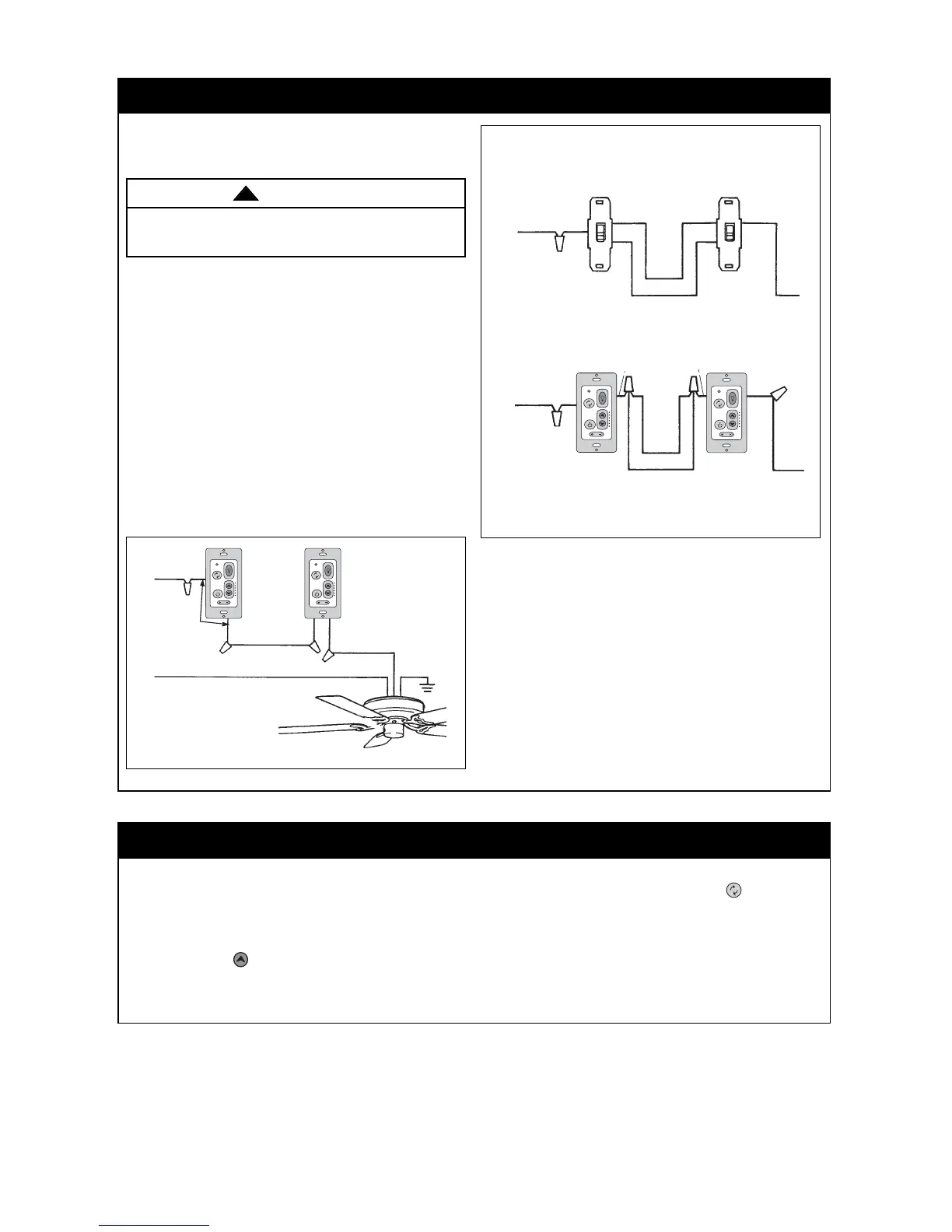

3-WAY WIRING DIAGRAM:
NEW CONSTRUCTION
STANDARD WIRING FOR EXISTING
3-WAY CONTROLS
3-WAY WIRING DIAGRAM: RETROFIT
IMPORTANT: The following steps must be
completed immediately following the
frequency programming of the ceiling fan.
1. Press the ( ) speed button until all 6 LED
indicators are lit. Let the fan operate on high
speed for 2 minutes without interruption.
2. After 2 minutes, press the reverse ( ) button and
allow the fan to operate uninterupted for
2 minutes at high speed.
3. High speed conditioning is now complete.
High Speed Conditioning of Fan Control
