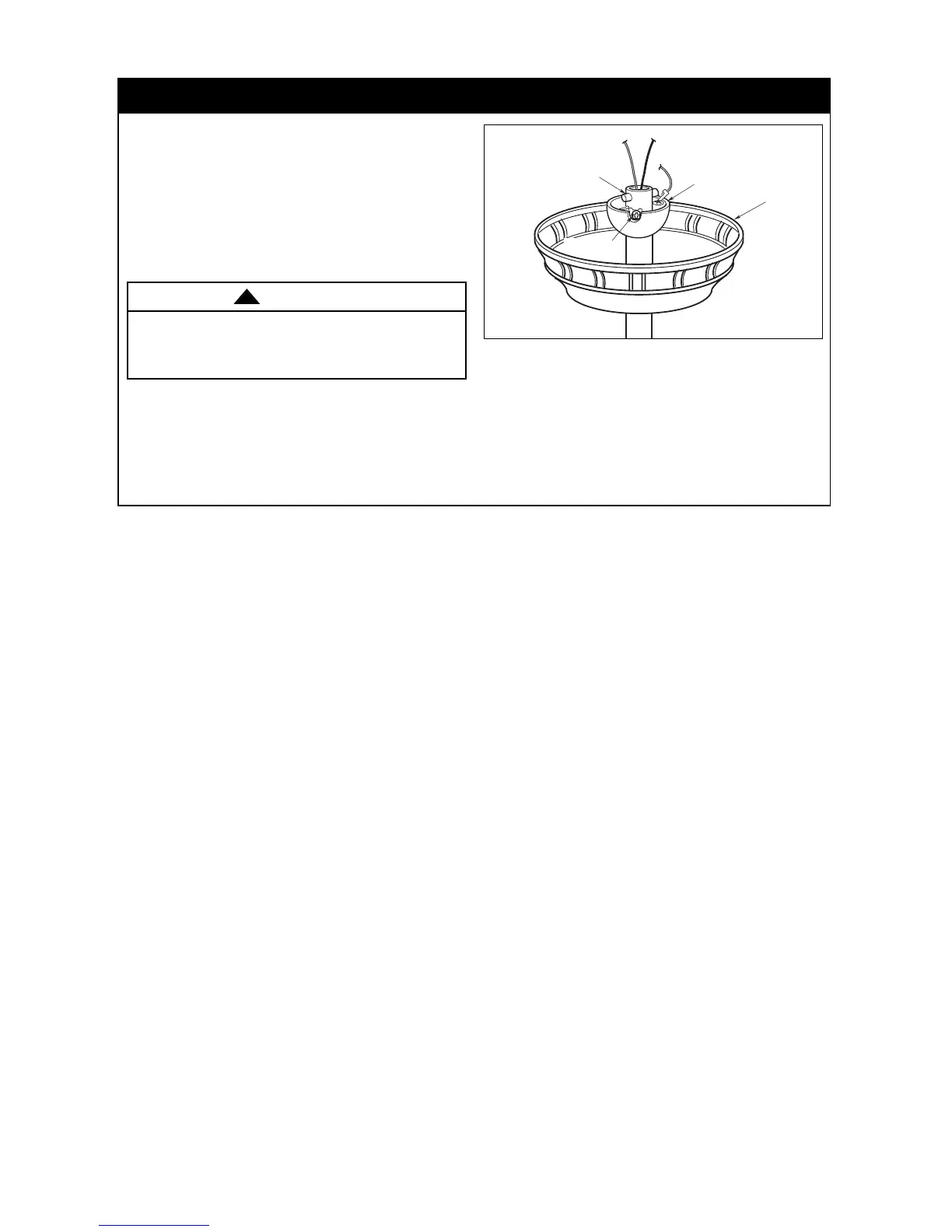

Figure 9
It is critical that the pin in the hanger ball is properly
installed and the setscrew securely tightened.
Failure to verify that the pin and setscrew are
properly installed could result in the fan falling.
WARNING
!
13. The fan comes with black and white leads that
are 80” long. Before installing fan, measure up
approximately 6 to 9-inches above top of hanger
ball/downrod assembly. Cut off excess leads and
strip back insulation 1/2-inch from end of leads.
14. You have now completed the assembly of your
new ceiling fan. You can now proceed with
hanging and wiring your fan.
9
12. Reinstall the hanger ball (Figure 9) on the
downrod as follows. Route the two 80” motor
leads through the hanger ball. Position the pin
through the two holes in the downrod and align
the hanger ball so the pin is captured in the
groove in the top of the hanger ball. Pull the
hanger ball up tight against the pin and securely
tighten the setscrew in the hanger ball. A loose
setscrew could create fan wobble.
ETL Model No.: CF788
