1. Unpacking Instructions
3
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF921
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or
accessories not designated for use with this product
by Emerson Electric Co. could result in personal injury
or property damage.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
WARNING
!
1. Check to see that you have received the following
parts:
NOTE: If you are uncertain of part description, refer
to exploded view illustration.
NOTE: Place the parts from the loose parts bags in
a small container to keep them from being lost. If
any parts are missing, contact your local
retailer or catalog outlet for replacement before
proceeding.
2. Remove the fan assembly from the protective
plastic bag. Place the fan assembly into the upper
foam pad with the top of the motor facing up.
The upper foam pad serves as a holder for the fan
during the first stages of assembly.

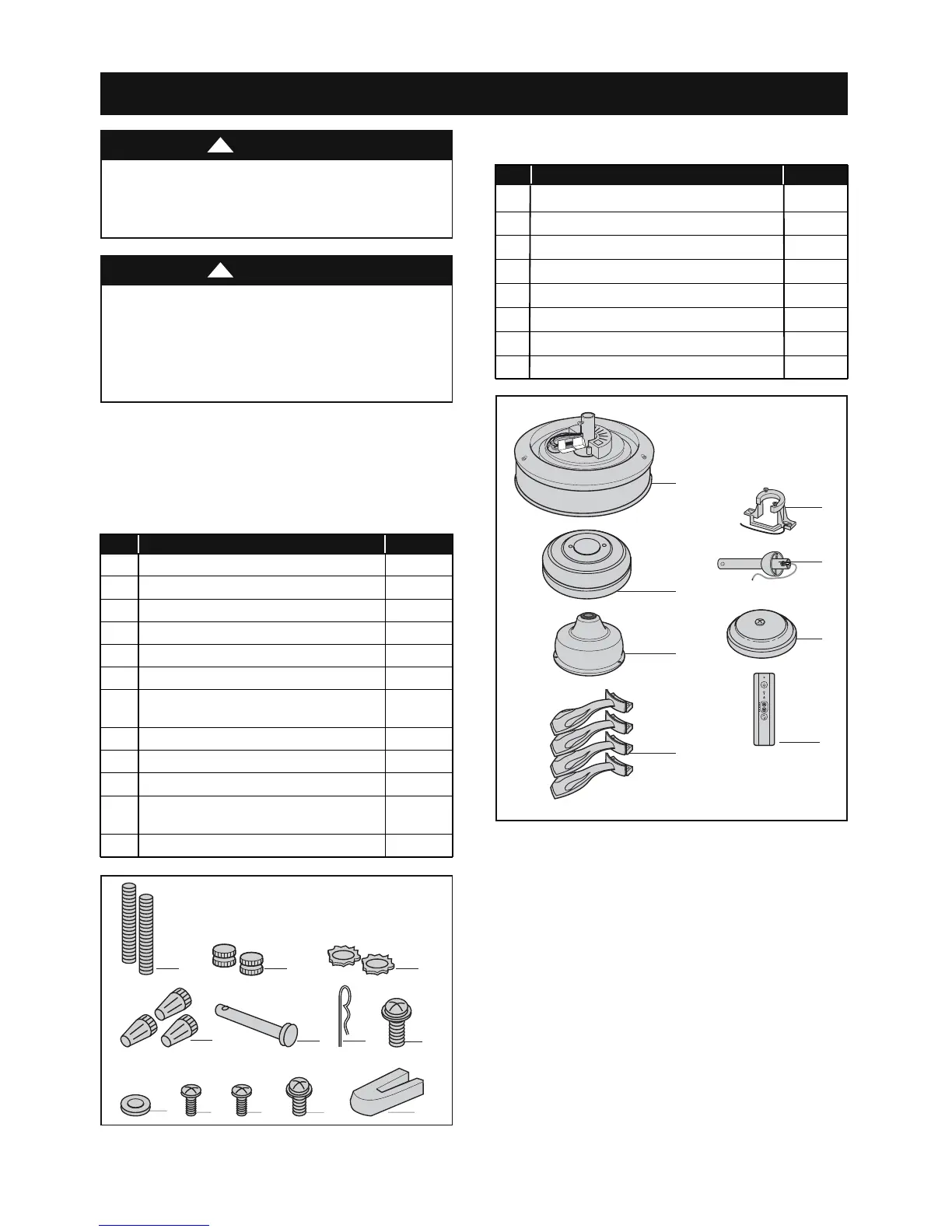

HARDWARE CONTENTS
Part Description Quantity
1 Threaded Studs, #8-32 x 1-1/4” 2
2 Knurled Knobs, #8-32 2
3 Lockwashers, External Tooth #8 2
4 Wire Connectors 3
5 Clevis Pin 1
6 Hairpin Clip 1
7 #10-24 x 12mm Washer Head
Blade Screws 21
8 16mm Flat Washers (OD) 21
9 #8-32 x 8mm Flat Head Screw (spare) 1
10 #8-32 x 8mm Pan Head Screw (spare) 1
11 1/4-20 x 14 Captive Screw with
Lockwasher (spare) 1
12 Blade Balance Kit 1
Part Description Quantity
A Fan Motor Assembly 1
B Ceiling Canopy 1
C Motor Coupling Cover 1
D Fan Blades Flanges 5
E Hanger Bracket 1
F Hanger Ball/Downrod Assembly 1
G Switch Housing Assembly 1
H Remote Control 1
