107
Installation
Analog Command Wiring

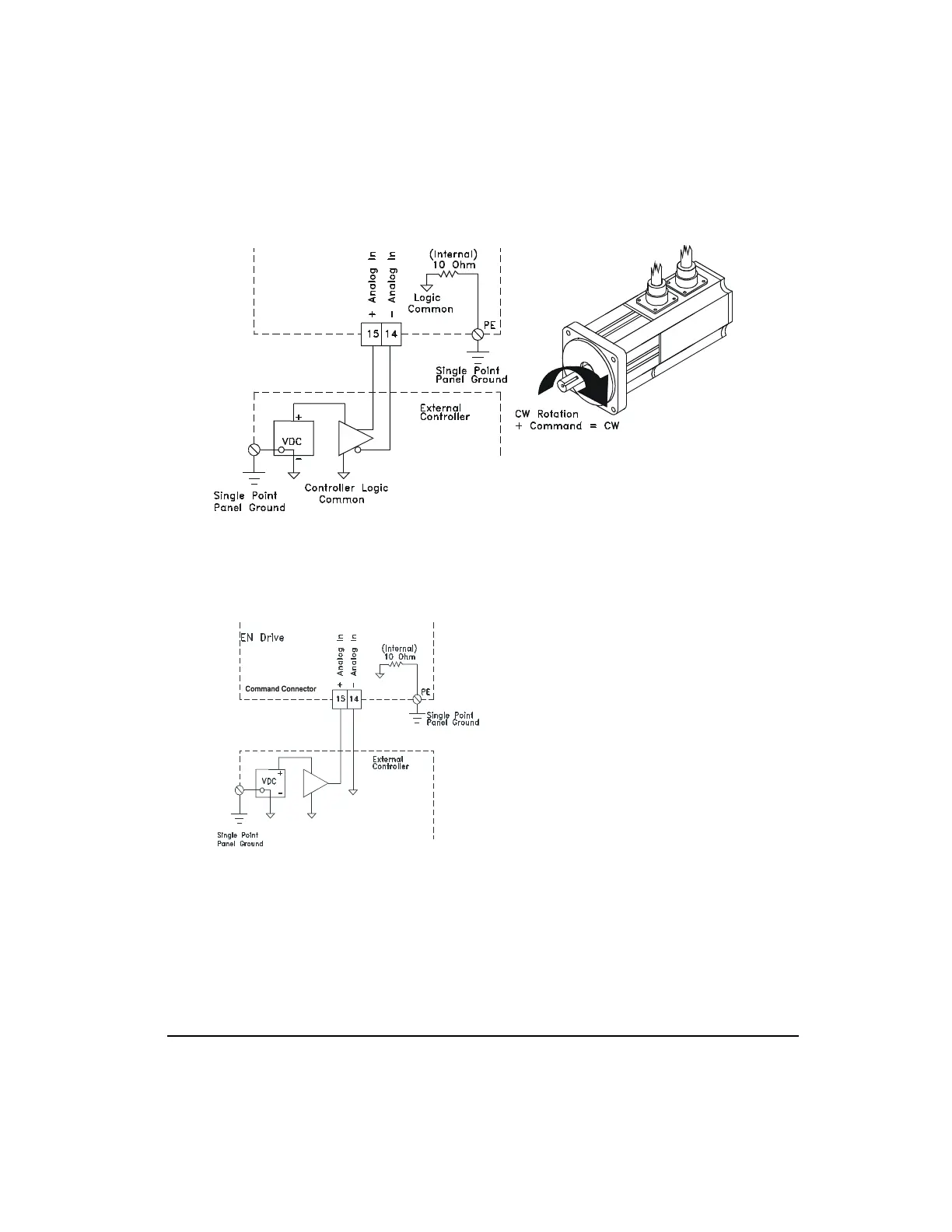

Figure 78: Analog Command, Differential Wiring Diagram
Figure 79: Analog Command, Single Ended Wiring Diagram
Encoder Output Signal Wiring
The encoder outputs meet RS-422 line driver specifications and can drive up to ten RS-422
signal receivers.
Command Connector
With positive direction = CW
