EN Drive Installation Manual
through assignments in the software. PowerTools software is an easy-to-use Microsoft®
Windows® based setup and diagnostics tool.

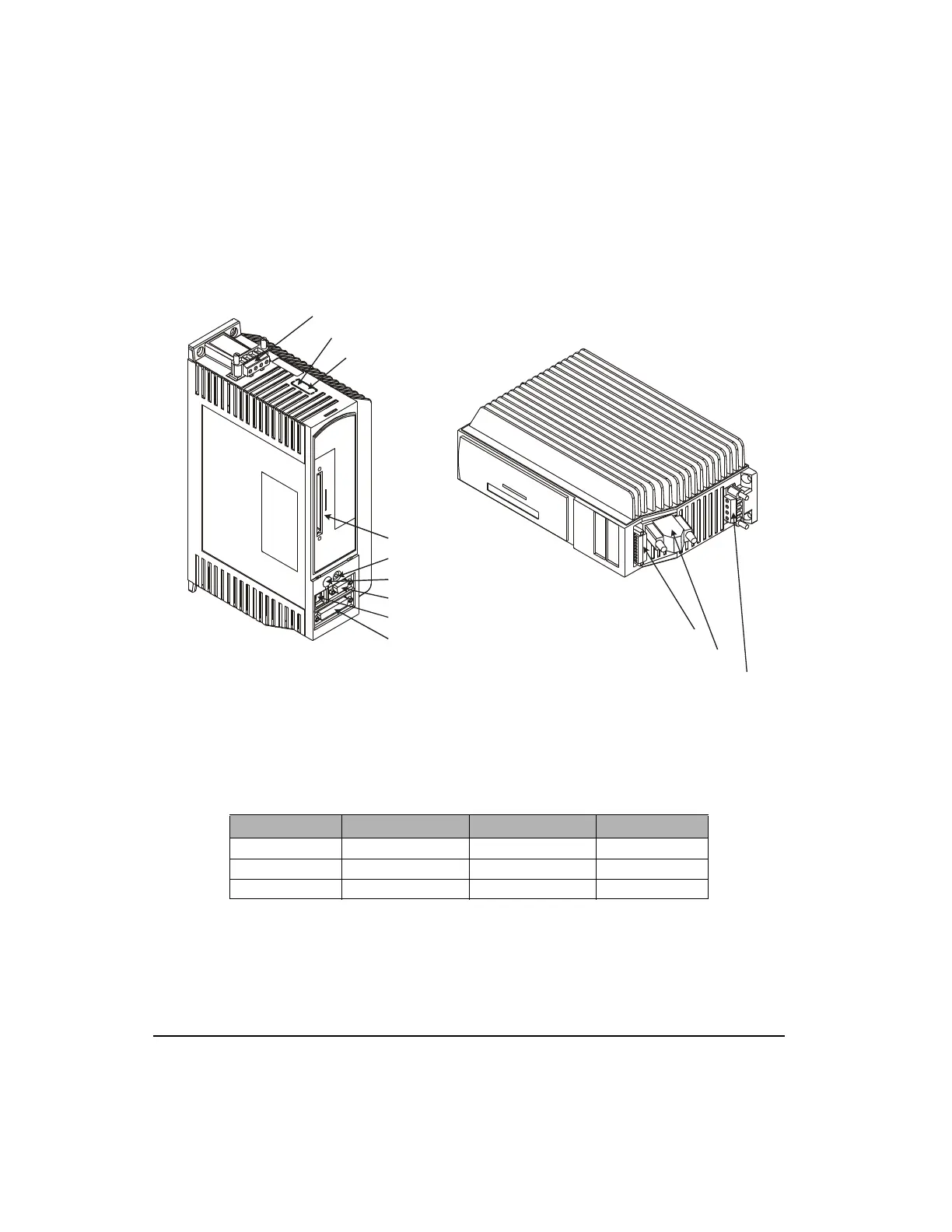

Figure 1: EN Drives Feature Location
EN Drives are rated at 90 to 264 VAC input voltage.
EN drives are available in three power ratings
The MG and NT motors that are matched to the EN
drives provide low inertia, high power to
size ratios, and encoder feedback for accurate positioning.
Drive Model Power Rating Continuous Current Peak Current
EN-204 1750 W 4.5 A RMS 9.0 A RMS
EN-208 2750 W 9.0 A RMS 18.0 A RMS
EN-214 4340 W 13 A RMS 26 A RMS
EN Drive
Command Connection (J5)
AC Power Input (J1)
Feedback Connection (J7)
Drive Reset Button
Bus Power Connection (J2)
Auxiliary Power Connection (J3)
Motor Power Connection (J8)
Input/Output Terminals (J6)
Status Display
Analog Output Test Points
Function Module Connection
Serial Communications Connection (J4)
