EN Drive Installation Manual
NT Motor Dimensions
NTE-207 and 212 Motors; English Face (NEMA 23 with 3/8 inch shaft)
Note
Mounting ears have clearance for #10 or M5 Allen head screw or .3125" or 8mm across
flats hex nut.

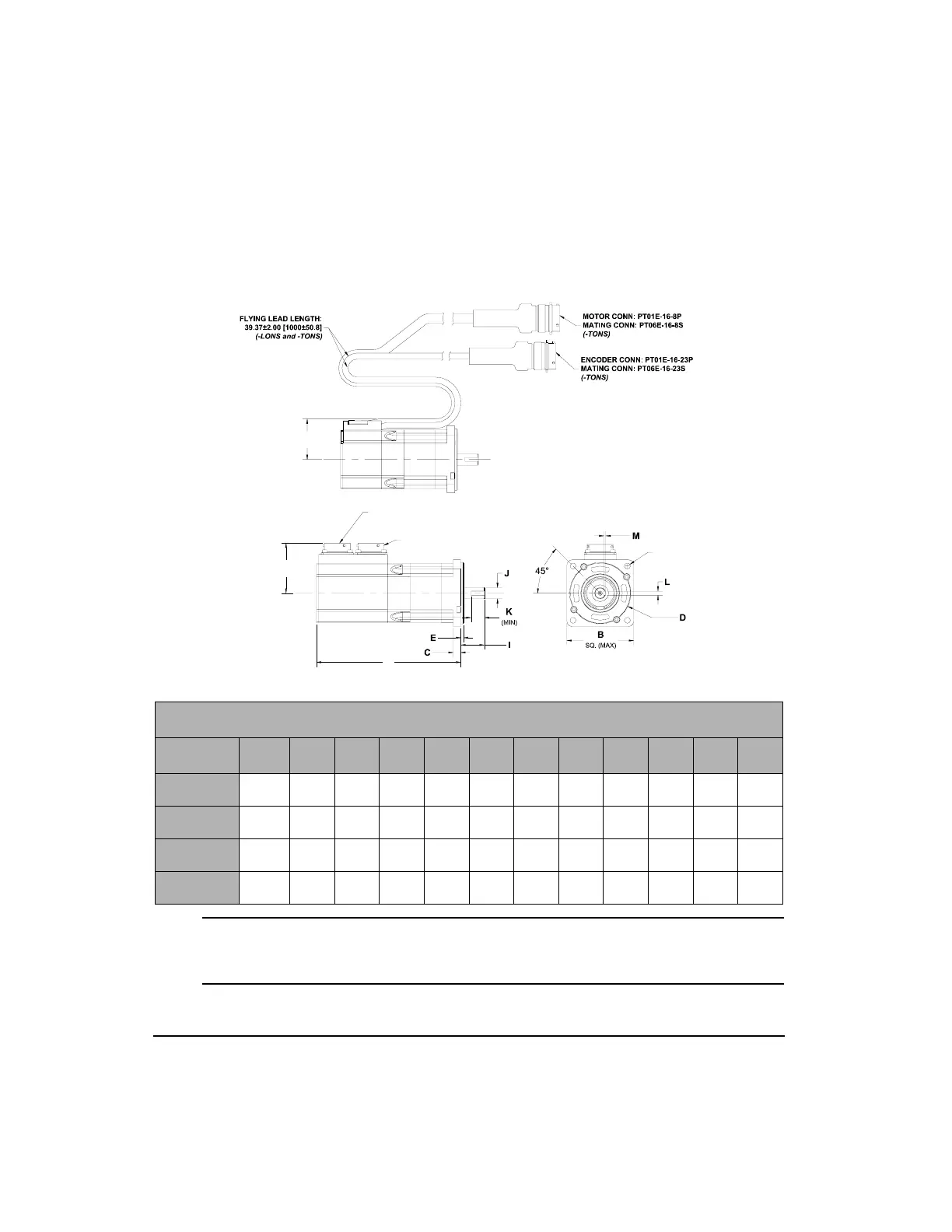

NTE-207, 212 -CONS,TONS and LONS Mounting Dimensions
inches (mm)
A B C
D
Max
E F G
I
Max
J
Max
K
Min
L
Min
M
Min
207-CONS
5.55
(140.96)
2.27
(57.66)
0.295
(7.49)
1.50
(38.10)
0.10
(2.54)
0.205
(5.21)
2.625
(66.68)
1.21
(30.73)
0.375
(9.525)
0.70
(17.78)
0.1248
(3.17)
0.075
(1.905)
207-TONS/
LONS
4.390
(111.51)
2.27
(57.66)
0.295
(7.49)
1.50
(38.10)
0.10
(2.54)
0.205
(5.21)
2.625
(66.68)
1.21
(30.73)
0.375
(9.525)
0.70
(17.78)
0.1248
(3.17)
0.075
(1.905)
212-CONS
6.555
(166.36)
2.27
(57.66)
0.295
(7.49)
1.50
(38.10)
0.10
(2.54)
0.205
(5.21)
2.625
(66.68)
1.21
(30.73)
0.375
(9.525)
0.70
(17.78)
0.1248
(3.17)
0.075
(1.905)
212-TONS/
LONS
5.39
(136.91)
2.27
(57.66)
0.295
(7.49)
1.50
(38.10)
0.10
(2.54)
0.205
(5.21)
2.625
(66.68)
1.21
(30.73)
0.375
(9.525)
0.70
(17.78)
0.1248
(3.17)
0.075
(1.905)
1.780 [45.21]
MAX
1.925 [48.89]
MAX
A
ENCODER CONN: PT02E-16-23P
MATING CONN: PT06E-16-23S
(-CONS)
MOTOR CONN: PT02E-16-8P
MATING CONN: PT06E-16-8S
(-CONS)
F
DRILLED
THRU (4) EQUALLY
SPACED ON
G
