19
Installation

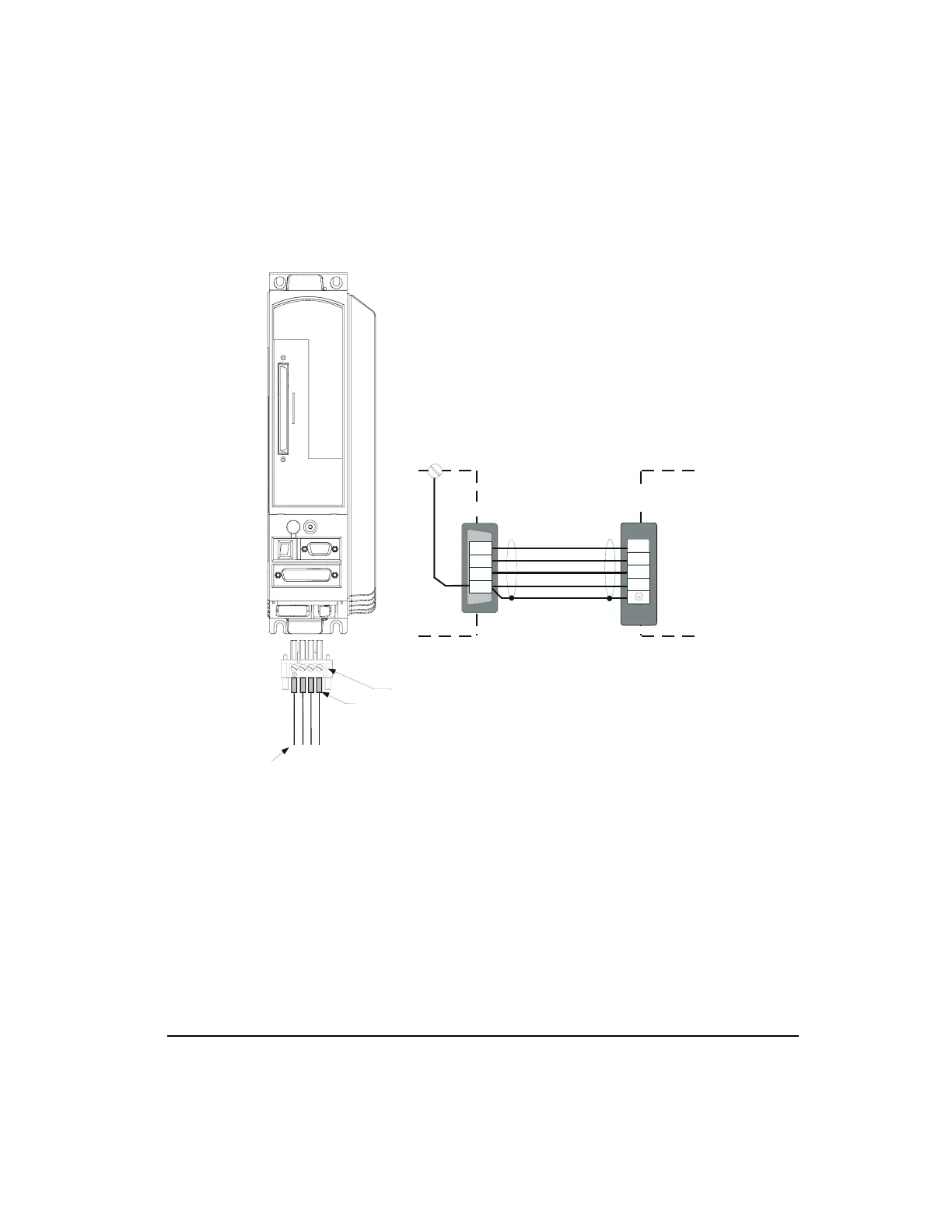

Figure 14: EN Motor Power Wiring Diagram
RST
Wire crimp ferrules are recommended:
If 14 to 16 AWG, use panduit #PV14-P47.
If 12 AWG, use Panduit #PV10-P55.
Tighten screws to 5 lb-in.
Important:
Ground should connect to drive and
motor only. Nothing should be connected
between these devices.
Front View
Connector Shell
R
S
T
Ground
Motor Power
Connection
Drive
PE
S
B
Shield
Green/Yellow
Black
T
C
Blue
2" or 3" Motors: PT06A-15-8SSR
4" Motors: MS3106A-20-15SSR
D
R
Brown
A
GND
