99
Installation

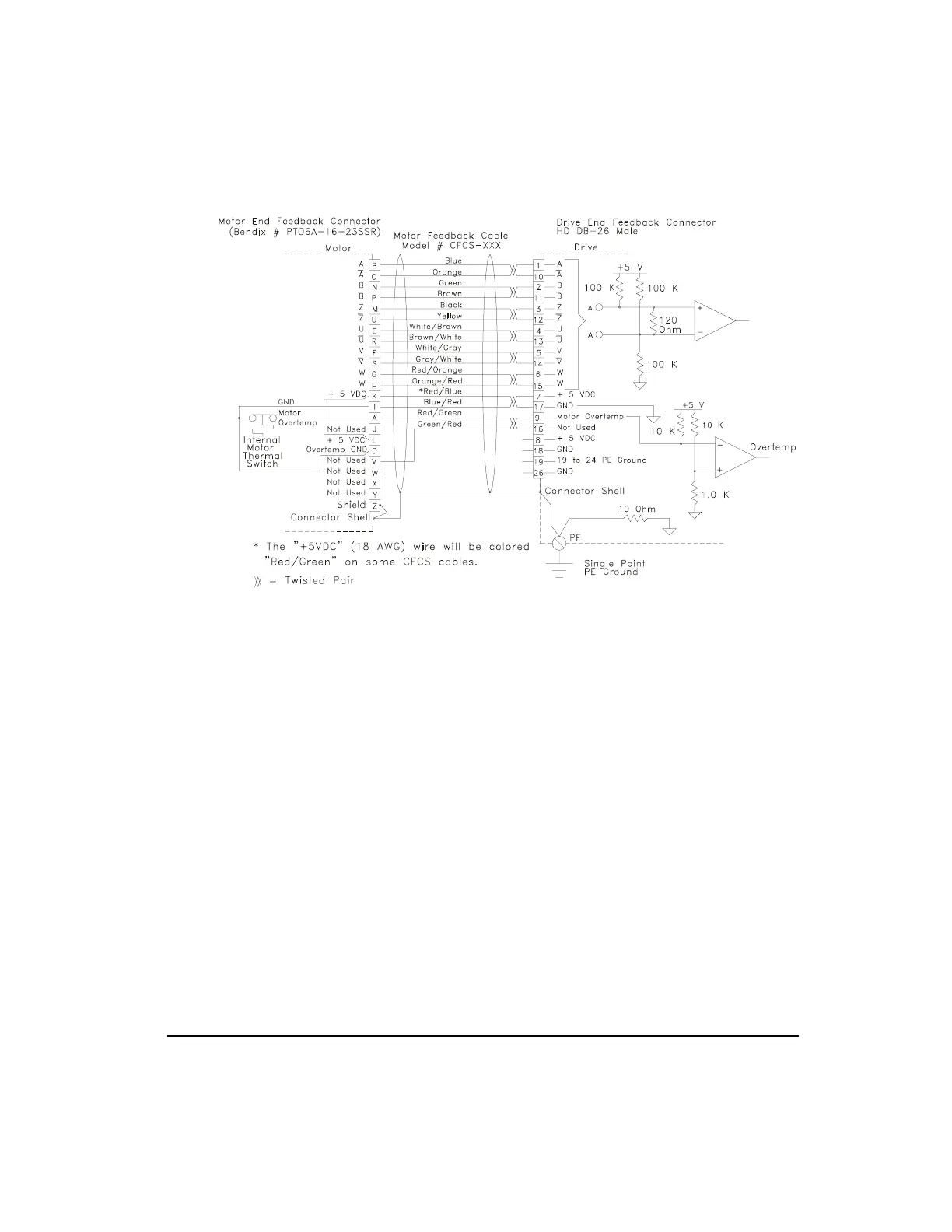

Figure 68: Motor Feedback Connector Pinout
Motor Brake Wiring
Motors equipped with brakes have a three-pin MS style connector. The brake power cable
(model CBMS-XXX) has an MS style connector on the motor end and three wire leads on the
amplifier end (see the following wiring diagrams).
You must provide a DC power supply rated at +24 VDC with a 2 amp minimum current
capacity for the brake. If you use this voltage source to power other accessories such as I/O
or more than one brake, you must increase its current capability.
